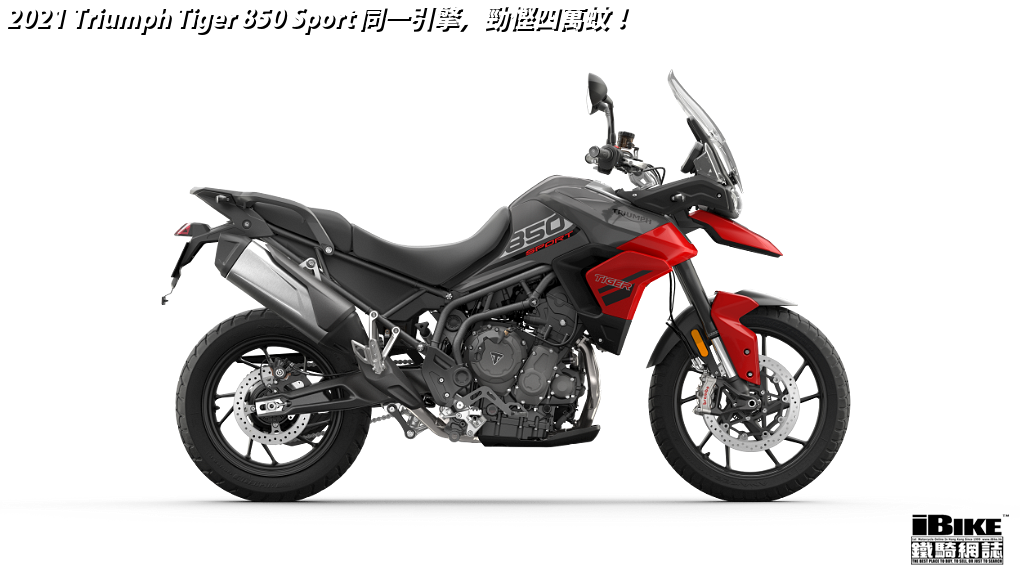

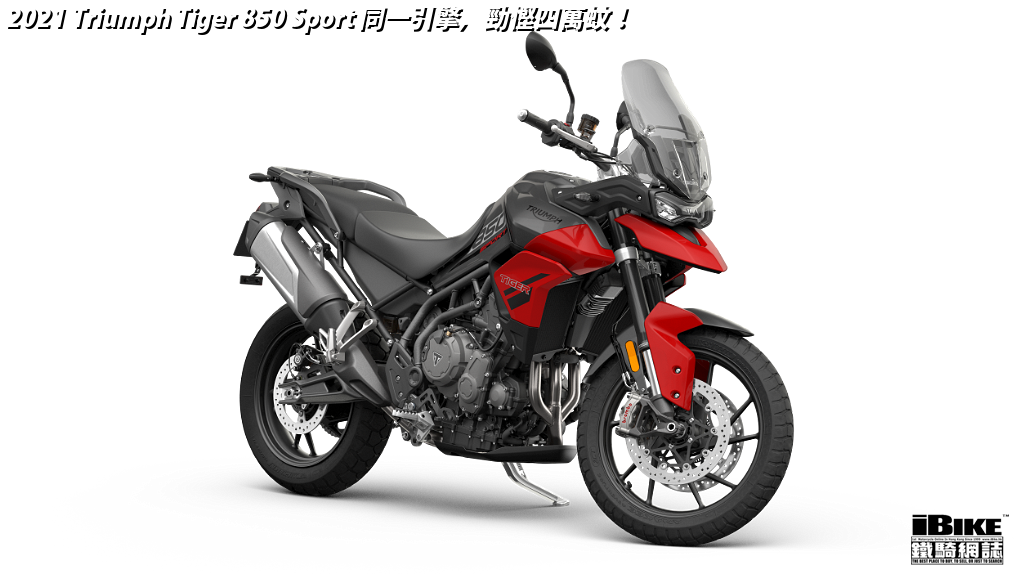

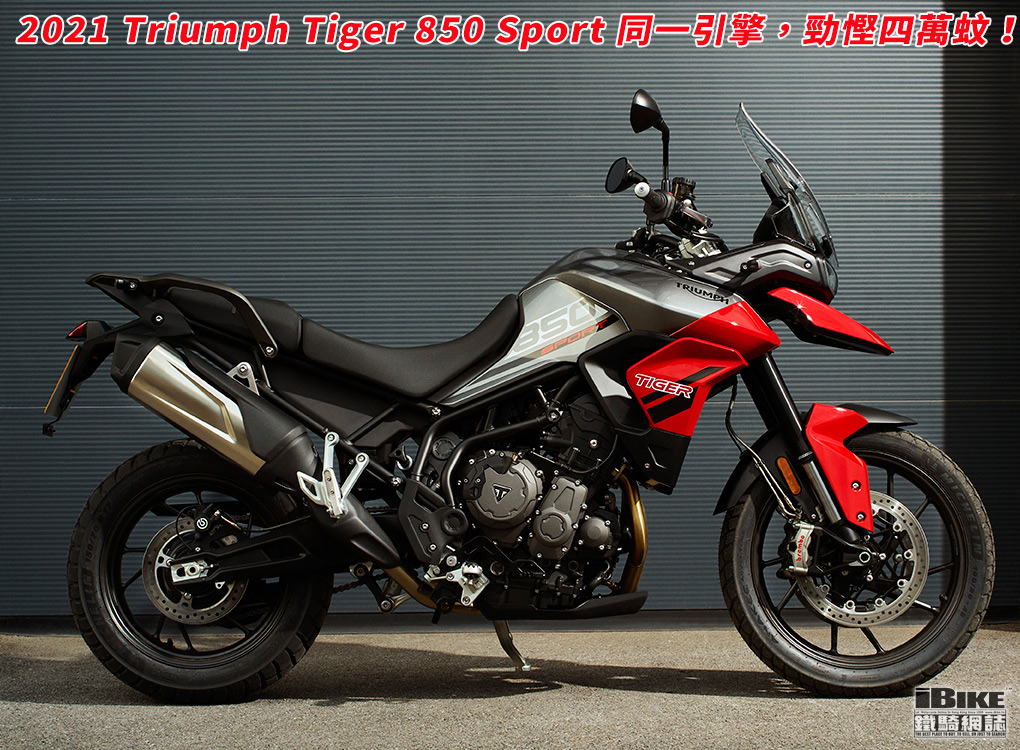

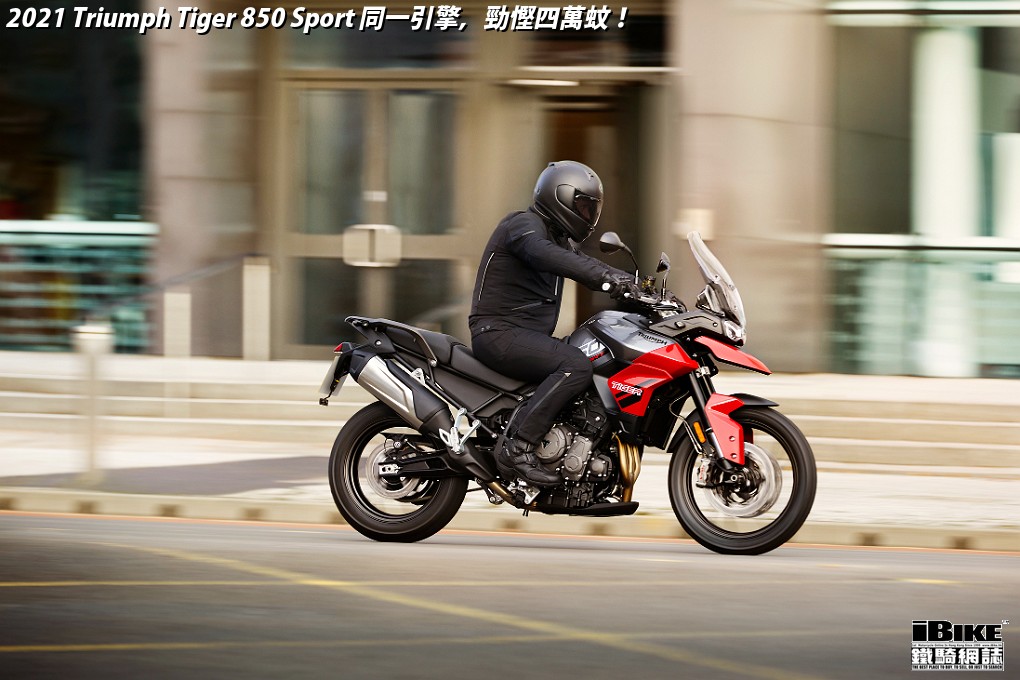

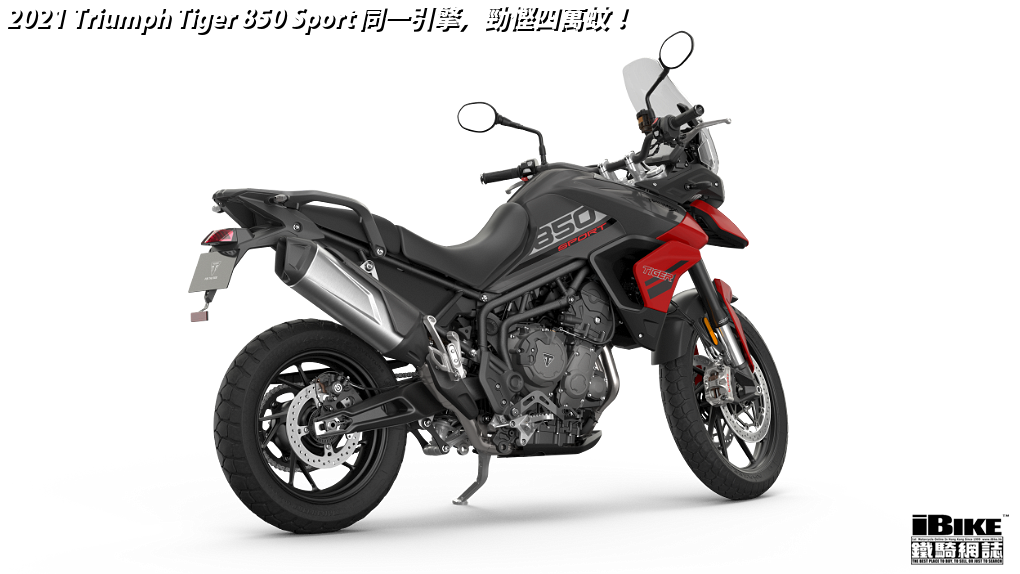

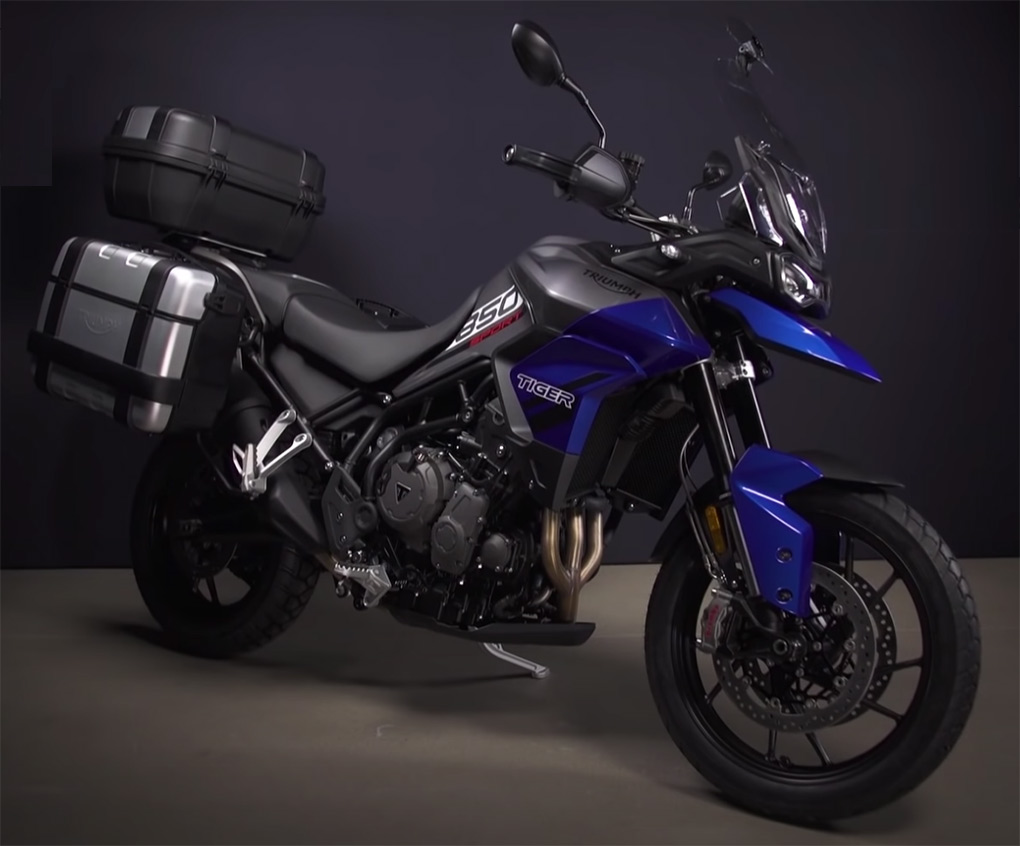

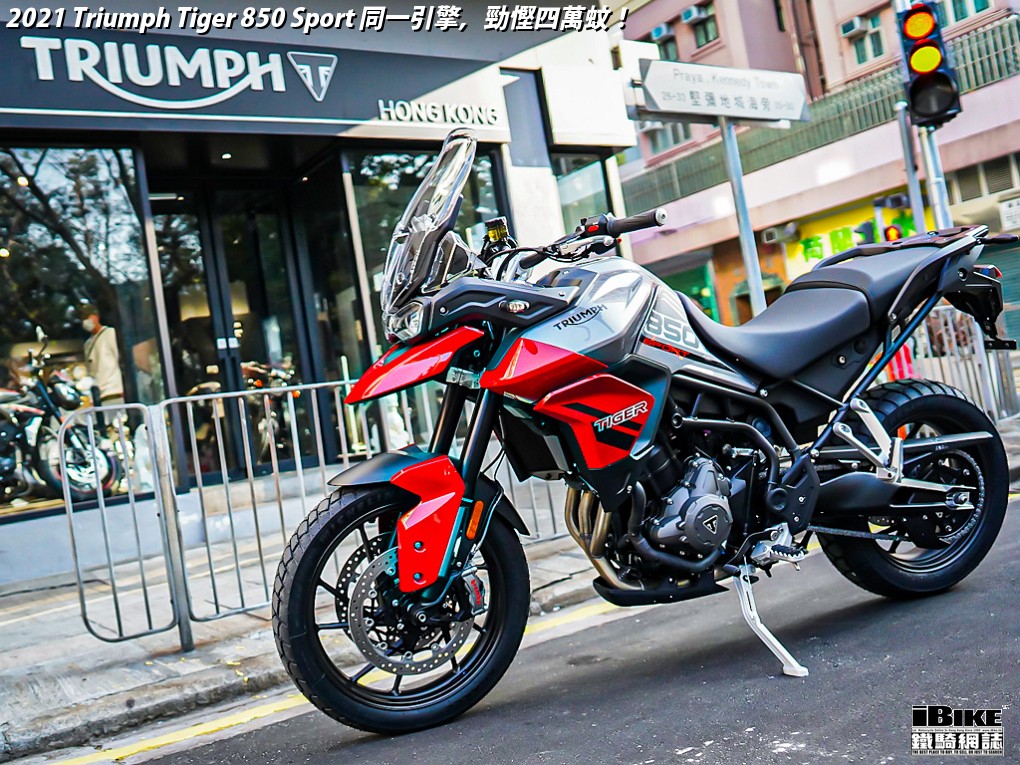

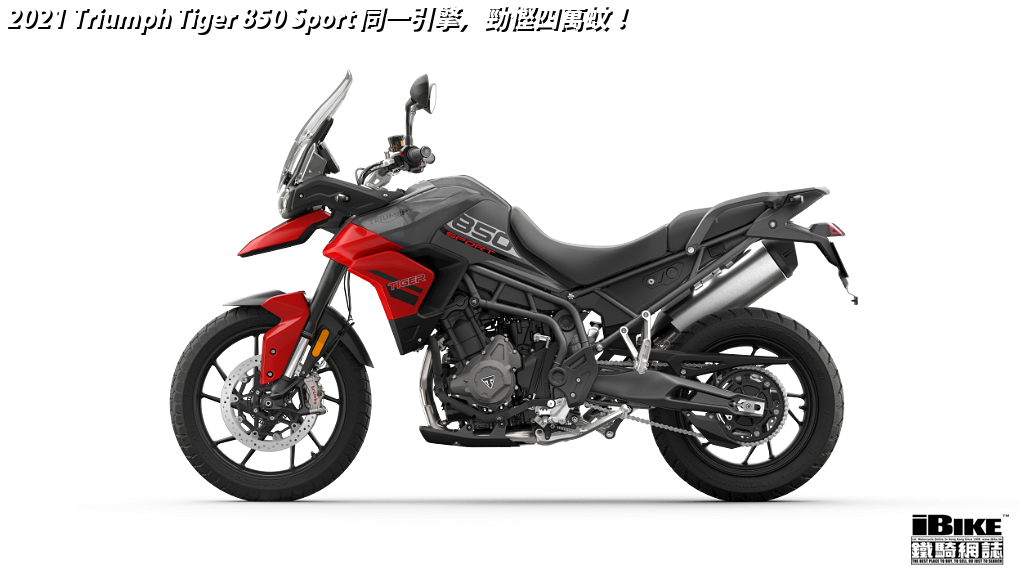

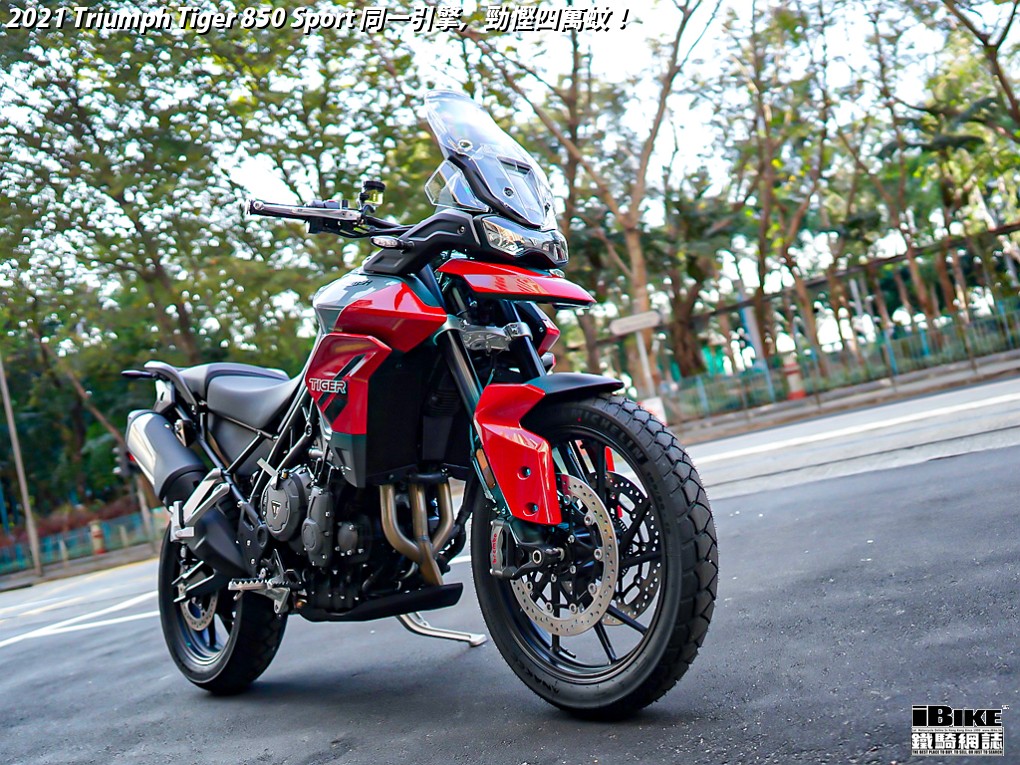

TIGER 850 SPORT

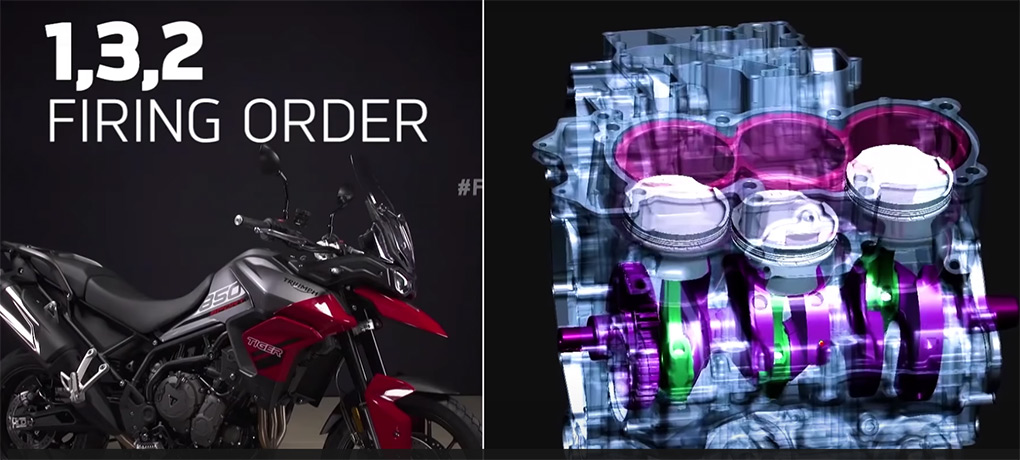

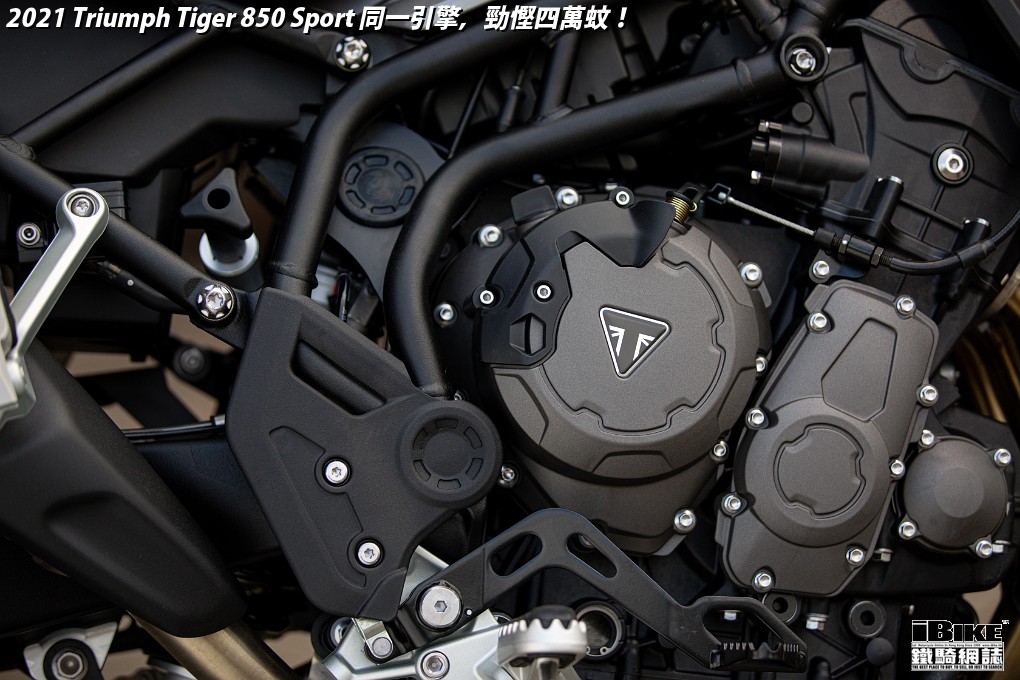

Liquid-cooled, 12 valve, DOHC, inline 3-cylinder
Capacity 888 cc Bore 78.0 mm Stroke 61.9 mm
Compression 11.27:1

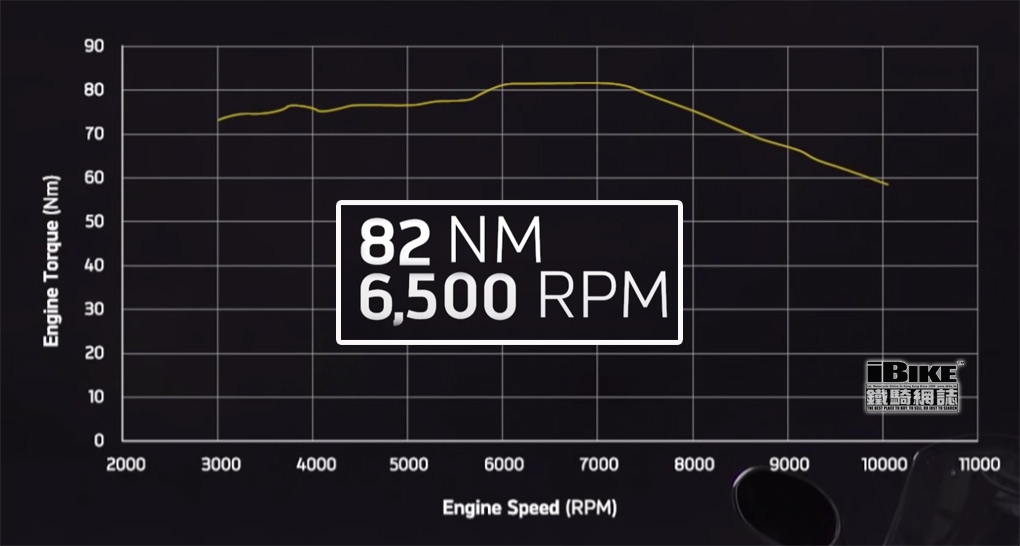

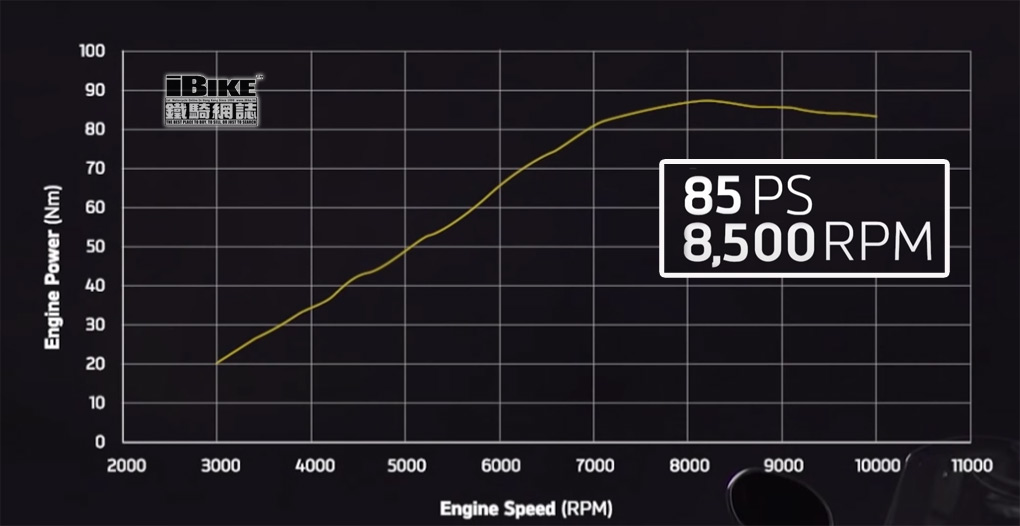

Max Power 85 PS @ 8,500 rpm Max Torque 82 Nm @ 6,500
rpm Multipoint sequential electronic fuel injection

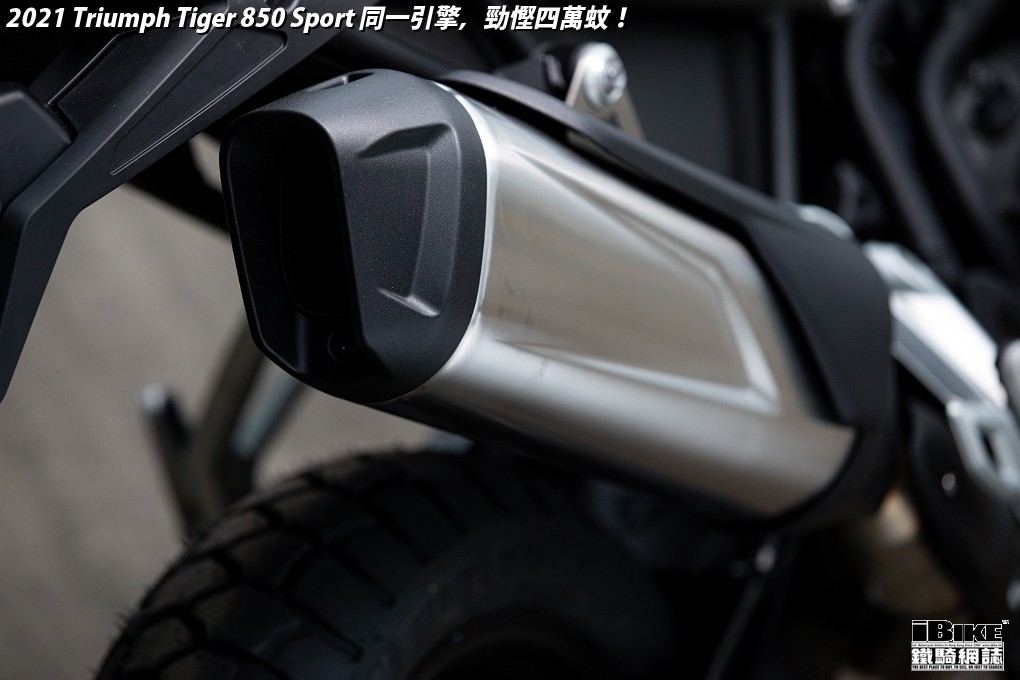

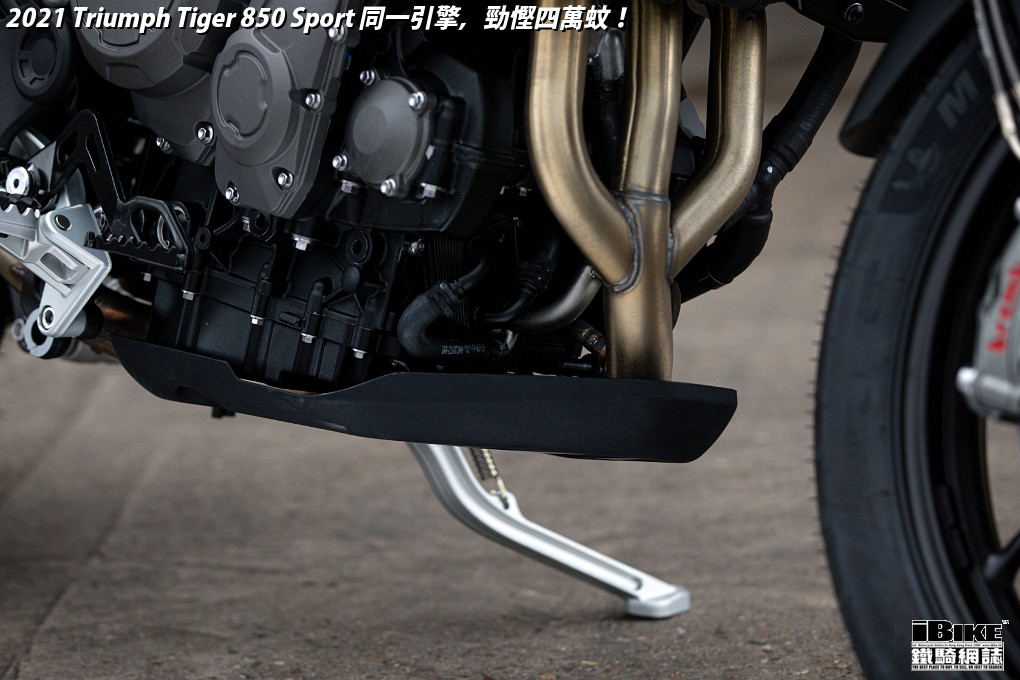

Stainless steel 3 into 1 header system, side mounted
stainless steel silencer

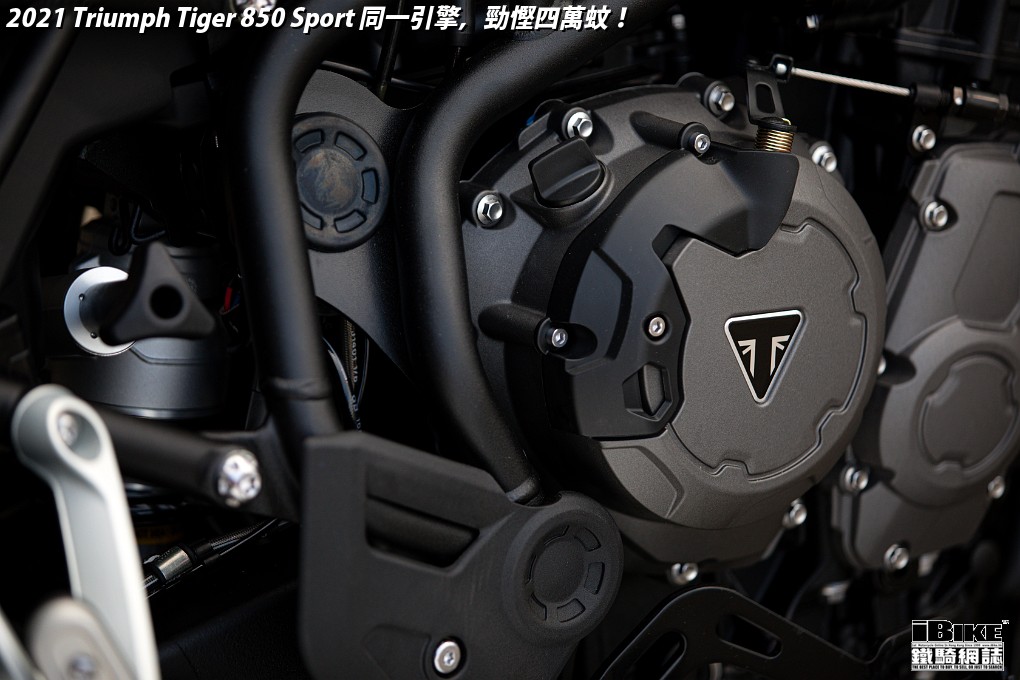

Final Drive O-ring chain Clutch Wet, multi-plate,
slip Tubular steel frame, bolt on sub frame Swingarm

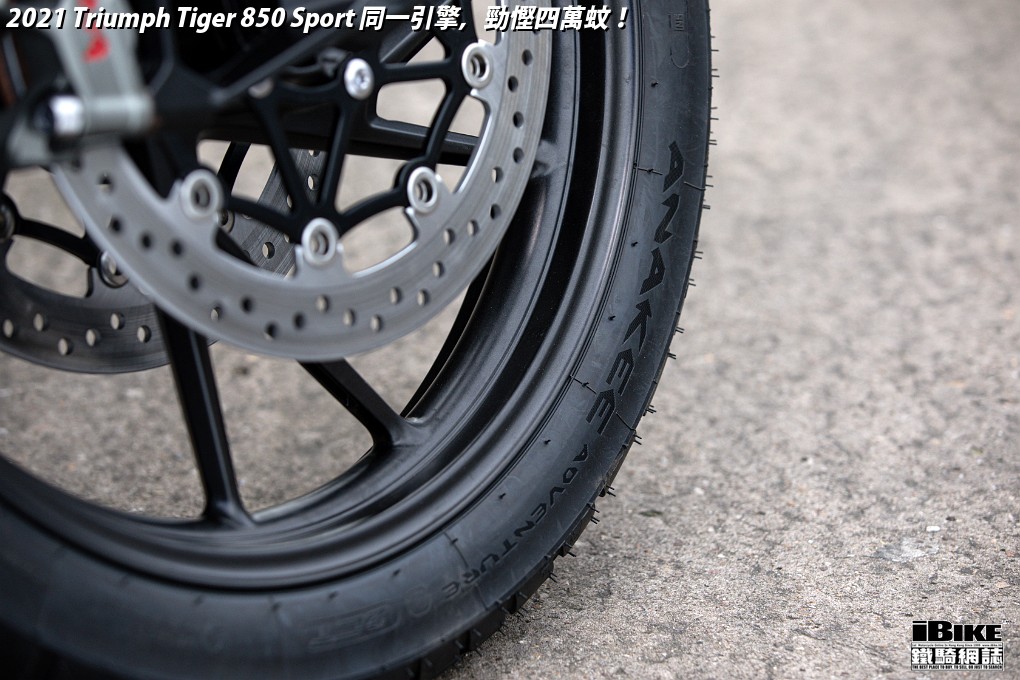

Twin-sided, cast aluminium Front Wheel Cast alloy, 19 x
2.5 in Rear Wheel Cast alloy, 17 x 4.25 in Front Tyre

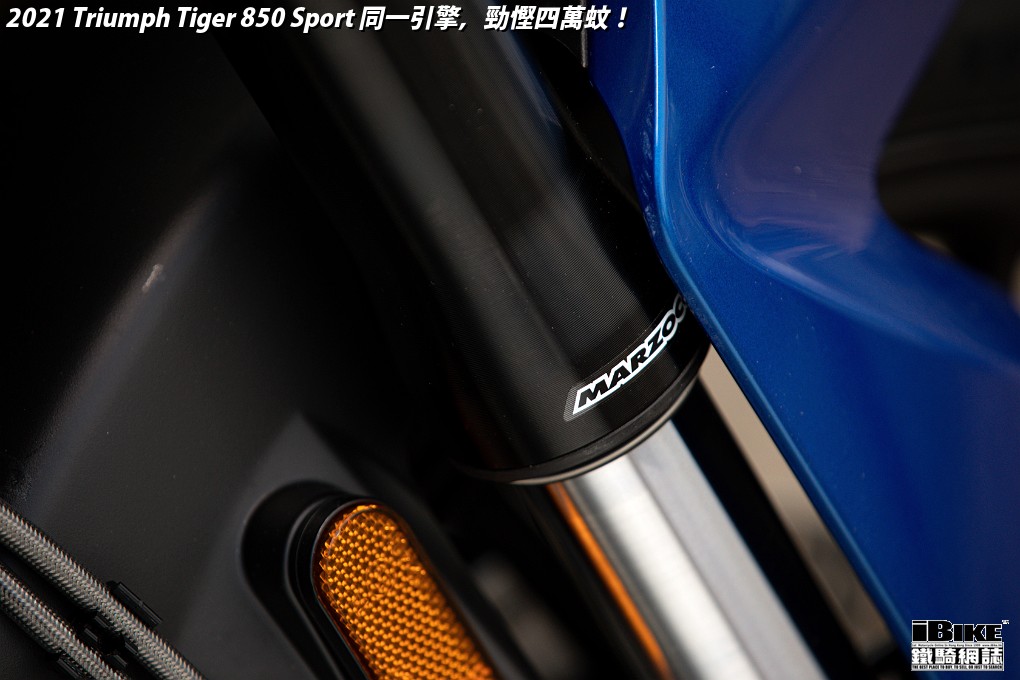

100/90-19 Rear Tyre 150/70R17 Marzocchi 45mm upside

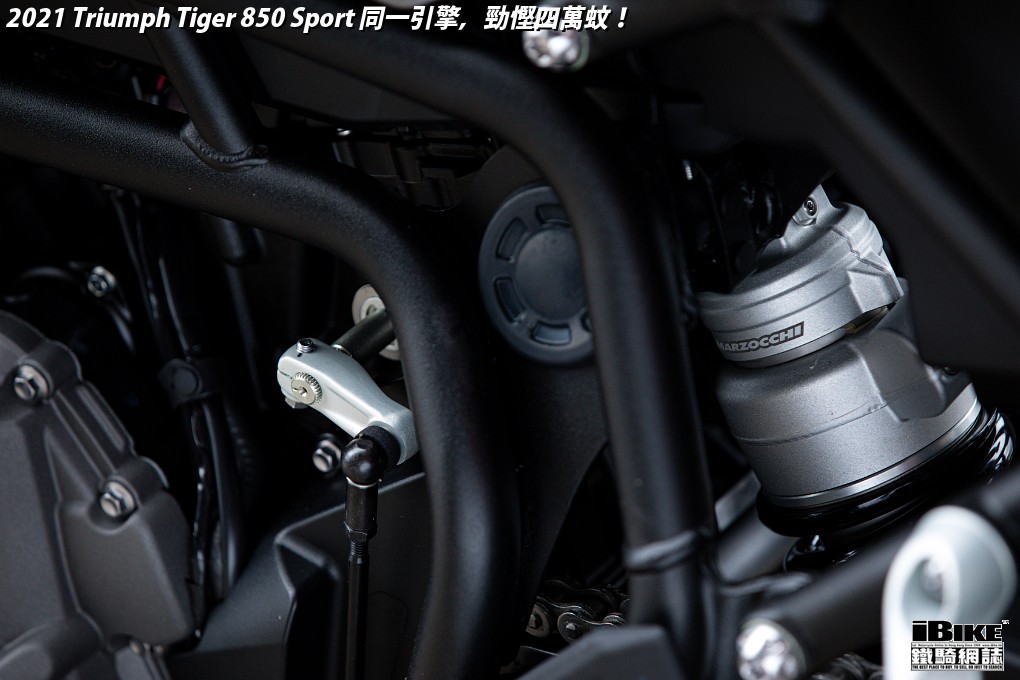

down forks Marzocchi rear suspension unit, manual
preload adjustment

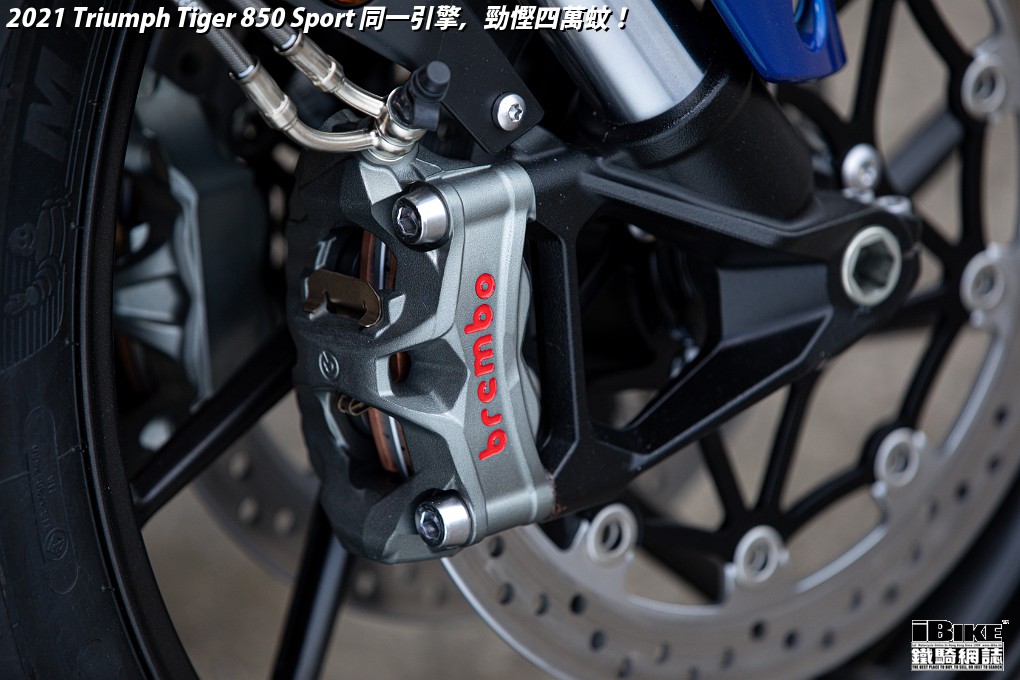

Brembo Stylema 4 piston Monobloc calipers. Twin 320mm
floating discs, Radial front master cylinder, ABS

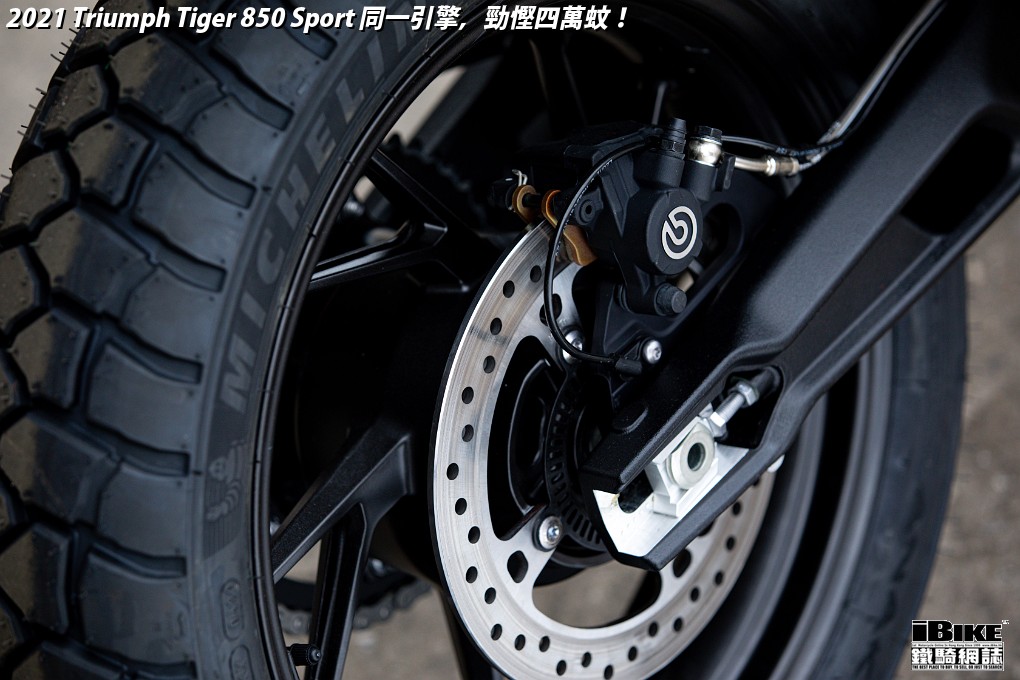

Brembo single piston sliding caliper, ABS Single 255mm

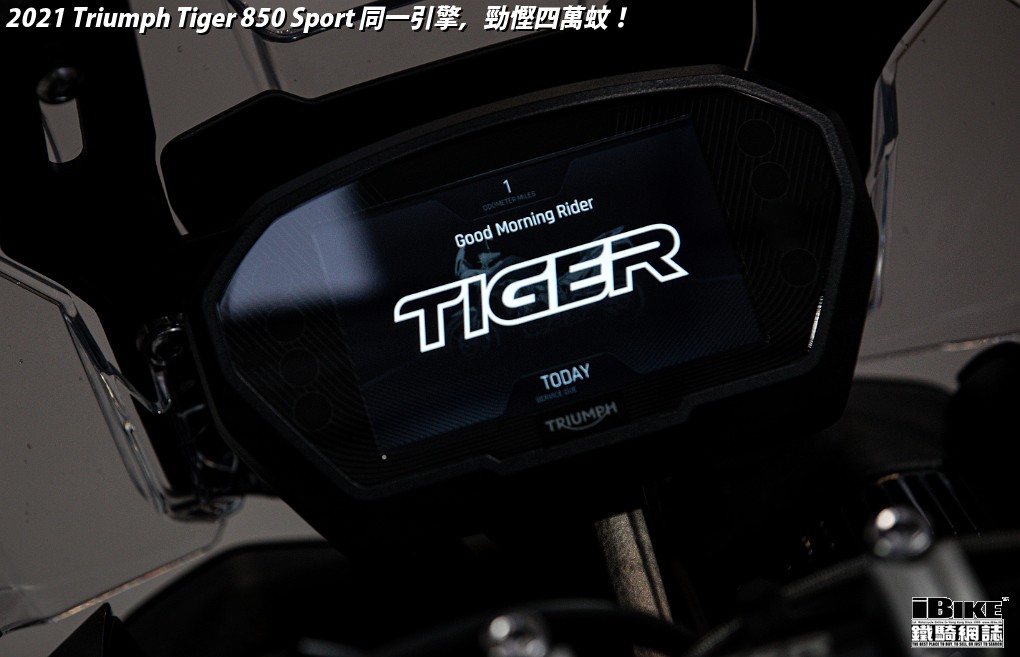

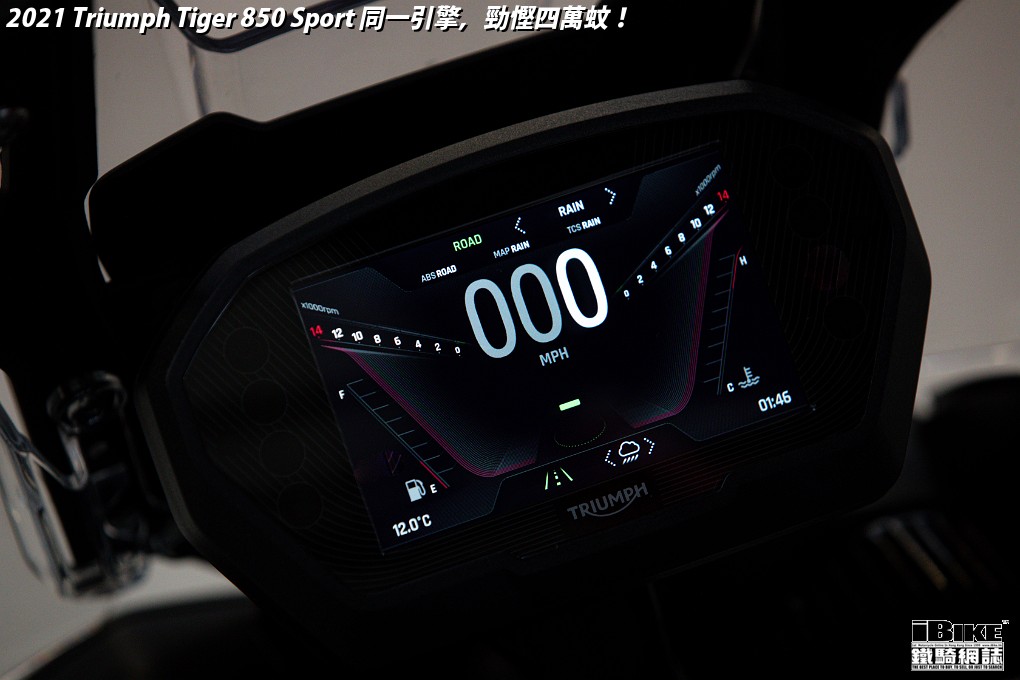

disc. 5" TFT screen

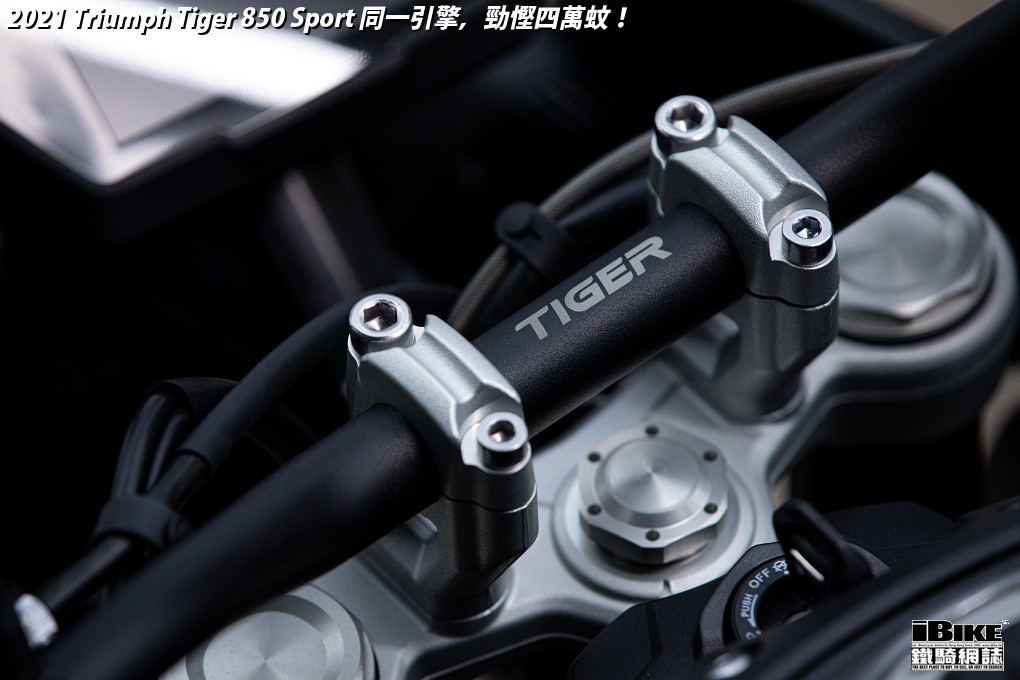

Width Handlebars 830 mm Height Without Mirror 1410-1460

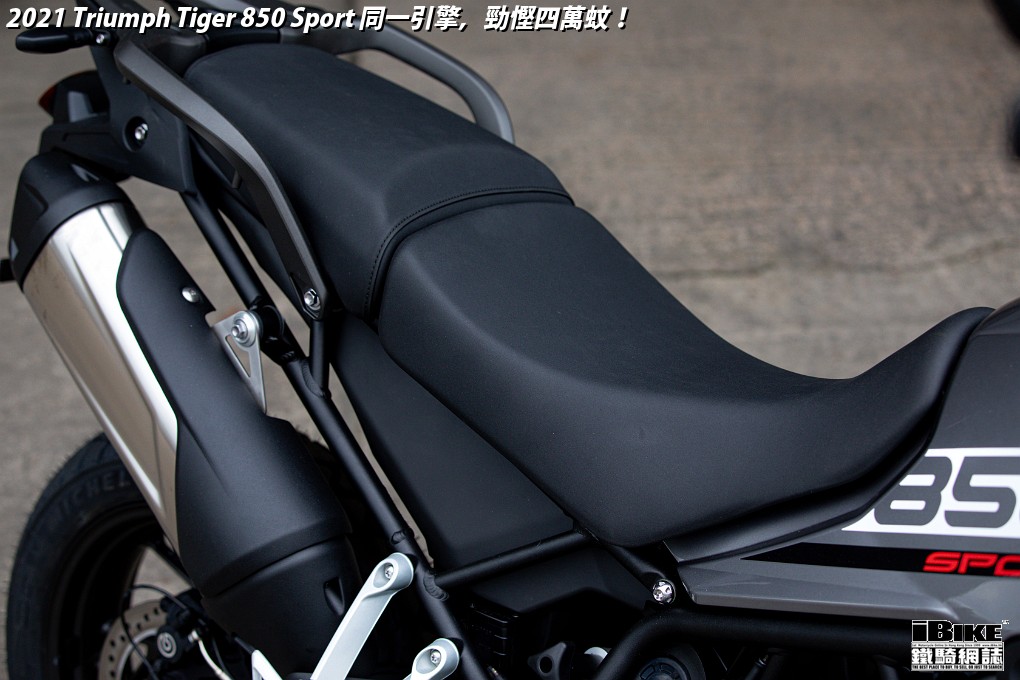

mm Seat Height 810-830 mm Wheelbase 1556 mm Rake
24.6 º Trail 133.3 mm

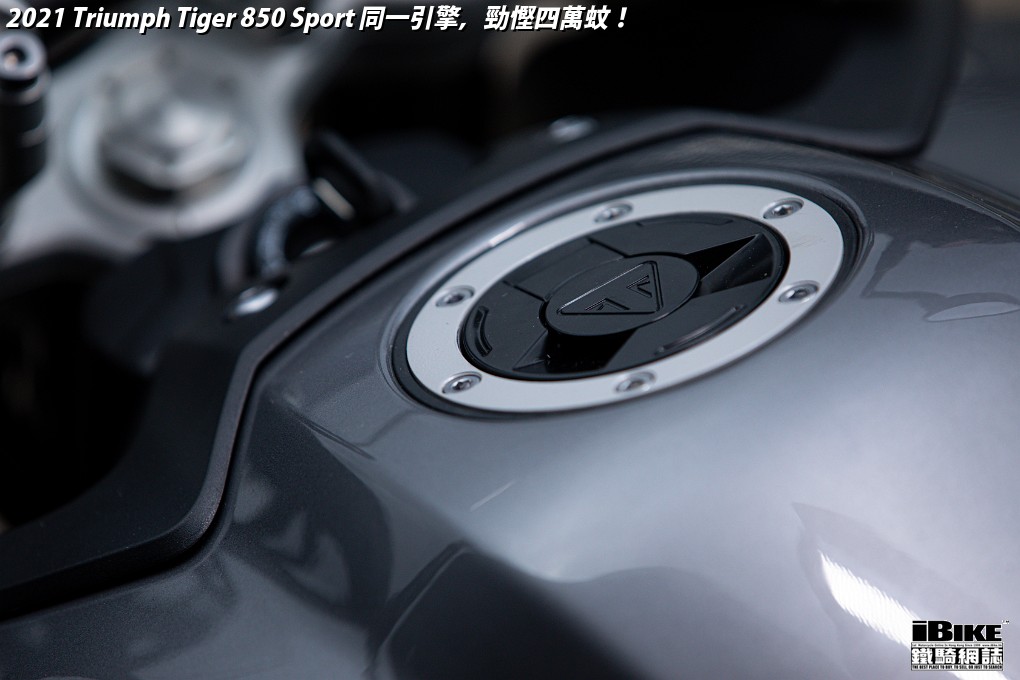

Dry Weight 192 kg Tank Capacity 20 L
|
