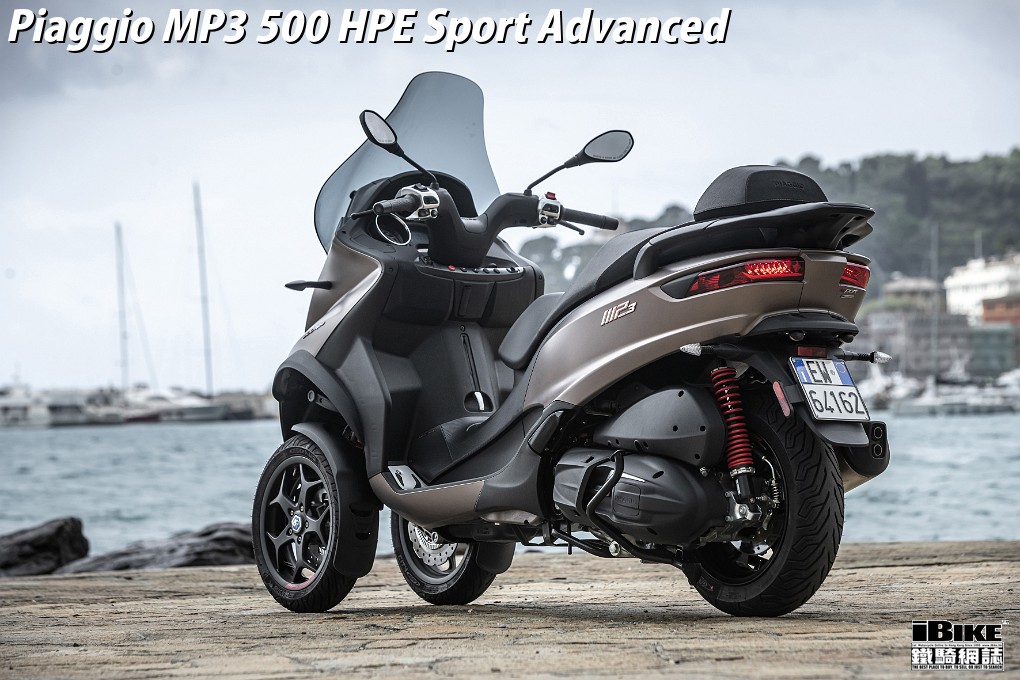

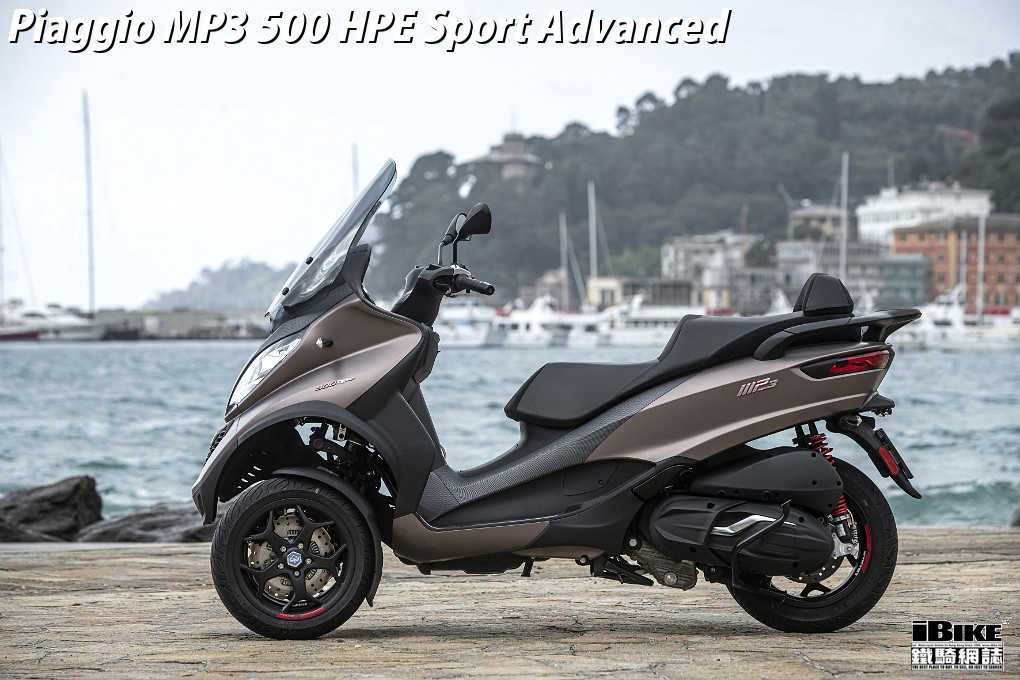

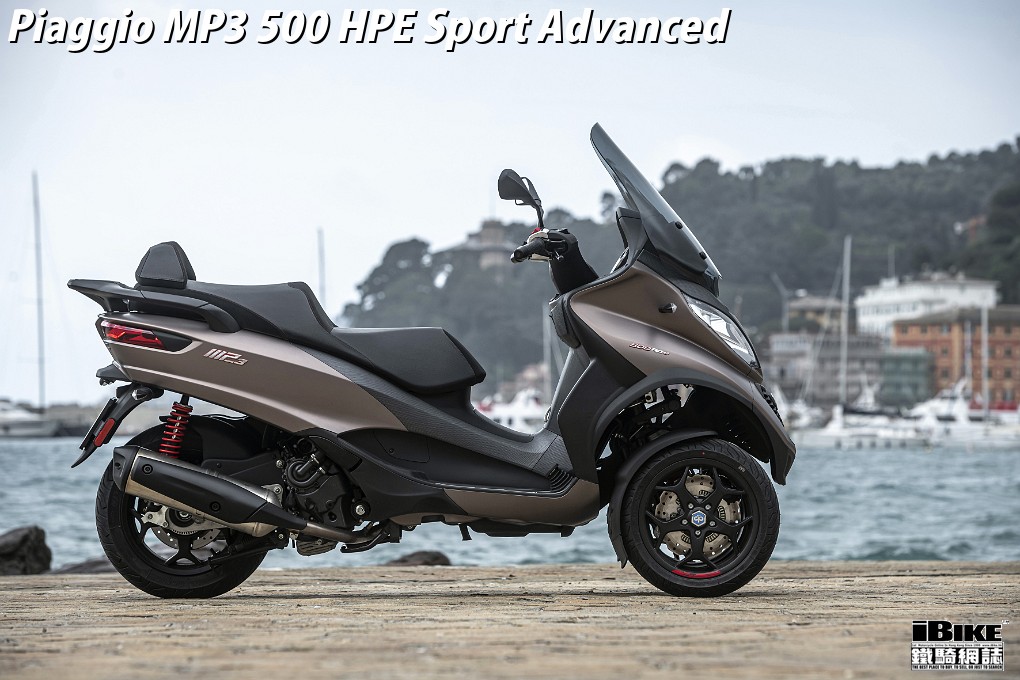

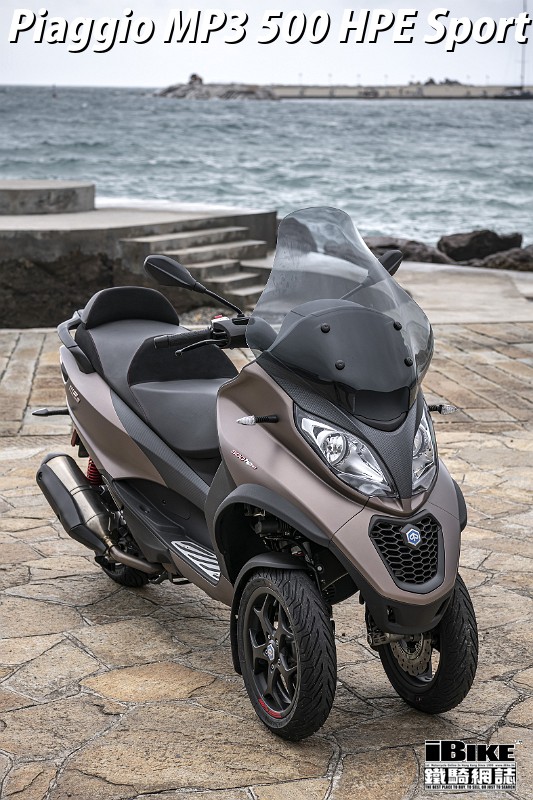

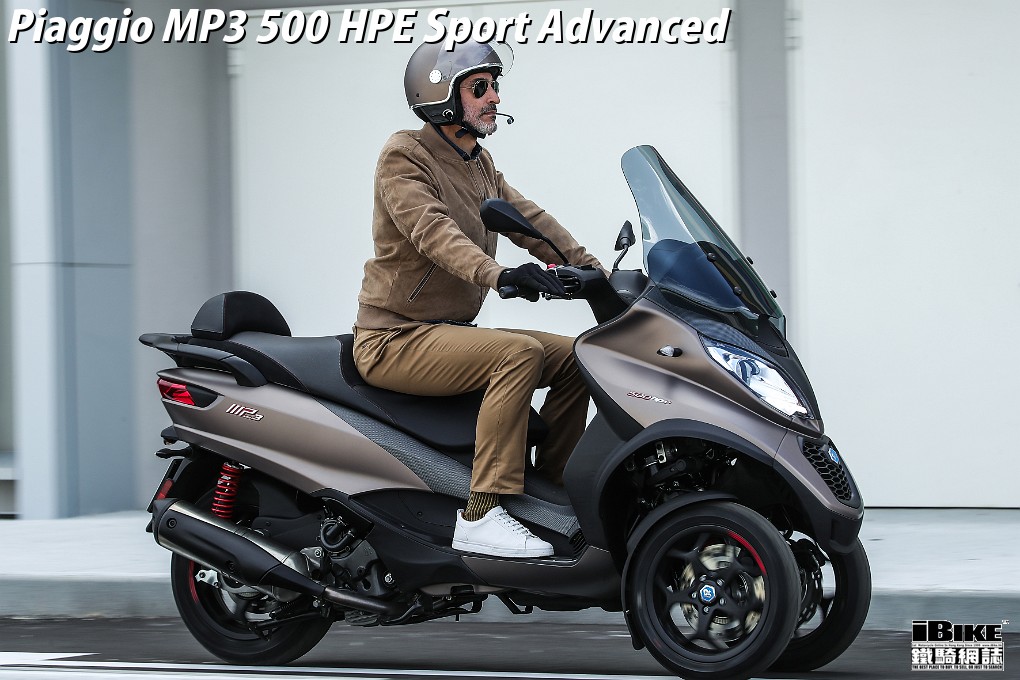

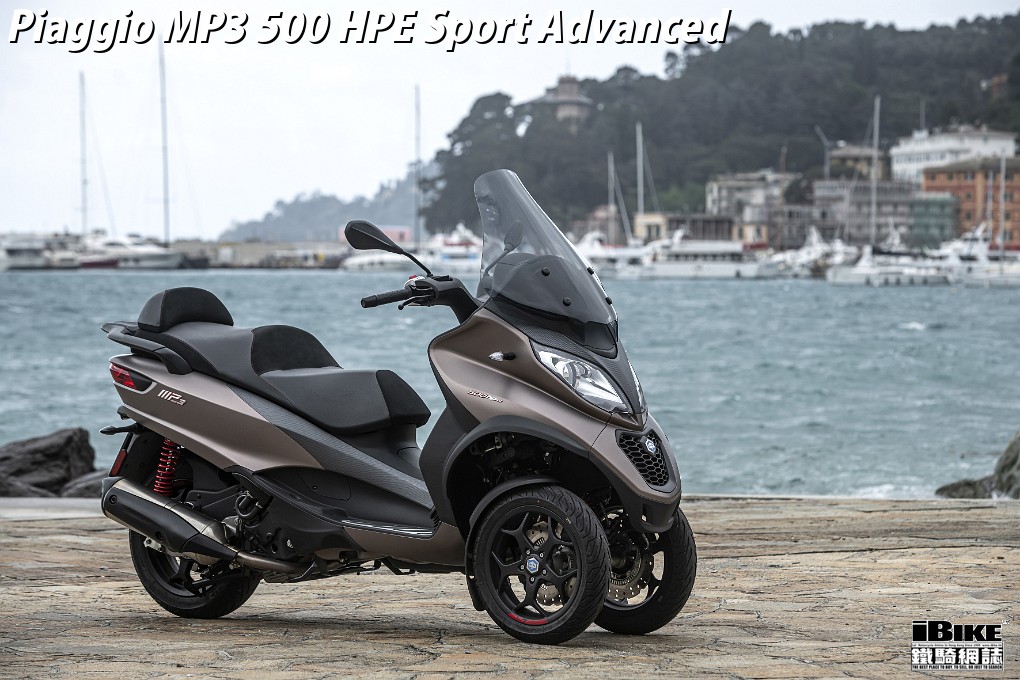

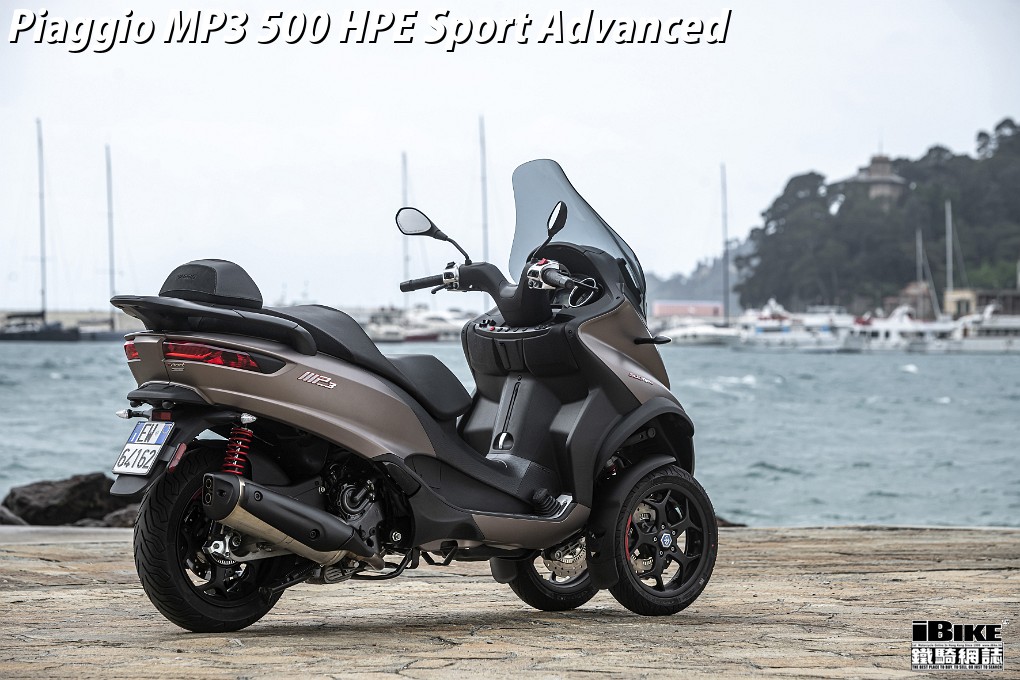

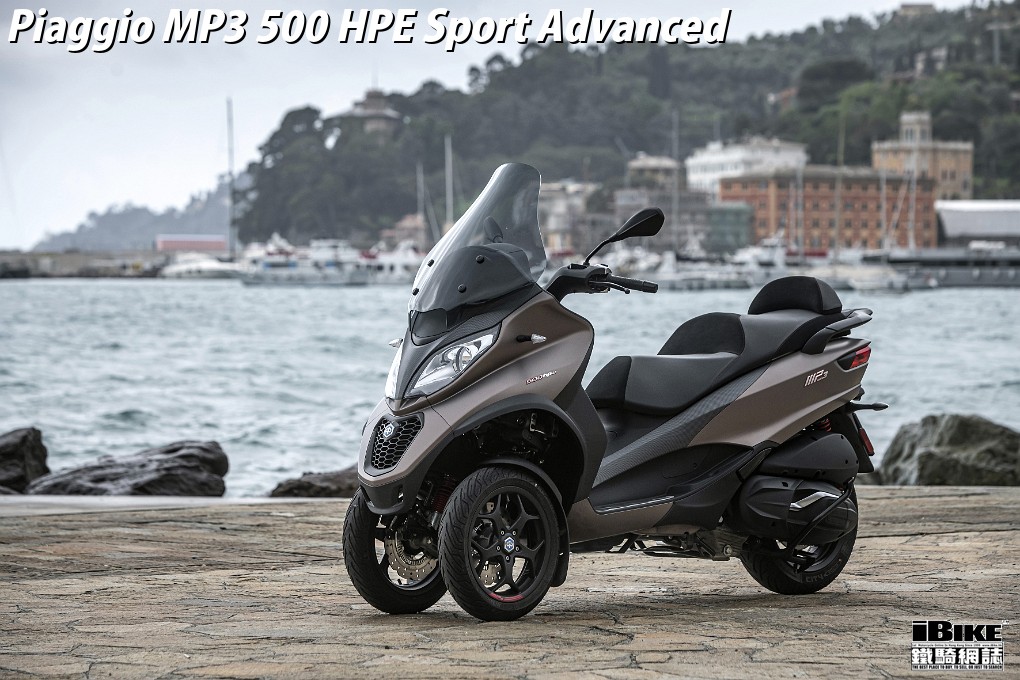

Piaggio MP3 500 hpe Sport
Advanced


493cc
MASTER HPE single-cylinder, 4 stroke Bore x
Stroke 94 x 71 mm Power 32.5 kW (44.2 HP) at 7750 rpm
Torque 47.5 Nm at 5500 rpm Single overhead cam shaft
(SOHC) with 4 valves and roller tappets

Electronic injection Dual map for throttle valve

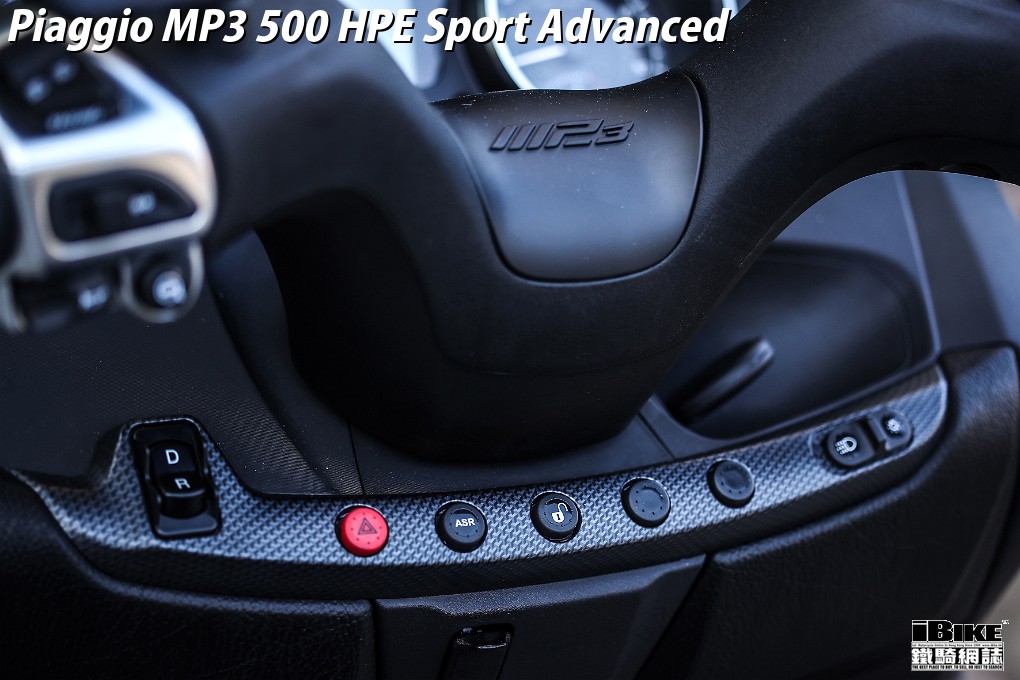

management (STD and ECO). Traction control (ASR)
Cooling Liquid Lubrication Wet sump Starting
Electrical

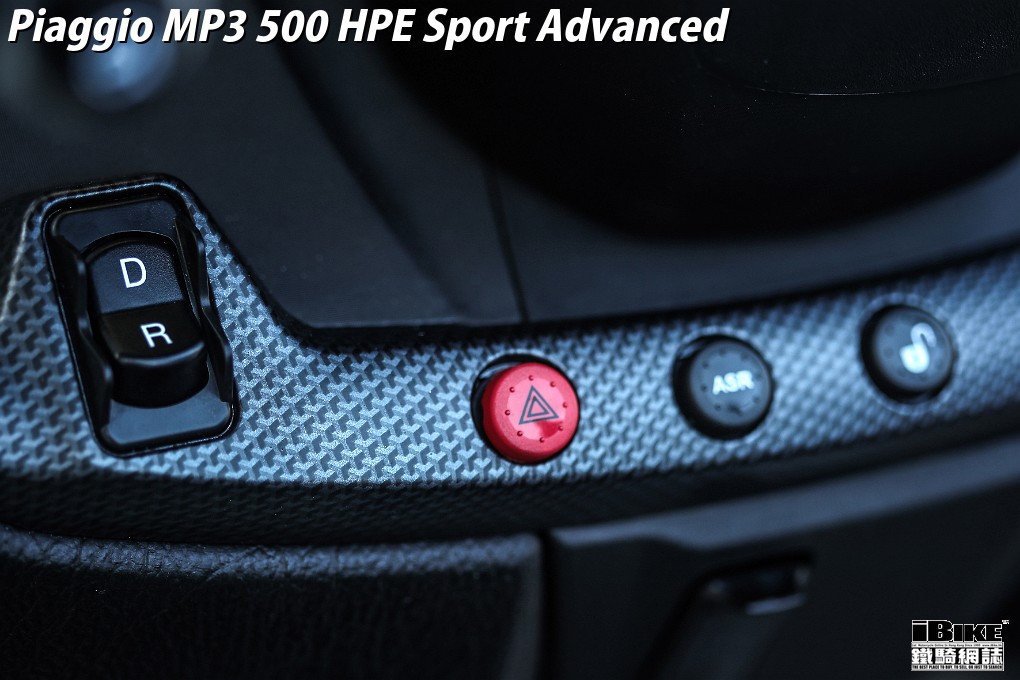

 CVT continuously variable transmission
with torque server and reverse
gear Automatic, centrifugal dry clutch
 Double

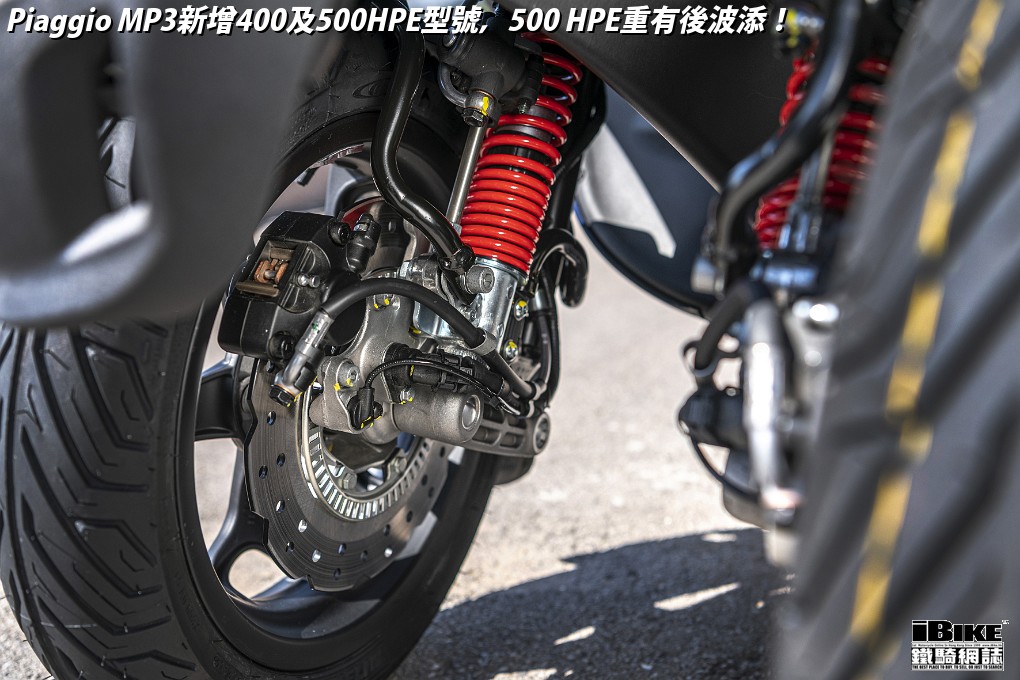

cradle in high strength tubular steel Front suspension
Articulated quadrilateral Stroke: 85 mm.

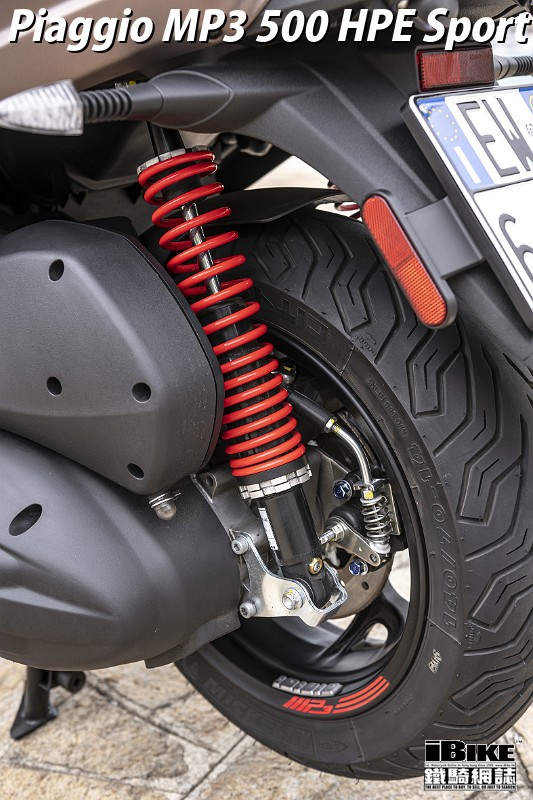

Electro-hydraulic suspension blocking system. Rear

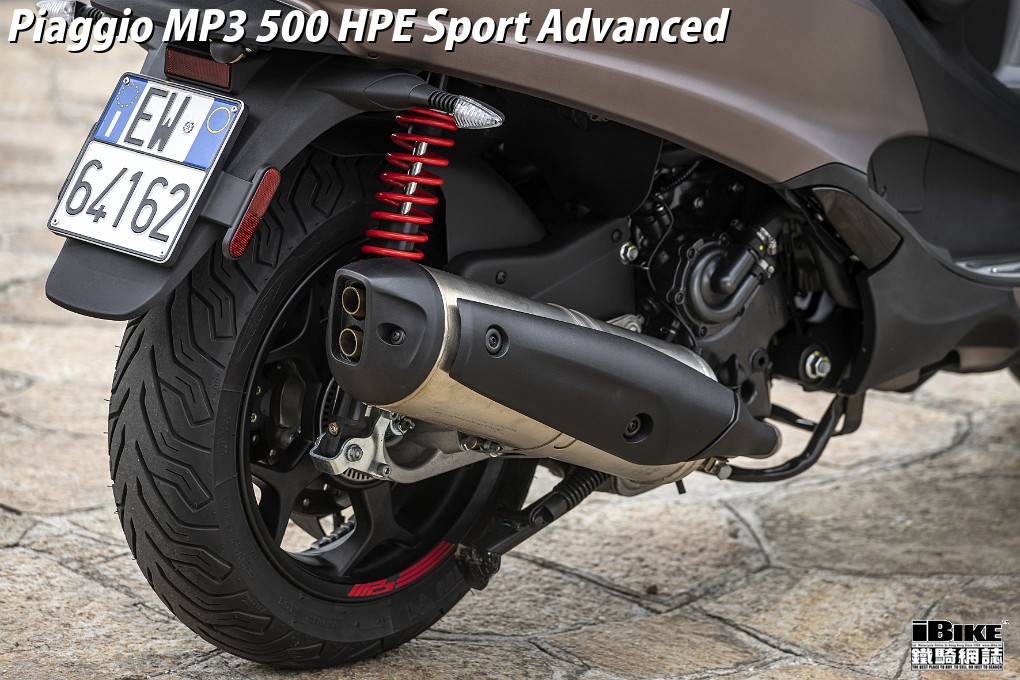

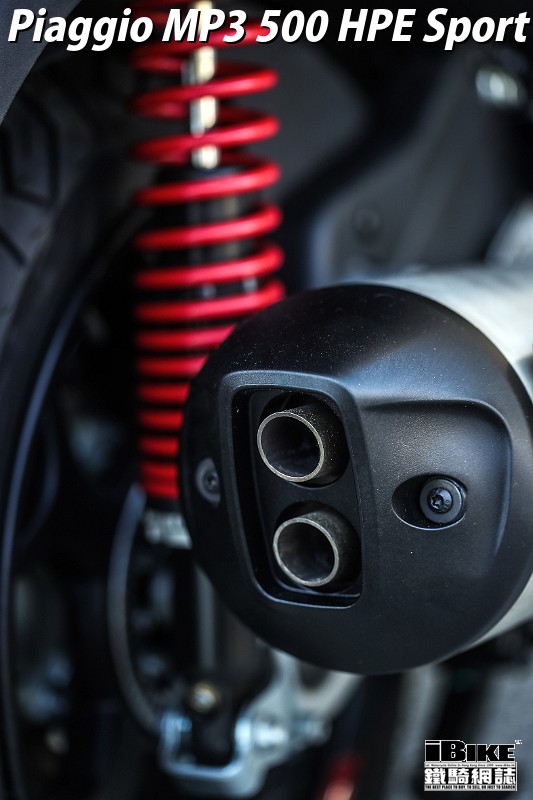

suspension Double gas shock absorber with continuous
spring pre-load adjustment - Stroke: 108 mm

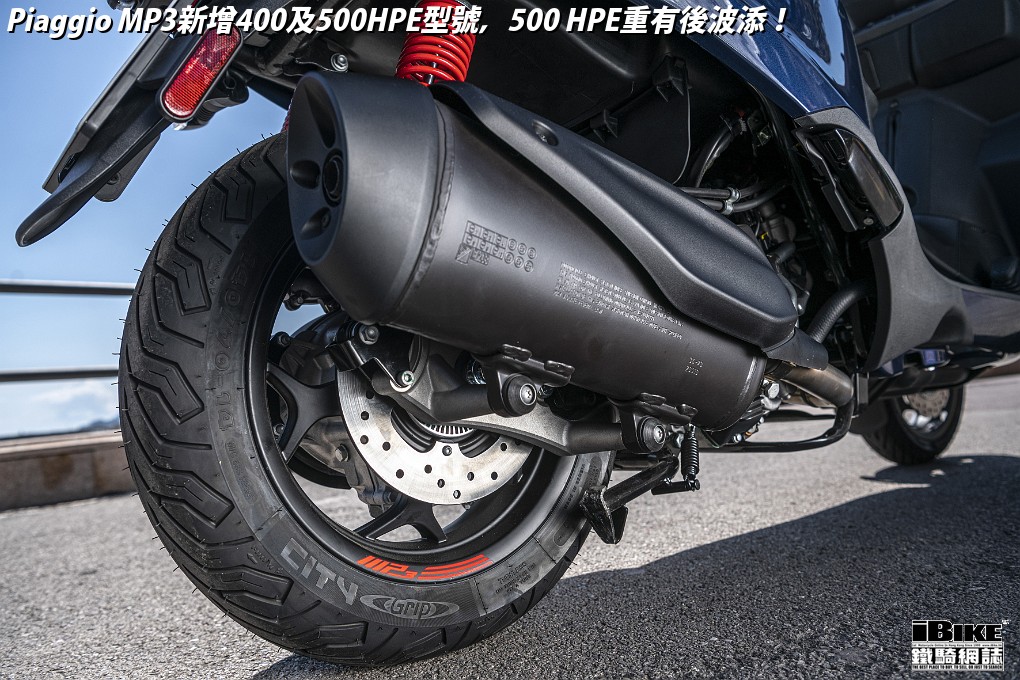

 Front
brakes Two 258 mm discs Rear brake 240 mm disc Front

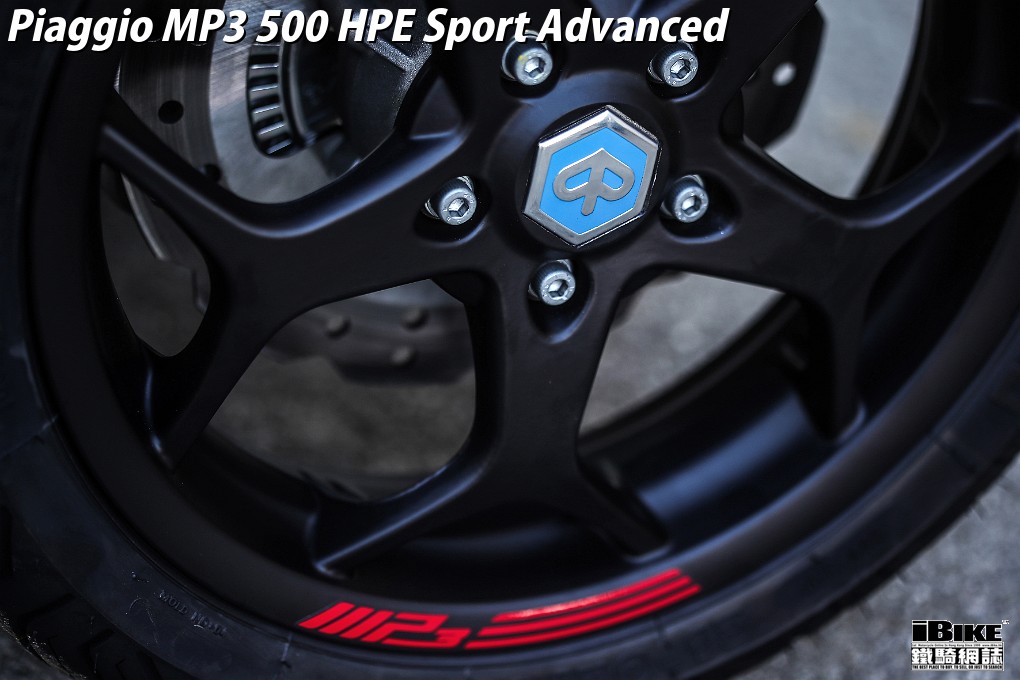

wheel rims Aluminium alloy 13" x 3.00 Rear wheel rim

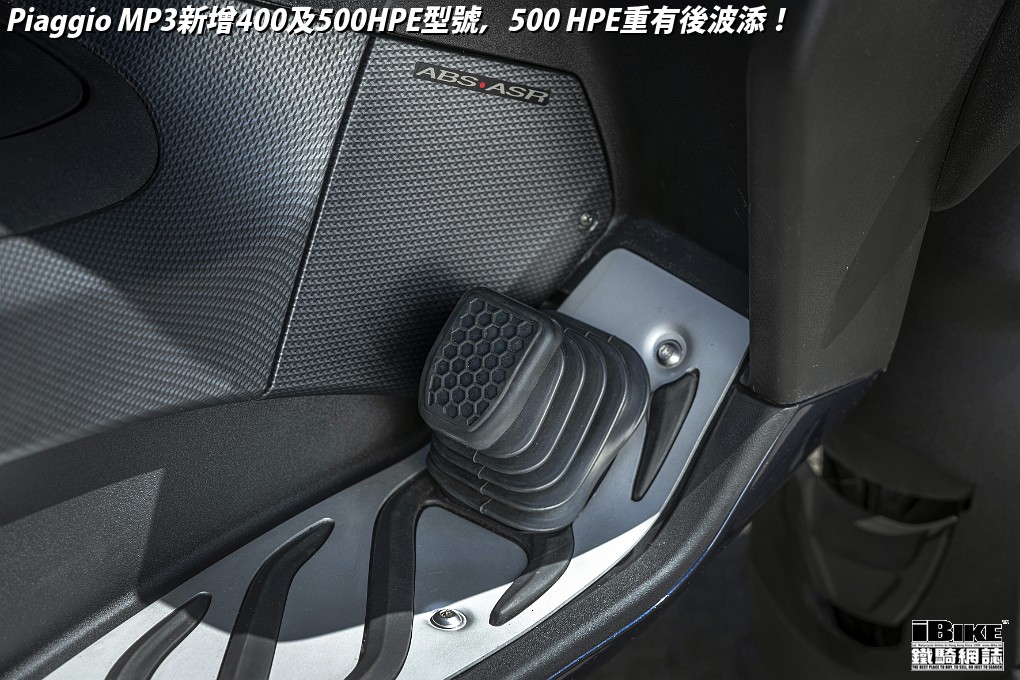

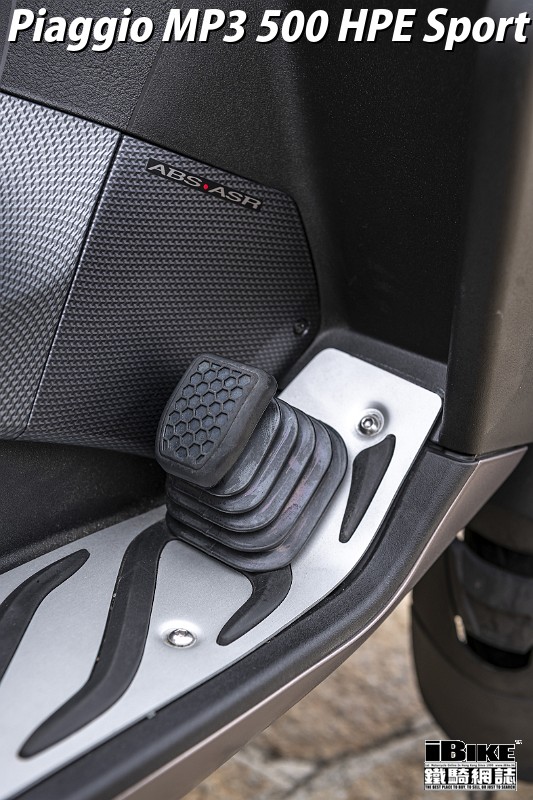

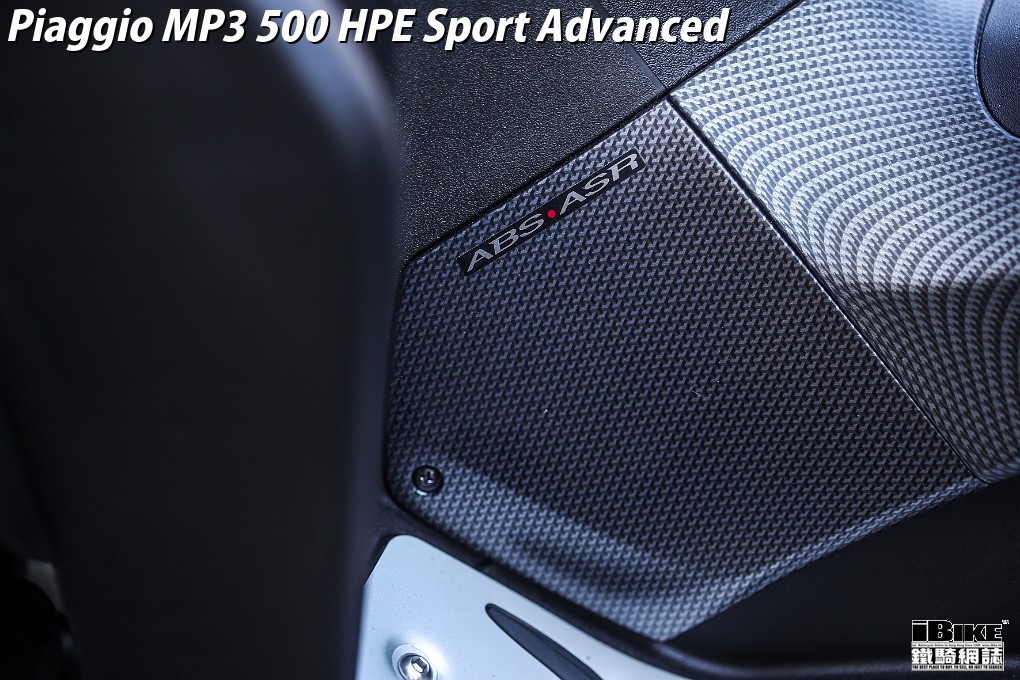

Aluminium alloy 14" x 4.50 ABS with braking integrated
with the pedal
 Front tyres Tubeless 110/70-13”
Rear tyre Tubeless 140/70-14''

 Length/Width 2,200

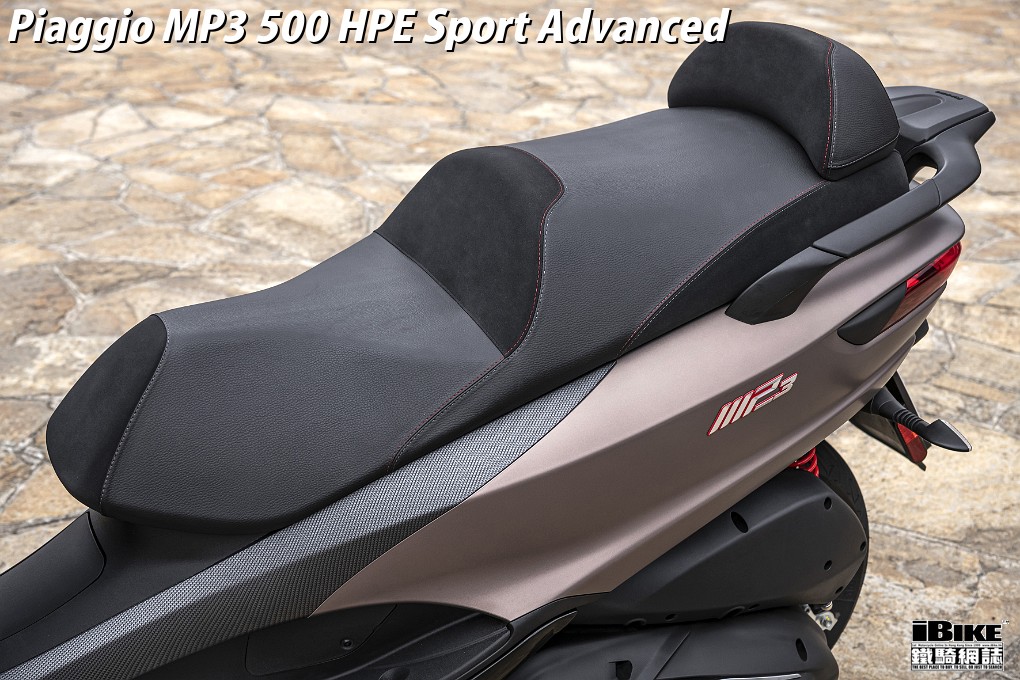

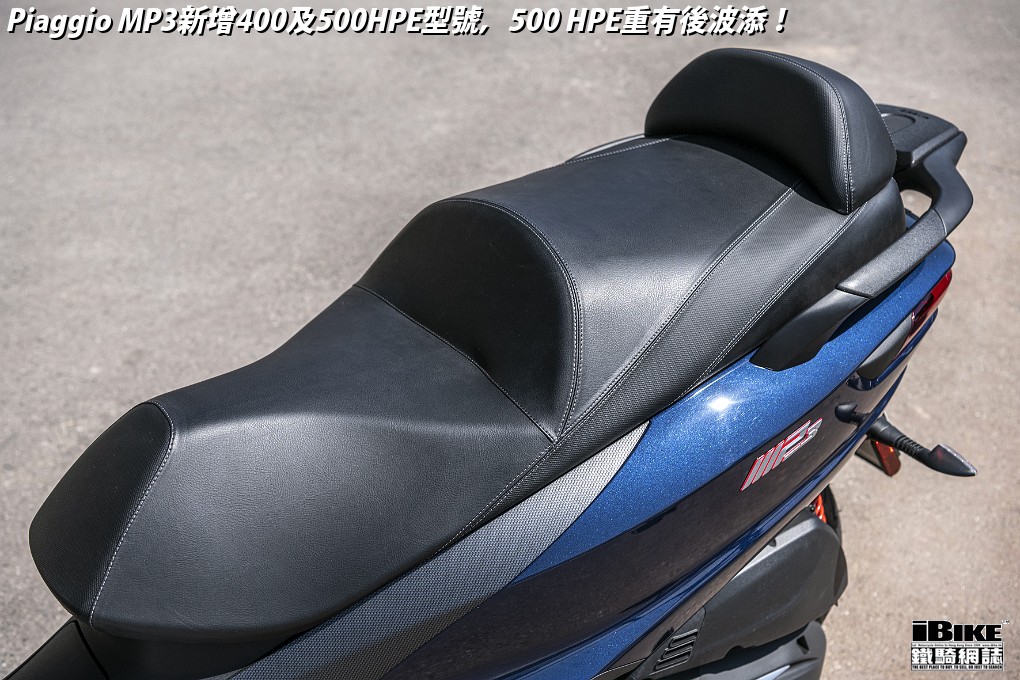

mm / 800 mm Wheelbase 1,540 mm Seat height 790 mm
 Fuel tank capacity 12 litres (including 1.8 litre
reserve)

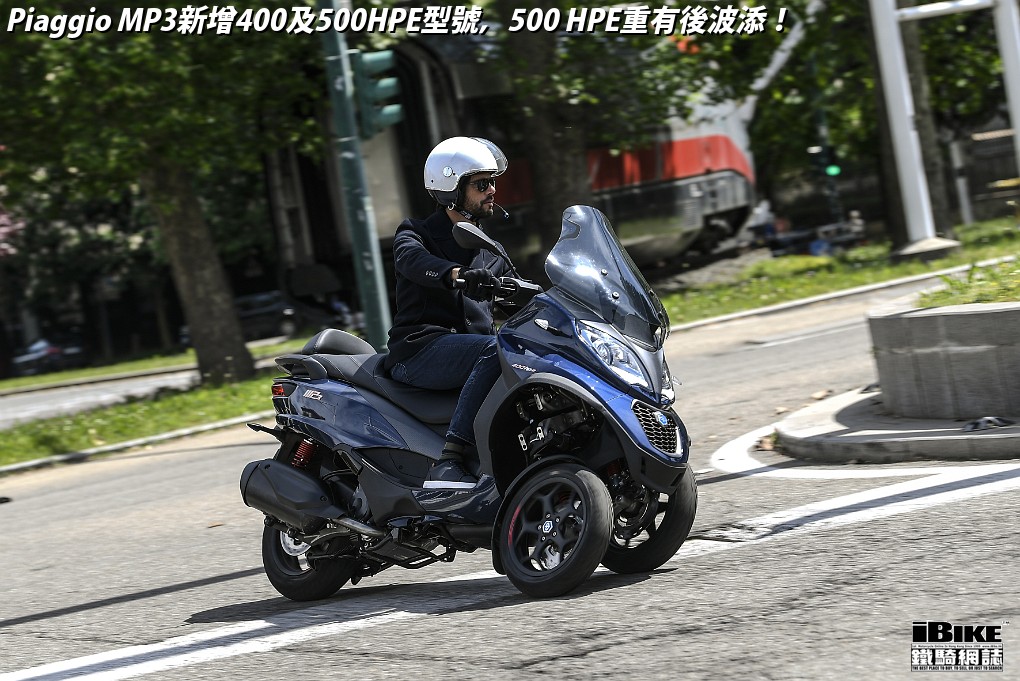

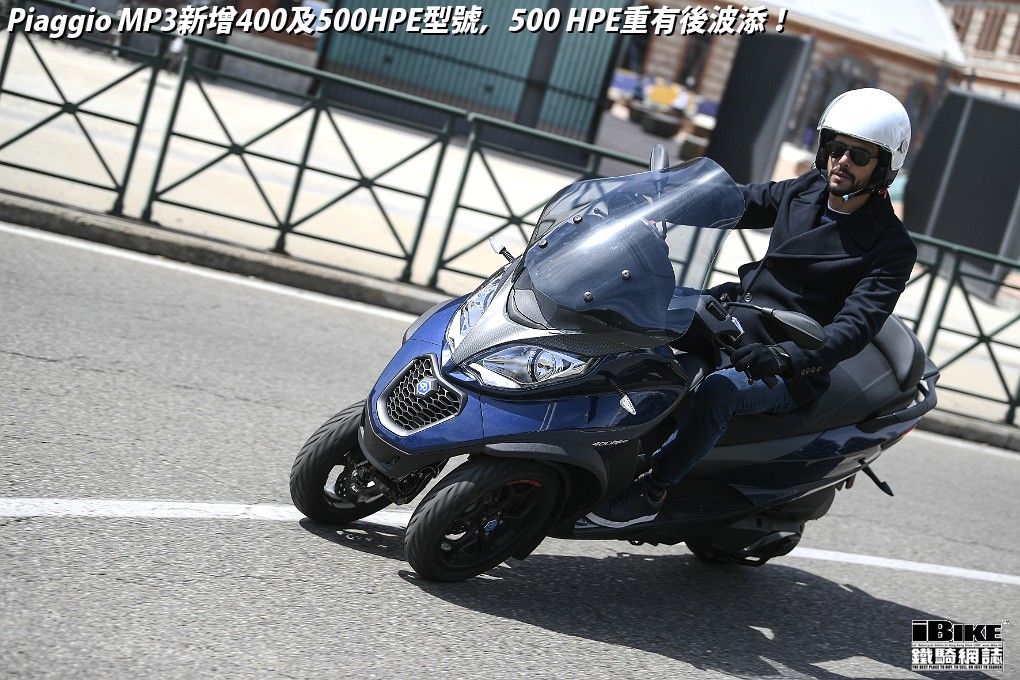

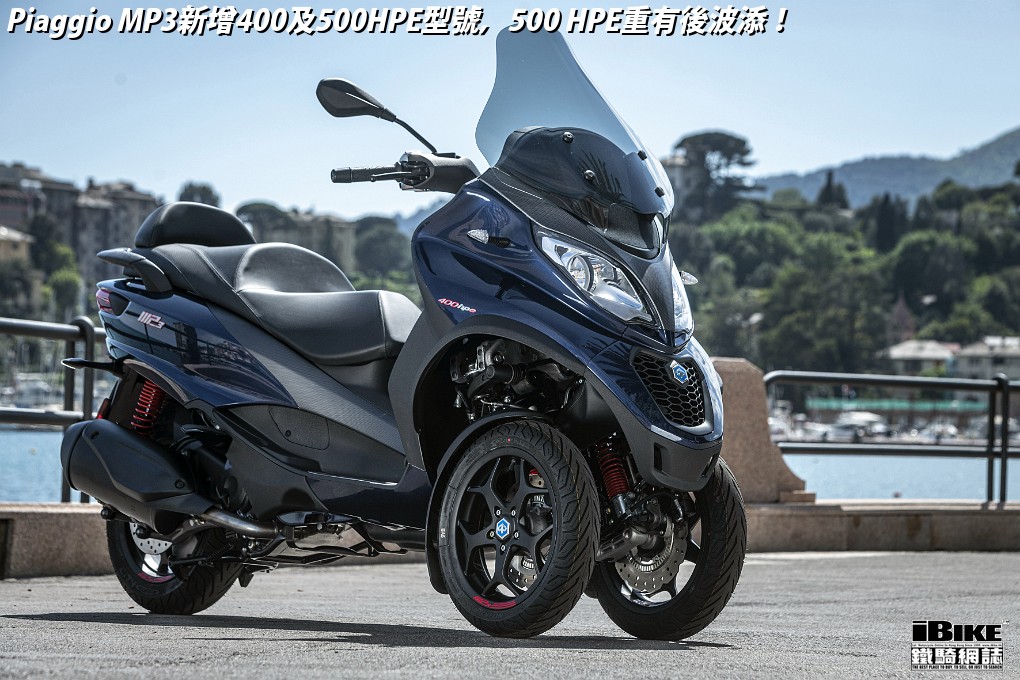

Piaggio MP3 400 hpe / 400 hpe
Sport 399cc
Single-cylinder 4-stroke
Liquid Cool Bore x Stroke
84 mm x 72 mm 26 kW (35.3 HP) at 7000 rpm 37.7
Nm at 5500 rpm Single overhead cam shaft (SOHC) with
4 valves and roller tappets


Electronic injection
Electronic immobilizer Traction control (ASR)


 CVT
with torque server Centrifugal multi plate wet clutch
Double cradle in high strength tubular steel Front
suspension Articulated
quadrilateral Stroke: 85 mm. Electro-hydraulic suspension
blocking system. Rear suspension
Dual hydraulic shock absorber with pre-adjusted
spring in one of 4 positions - Stroke: 102 mm


 Front
brakes Two 258 mm discs Rear
brake 240 mm disc ABS with
braking integrated with the pedal

 Front wheel rims
Aluminium alloy 13" x 3.00 Rear wheel rim
Aluminium alloy 14" x 4.00 Front tyres
Tubeless 110/70-13” Rear tyre
Tubeless 140/70-14''


 Length/Width
2,200 mm / 800 mm Wheelbase
1,560 mm Seat height 790
mm Fuel tank capacity
13.2 litres (including 1.8 litre reserve) |
