車重為何會減少了4kg呢

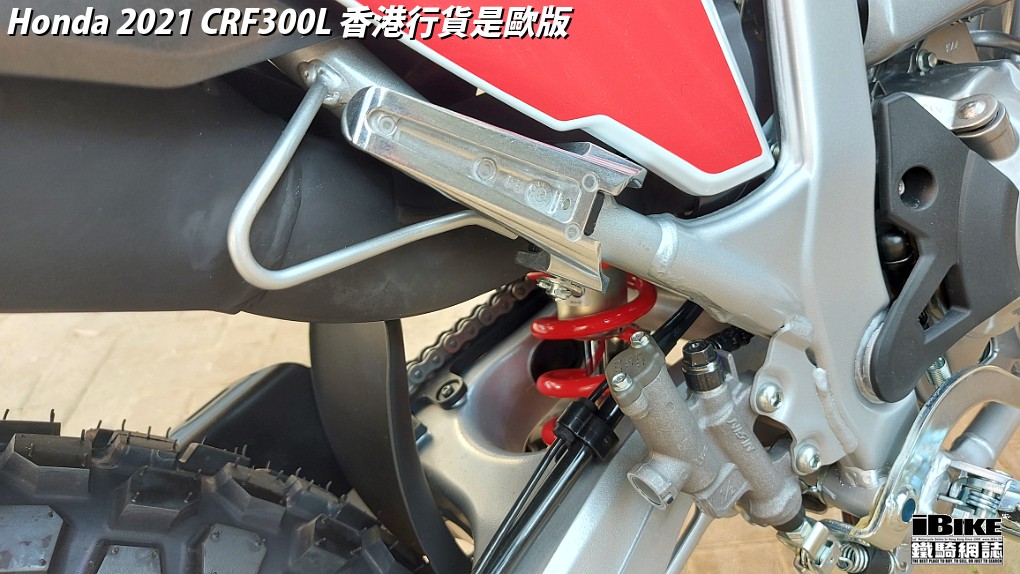

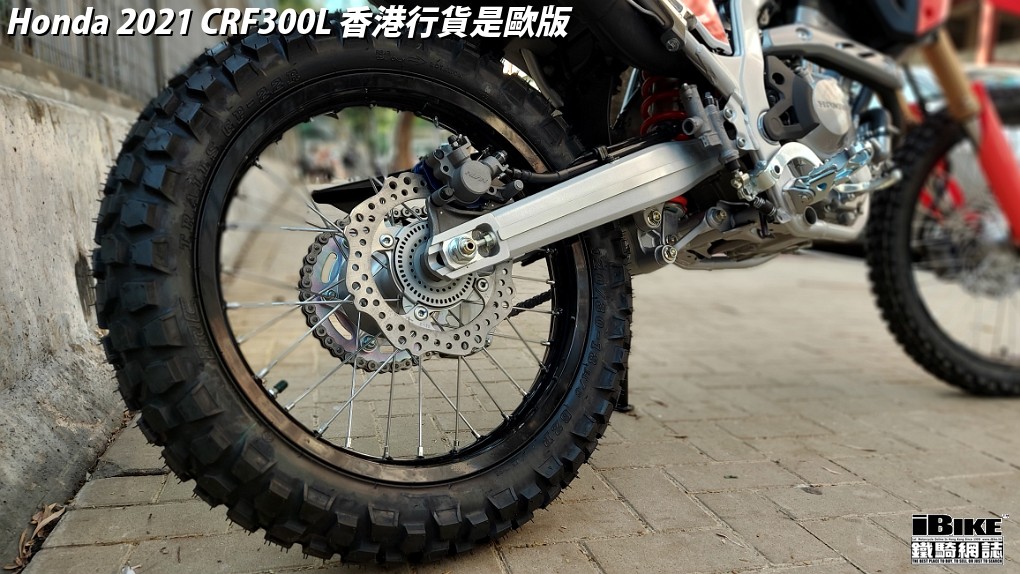

為何引擎排氣量增加了，但車重反而會減少了4kg呢？原來廠方把鋼製半雙搖籃車架和鋁製尾搖臂重新設計。雖然減重，但新設計具有更好的剛性平衡和更多側向彎曲，以增加反饋和感覺。

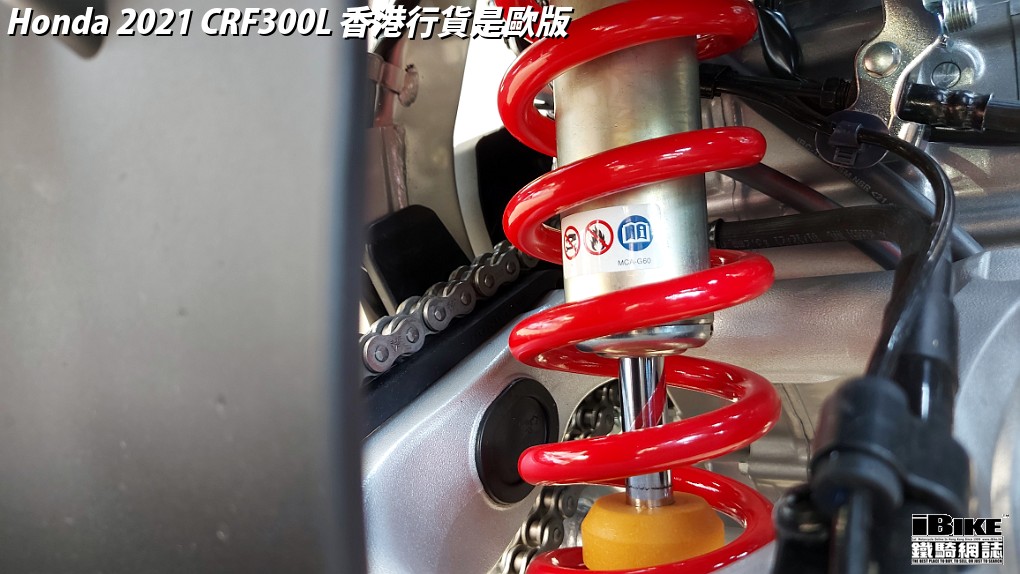

前後避震行程增加

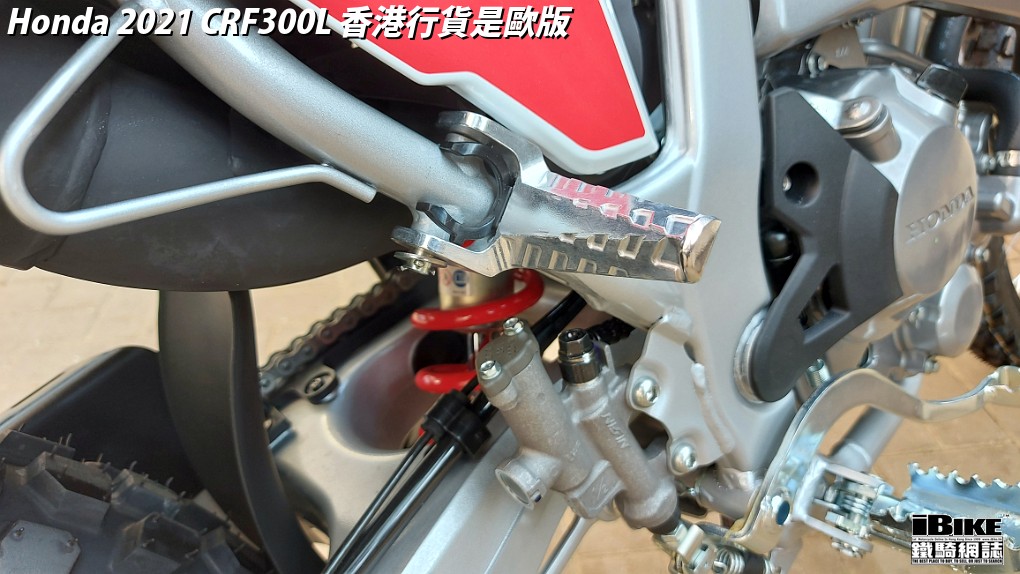

配合前後避震行程分別增加10mm和20mm，騎行姿勢也有修改。新座姿更強調操縱性，轉向把手向後輕移，同時降低了腳踏的高度。座椅高度增加了5mm至880mm。Rally版的加寬座墊高度是885mm，比以前矮了10mm。
買家要留意一點

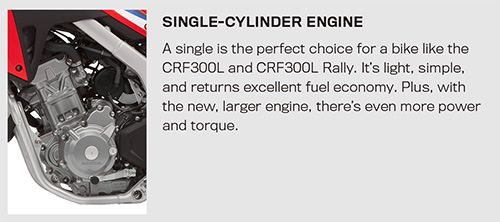

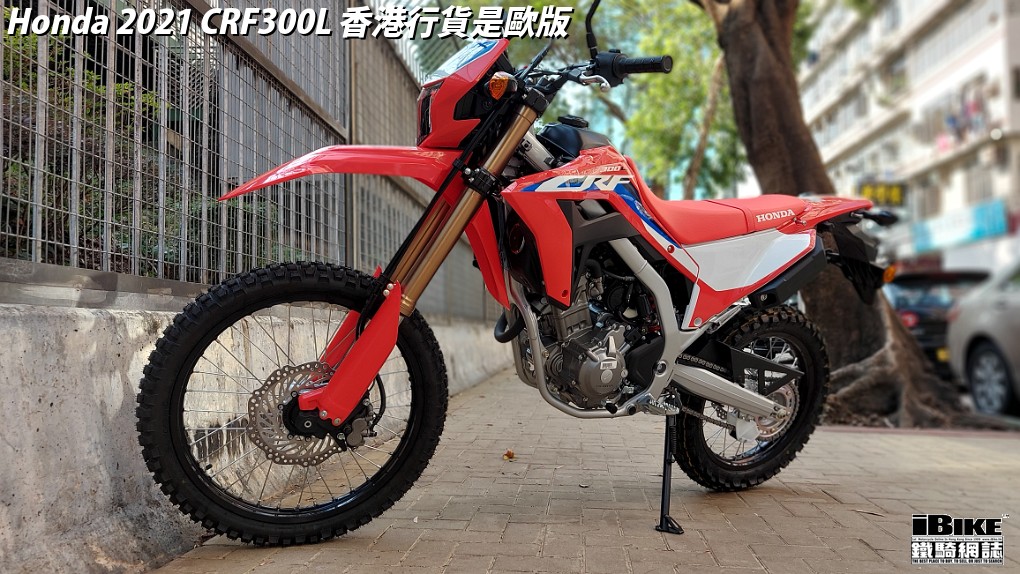

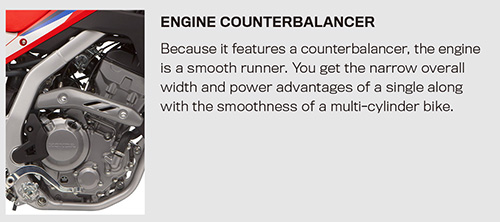

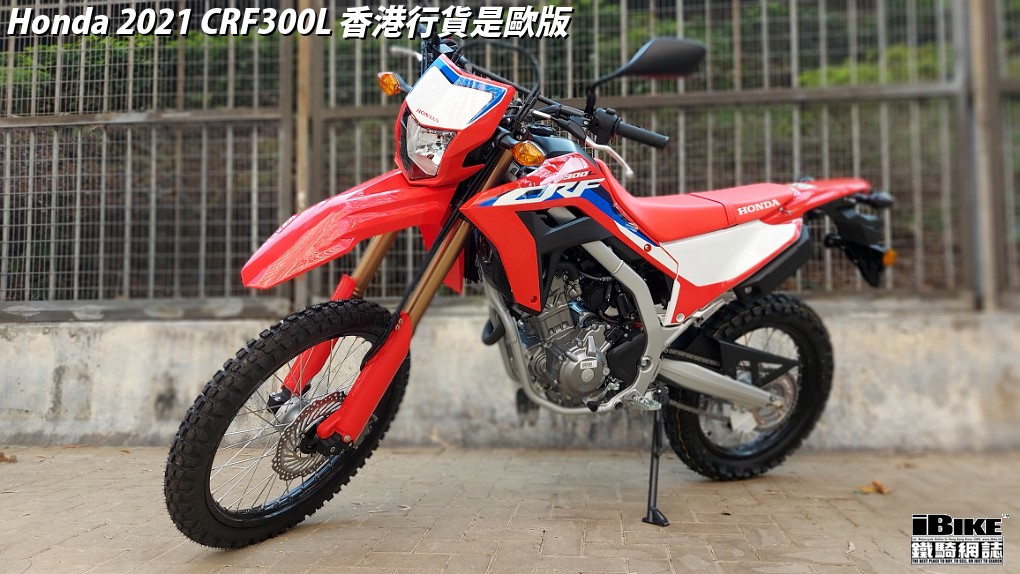

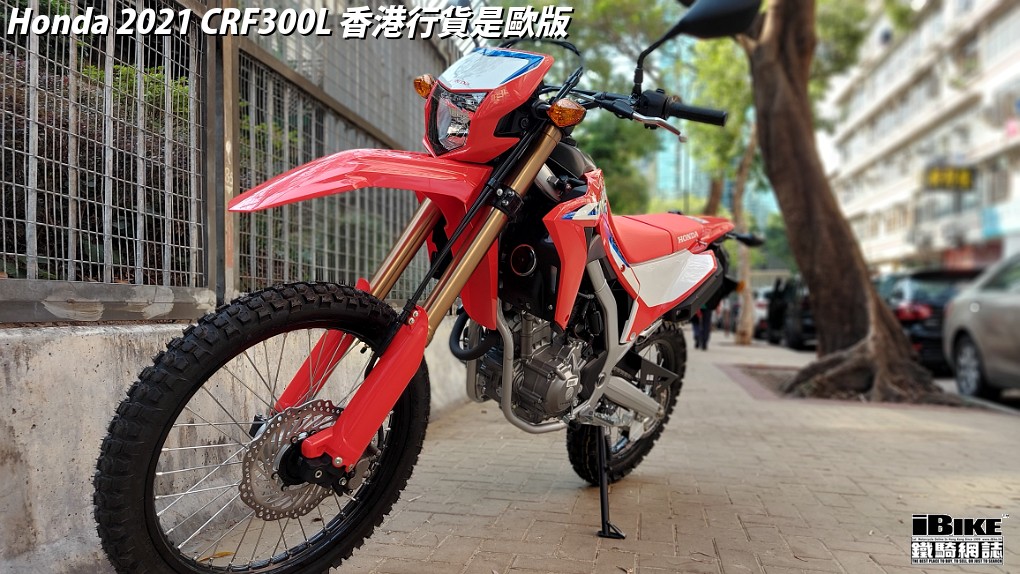

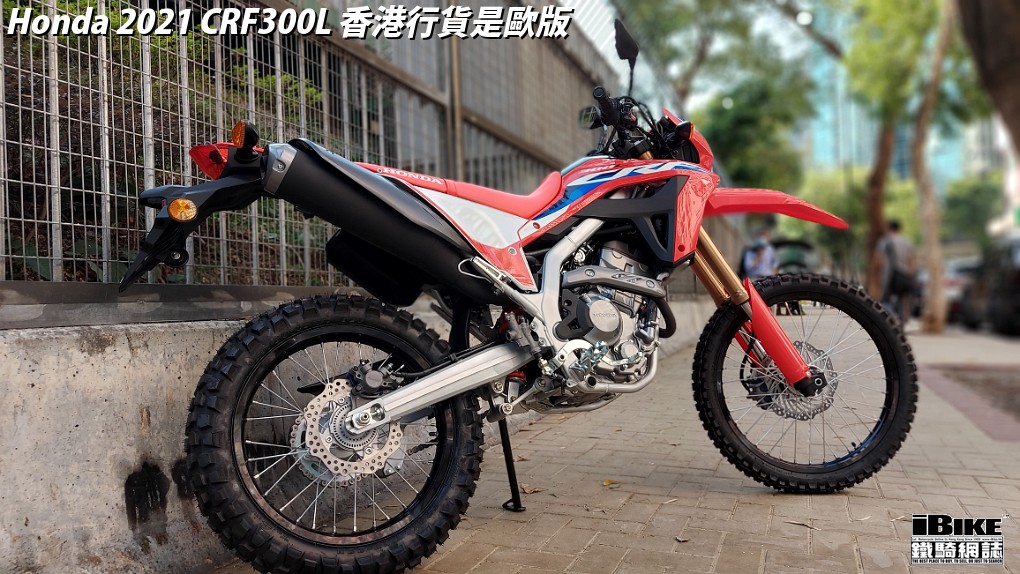

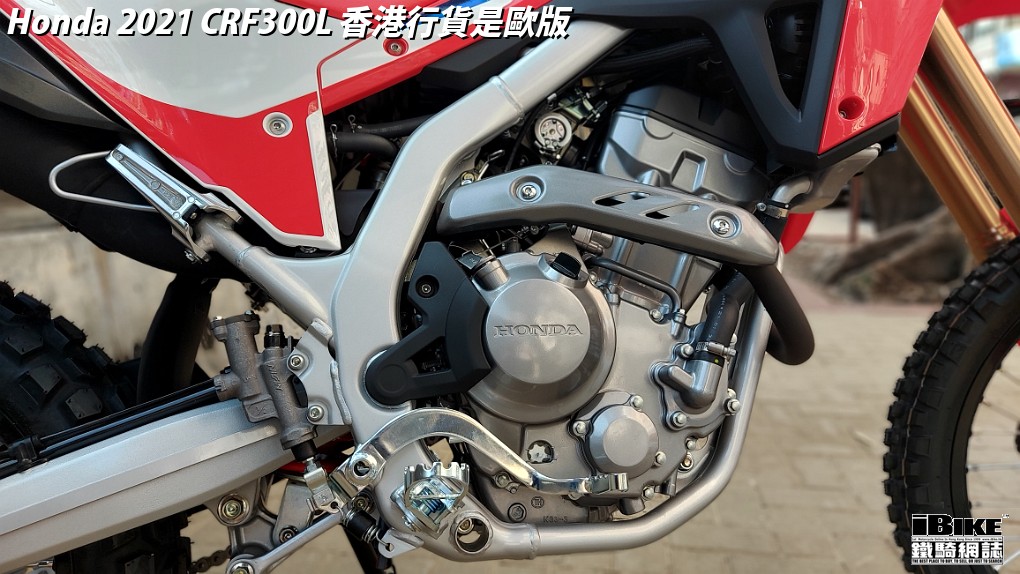

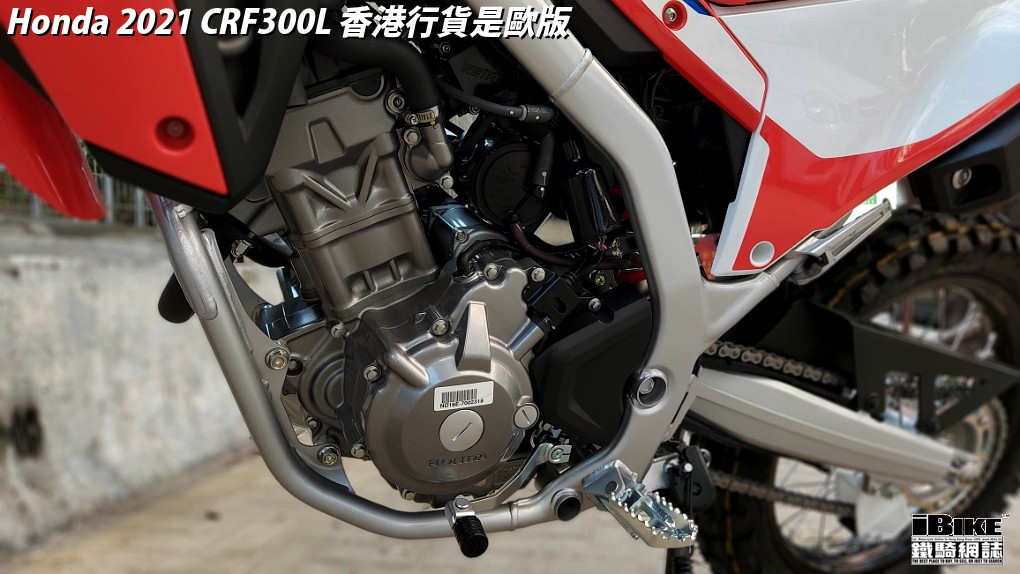

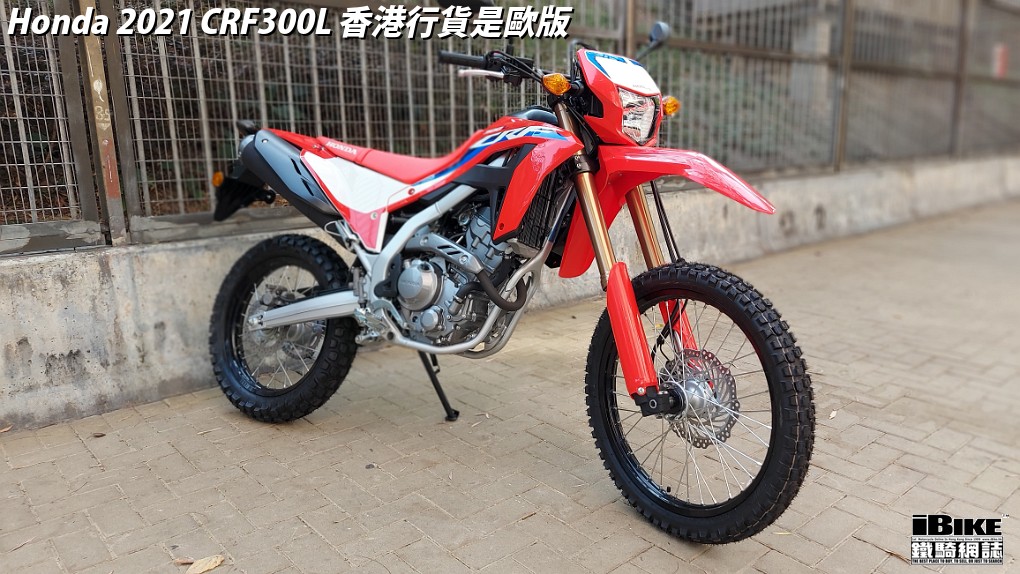

香港行貨引入符合EURO 5標準的歐版機器，DOHC 4氣門單缸發動機在8,500rpm時產生20.1kW的峰值功率，最大扭矩為26.6Nm @
6,500rpm。 不過買家要留意一點，歐版的頭燈規格仍是採用燈泡，而不是LED。
 |
 |
|
|

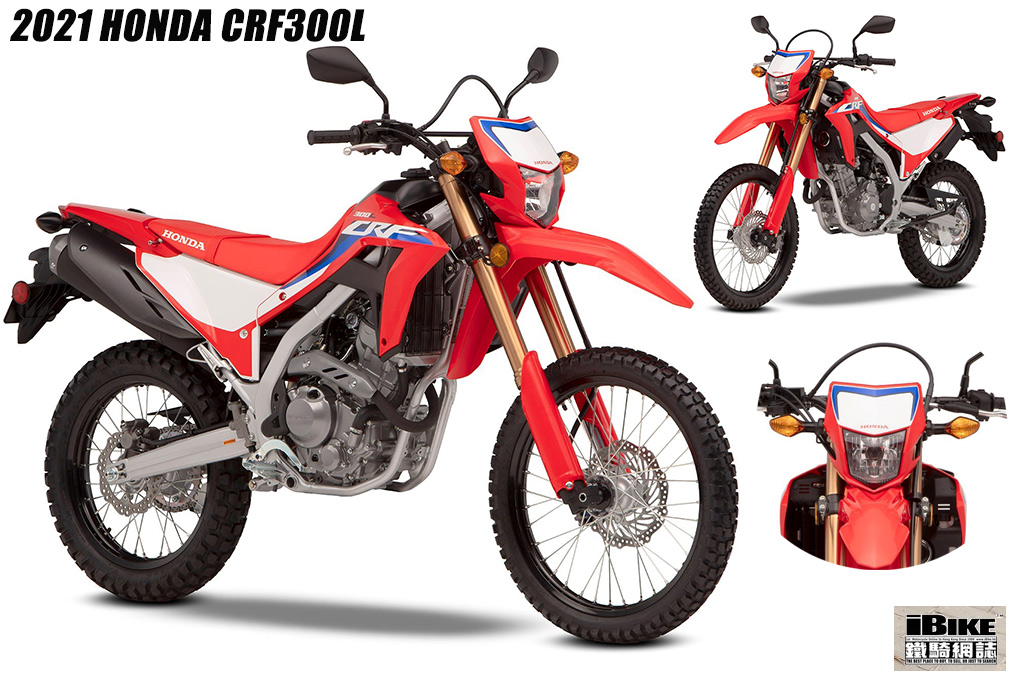

2021 Honda CRF300L |
|
ENGINE
|
|
|
Type
|
Liquid-cooled, single cylinder DOHC
|
|
Engine Displacement (cm³)
|
286cc
|
|
No. of Valves per Cylinder
|
4
|
|
Bore ´ Stroke (mm)
|
76.0 x 63.0
|
|
Compression Ratio
|
10.7:1
|
|
Max. Power Output
|
20.1kW/8500rpm
|
|
Max. Torque
|
26.6Nm/6,500rpm
|
|
Oil Capacity
|
1.8L
|
|
FUEL SYSTEM
|
|
|
Carburation
|
PGM-FI electronic fuel injection
|
|
Fuel Tank Capacity
|
7.8L
|
|
Fuel Consumption
|
32.3km/litre
|
|
CO2 Emissions
WMTC
|
73 g/km
|
|
ELECTRICAL SYSTEM
|
|
|
Battery Capacity
|
12V-7AH
|
|
DRIVETRAIN
|
|
|
Clutch Type
|
Wet multiplate, assist/slipper clutch
|
|
Transmission Type
|
6-speed
|
|
Final Drive
|
Chain
|
|
FRAME
|
|
|
Type
|
Steel semi-double cradle
|
|
CHASSIS
|
|
|
Dimensions (LxWxH)
|
2230 x 820 x 1200mm
|
|
Wheelbase
|
1455mm
|
|
Caster Angle
|
27.5°
|
|
Trail
|
109mm
|
|
Seat Height
|
880mm
|
|
Ground Clearance
|
285mm
|
|
Kerb Weight
|
142kg
|
|
Turning radius
|
2.3m
|
|
SUSPENSION
|
|
|
Type Front
|
43mm telescopic USD fork
|
|
Type Rear
|
Prolink
|
|
WHEELS
|
|
|
Wheels Front
|
Aluminium spoke
|
|
Wheels Rear
|
Aluminium spoke
|
|
Tyres Front
|

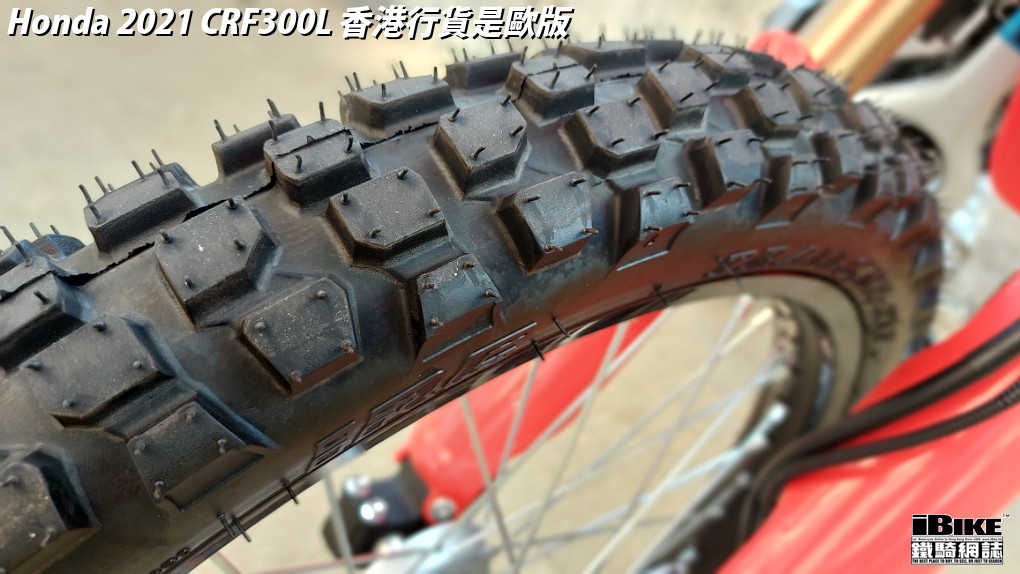

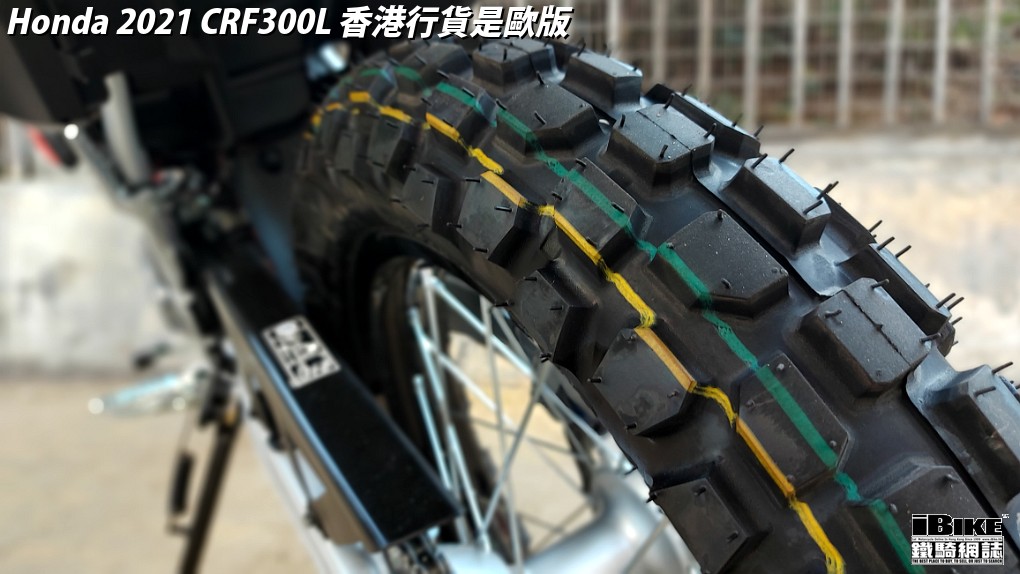

80/100-21M/C 51P
|
|
Tyres Rear
|
120/80-18M/C 62P
|
|
BRAKES
|
|
|
ABS System Type
|
2 channel ABS
|
|
Brakes Front
|
256mm x 3.5mm disc with two piston caliper
|
|
Brakes Rear
|
220 mm x 4.5mm disc with single piston
caliper
|
|
INSTRUMENTS & ELECTRICS
|
|
|

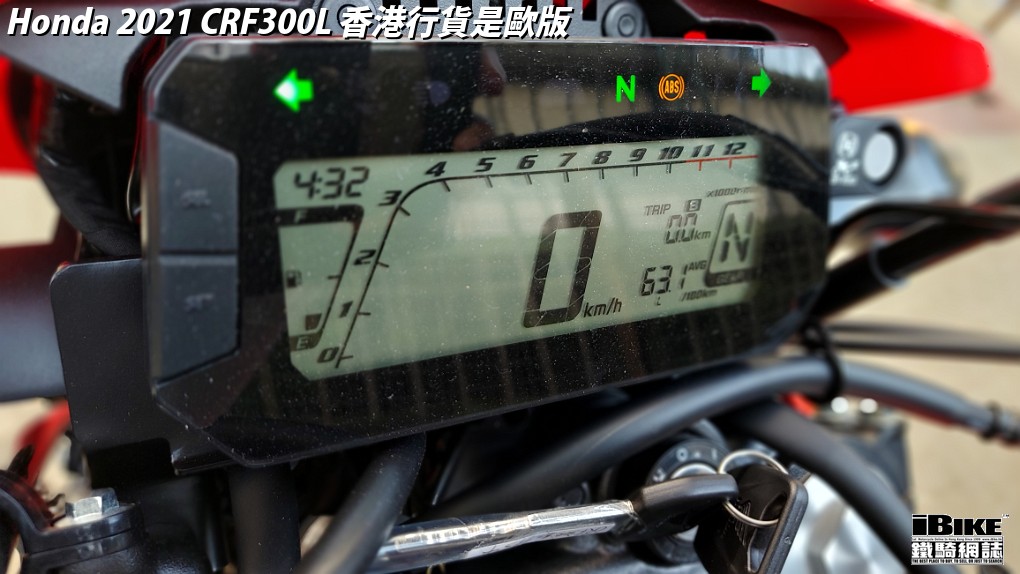

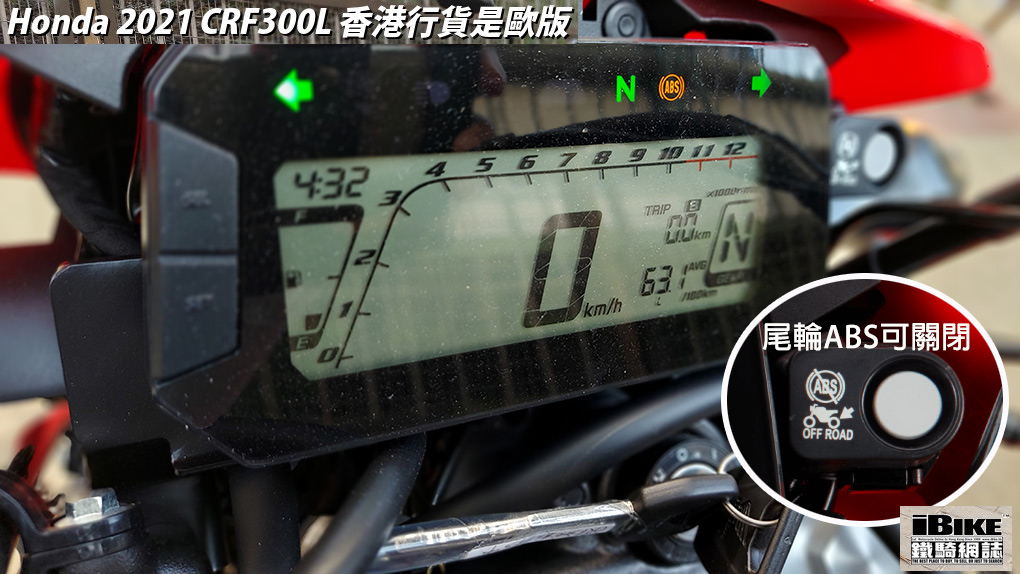

Instruments
|
LCD
|
|
Headlight
|
Bulb
|
|

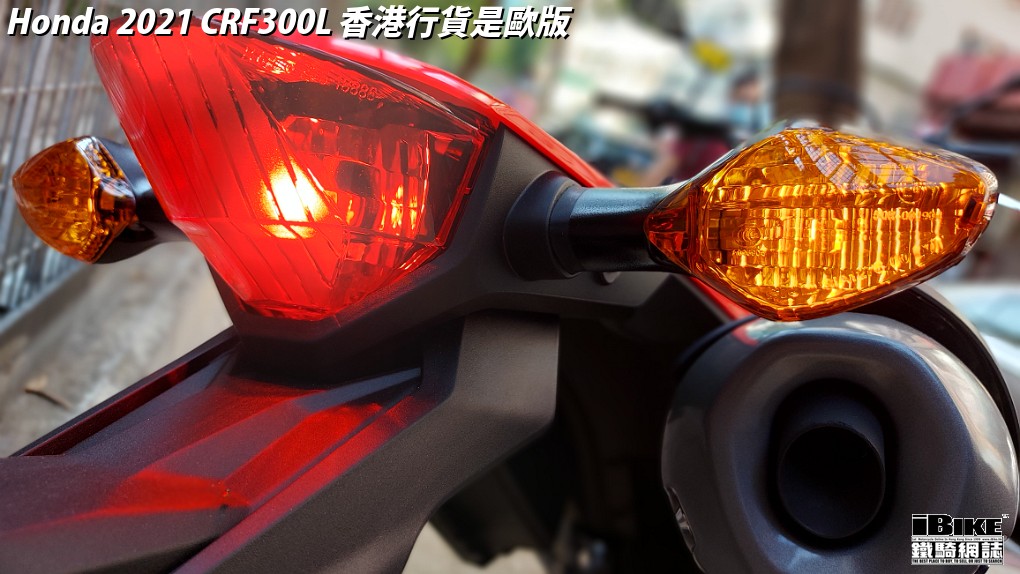

Taillight
|
Bulb
|
|

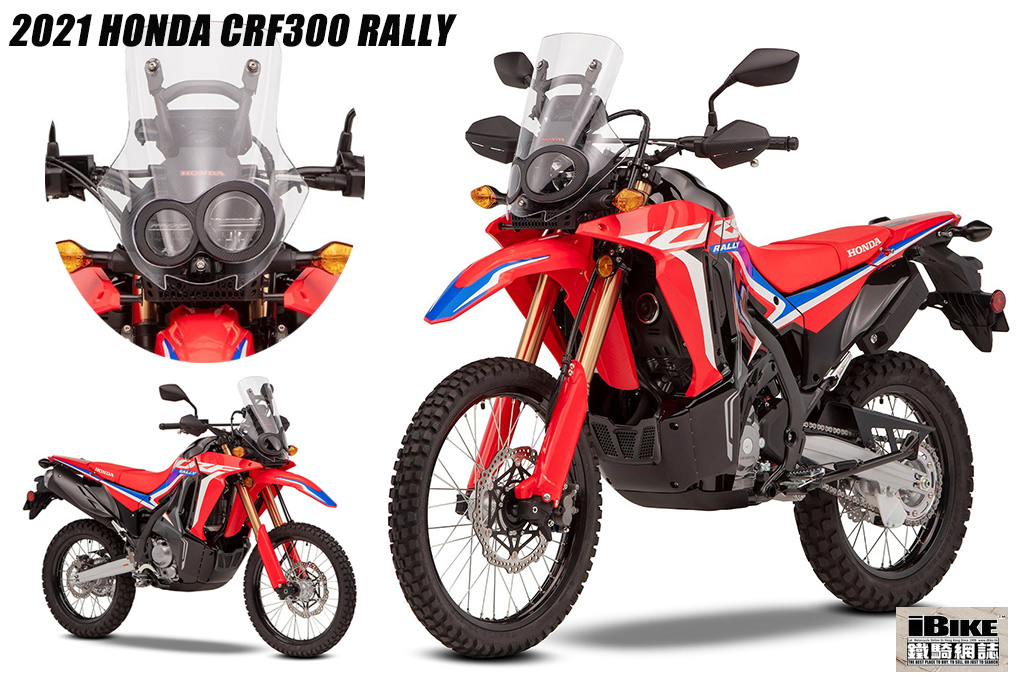

2021 Honda CRF300 Rally |
|
ENGINE
|
|
|
Type
|
Liquid-cooled, single cylinder DOHC
|
|
Engine Displacement (cm³)
|
286cc
|
|
No. of Valves per Cylinder
|
4
|
|
Bore ´ Stroke (mm)
|
76mm x 63mm
|
|
Compression Ratio
|
10.7:1
|
|
Max. Power Output
|
20.1kW/8500rpm
|
|
Max. Torque
|
26.6Nm/6,500rpm
|
|
Oil Capacity
|
1.8L
|
|
FUEL SYSTEM
|
|
|
Carburation
|
PGM-FI electronic fuel injection
|
|
Fuel Tank Capacity
|
12.8L
|
|
Fuel Consumption
|
32.3km/L
|
|
ELECTRICAL SYSTEM
|
|
|
Battery Capacity
|
12V-7AH
|
|
DRIVETRAIN
|
|
|
Clutch Type
|
Wet multiplate, assist/slipper clutch
|
|
Transmission Type
|
6-speed
|
|
Final Drive
|
Chain
|
|
FRAME
|
|
|
Type
|
Steel semi-double cradle
|
|
CHASSIS
|
|
|
Dimensions (LxWxH)
|
2230 x 920 x 1415mm
|
|
Wheelbase
|
1455mm
|
|
Caster Angle
|
27.5°
|
|
Trail
|
109mm
|
|
Seat Height
|
885mm
|
|
Ground Clearance
|
275mm
|
|
Kerb Weight
|
153kg
|
|
Turning radius
|
2.3m
|
|
SUSPENSION
|
|
|
Type Front
|
43mm telescopic USD fork
|
|
Type Rear
|
Prolink
|
|
WHEELS
|
|
|
Wheels Front
|
Aluminium spoke
|
|
Wheels rear
|
Aluminium spoke
|
|
Tyres Front
|
80/100-21M/C 51P
|
|
Tyres Rear
|
120/80-18M/C 62P
|
|
BRAKES
|
|
|
ABS System Type
|
2 channel ABS
|
|
Brakes Front
|
296 mm x 3.5mm disc with two piston
caliper
|
|
Brakes Rear
|
220 mm x 4.5mm disc with single piston
caliper
|
|
INSTRUMENTS & ELECTRICS
|
|
|
Instruments
|
LCD
|
|
Headlight
|
LED
|
|
Taillight
|
Bulb
|
|
