以Land of Joy為口號的Ducati

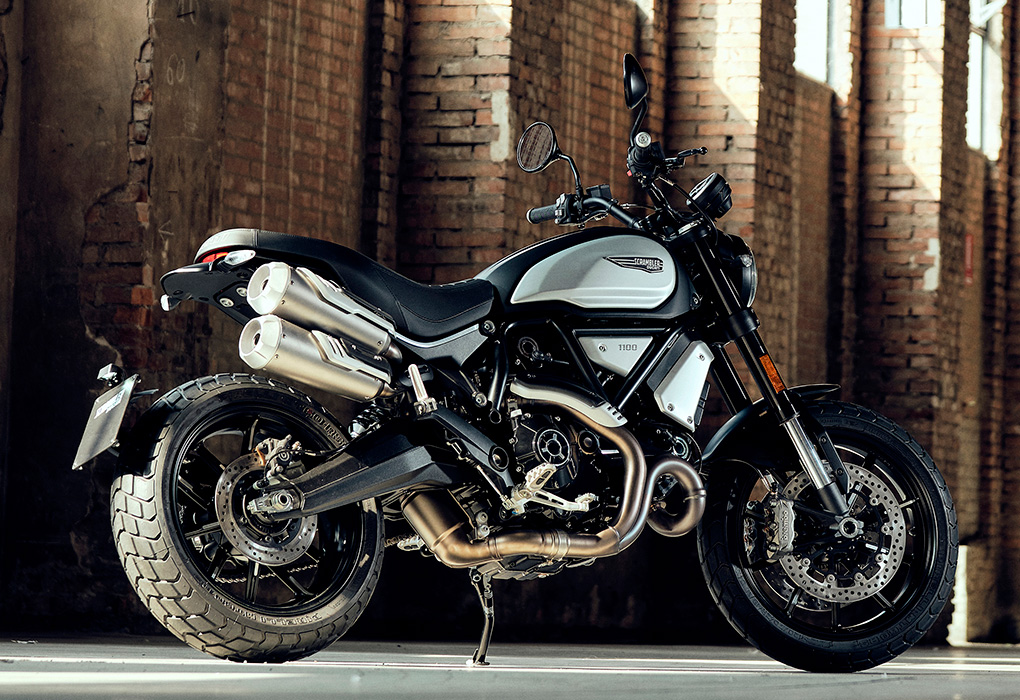

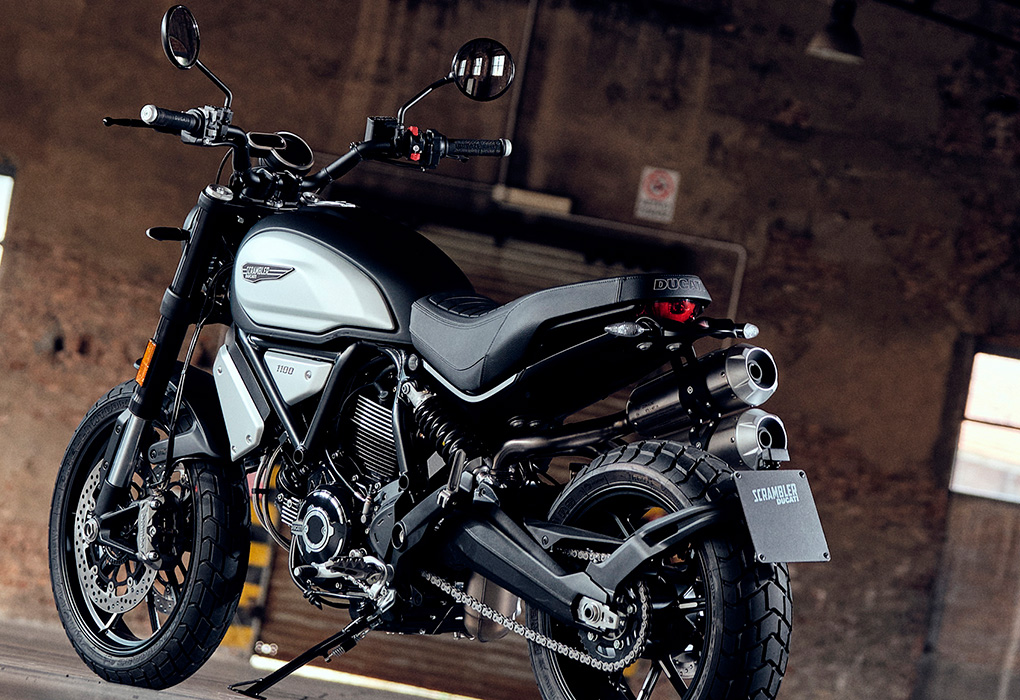

Scrambler,在2021年再推出多個變化。1100陣營有Scrambler 1100 Dark

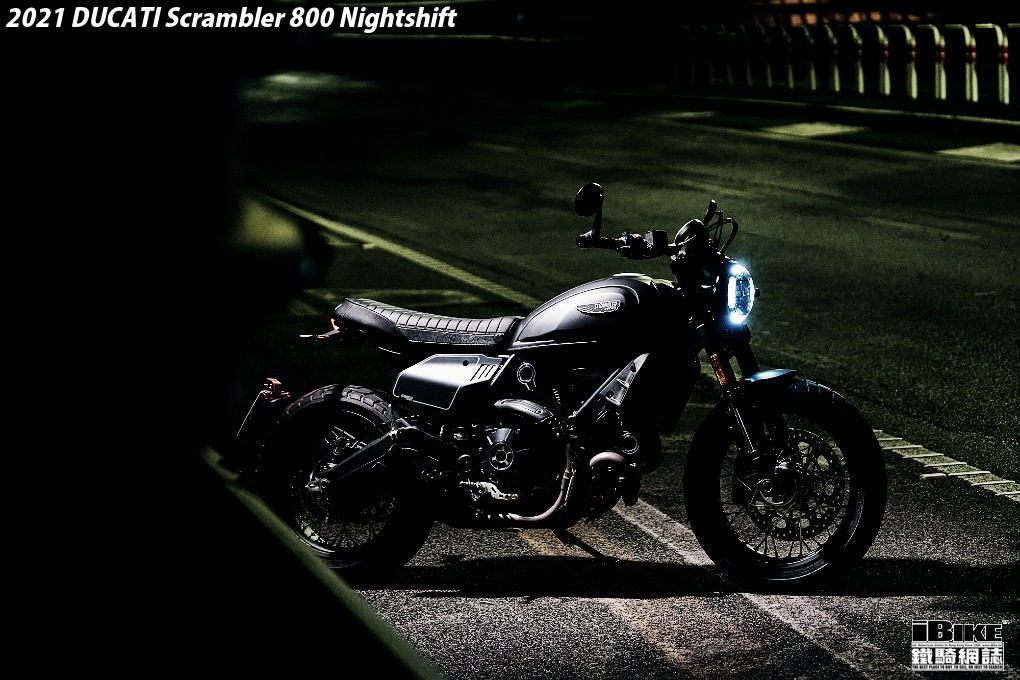

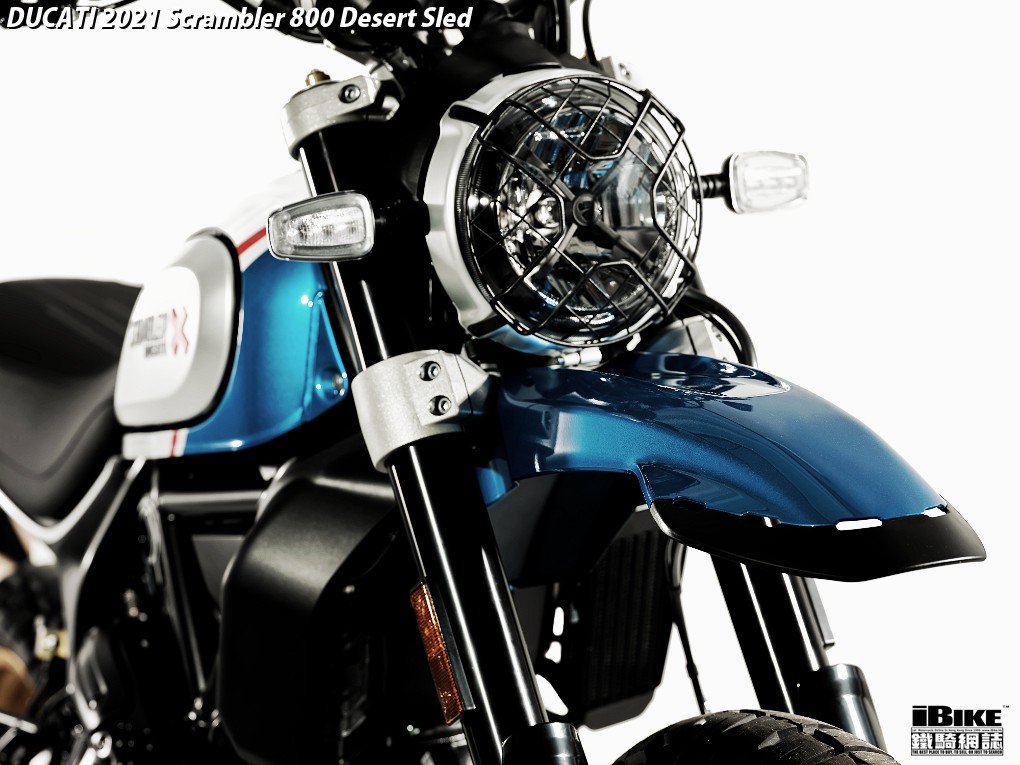

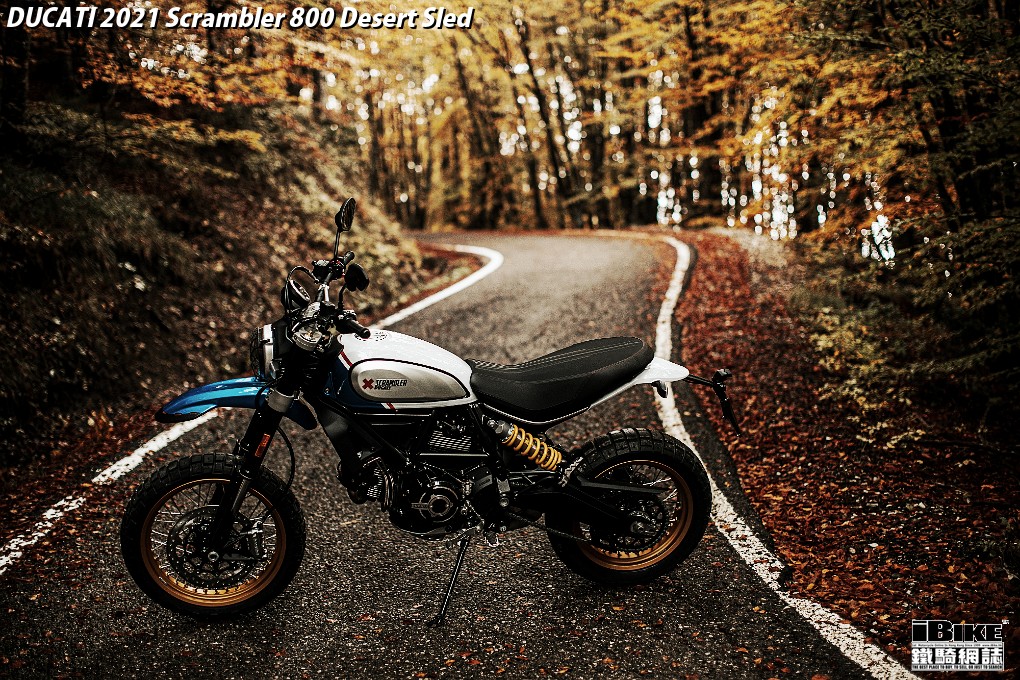

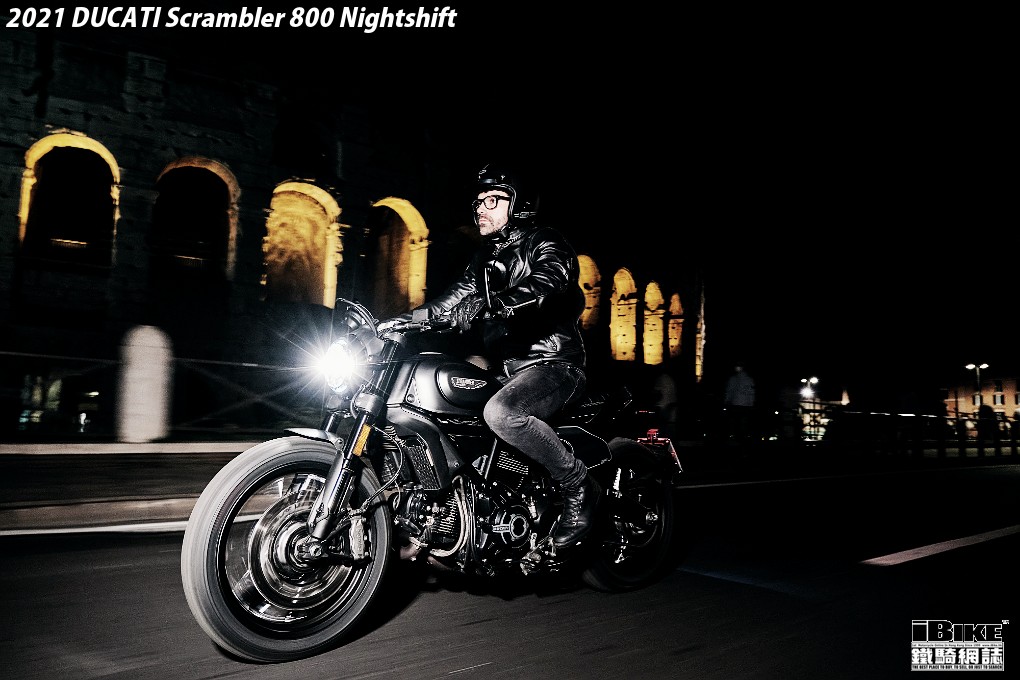

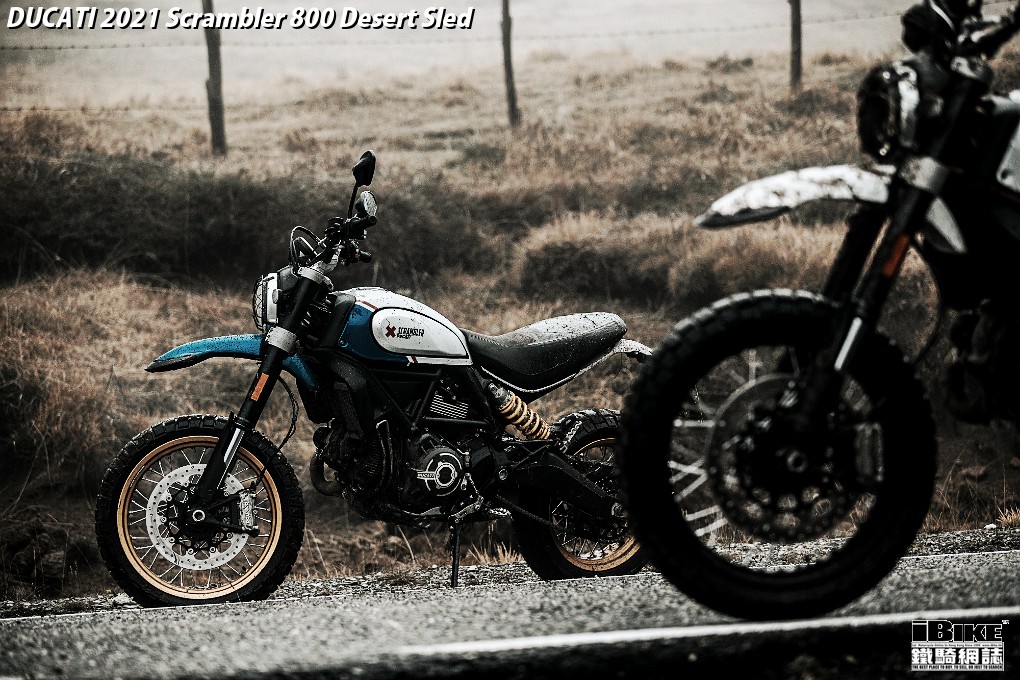

PRO,800陣營有Scrambler 800 Nightshift、Icon和Desert Sled。
2021 Scrambler 1100
Dark Pro
Scrambler 1100 Dark PRO是1100 PRO系列另一款搶手型號。雖然定位在1100 SPORT
PRO之下,但一身Dark Stealth顏色帶來優雅和純淨,旨在傳達Scrambler多樂精神。1100 Dark
PRO將在所有Ducati經銷商和Scrambler Camps中提供。
L-Twin, Desmodromic
distribution, 2 valves per cylinder, air cooled
DISPLACEMENT
803 cc
BORE X STROKE
88 x 66 mm
COMPRESSION RATIO
11:1
POWER
73 hp (53,6 kW) 8250 rpm/min
TORQUE
48,8 lb-ft (66,2 Nm) @ 5750
rpm
FUEL INJECTION
Electronic fuel injection, 50
mm throttle body
EXHAUST
Stainless steel muffler with
catalytic converter and 2 lambda probes, aluminium
tail pipes
GEARBOX
6 speed
RATIO
1=32/13 2=30/18 3=28/21
4=26/23 5=22/22 6=24/26
PRIMARY DRIVE
Straight cut gears, Ratio
1,85:1
FINAL DRIVE
Chain, front spocket 15, rear
sprocket 46
CLUTCH
Hydraulically controlled
slipper and self-servo wet multiplate clutch
FRAME
Tubular steel Trellis frame
FRONT SUSPENSION
Upside down Kayaba 41 mm fork
FRONT WHEEL
Spoked aluminium wheel 3,00" x
18"
FRONT TYRE
Pirelli MT 60 RS 110/80 R18
REAR SUSPENSION
Kayaba rear shock, pre-load
adjustable.
REAR WHEEL
150 mm (5,9 in)
REAR TYRE
Spoked aluminium wheel 5,50" x
17"
WHEEL TRAVEL (FRONT/REAR)
Pirelli MT 60 RS 180/55 R17
FRONT BRAKE
Ø330 mm disc, radial 4-piston
calliper with Bosch Cornering ABS as standard
equipment
REAR BRAKE
Ø245 mm disc, 1-piston
floating calliper with Bosch Cornering ABS as
standard equipment
INSTRUMENTATION
LCD
DRY WEIGHT
173 kg (381 lb)
KERB WEIGHT*
189 kg (417 lb)
SEAT HEIGHT
798 mm (31,4 in)
WHEELBASE
1.445 mm (56.9 in)
RAKE
24°
TRAIL
112 mm (4,4 in)
FUEL TANK CAPACITY
13,5 l - 3,57 gallon (US)
NUMBER OF SEATS
Dual seat
STANDARD EQUIPMENT
Steel tank with
interchangeable aluminium side panels, headlight
with DRL by LED light-guide and interchangeable
aluminium cover, LED rear light with
diffusion-light, LED turn indicator, LCD instruments
with gear and fuel level indications and
interchangeable aluminium cover, under-seat storage
compartment with USB socket, ABS cornering,
machine-finished aluminium belt covers, black engine
with brushed fins.
DEDICATED EQUIPMENT
Low aluminium handlebars,
double passenger seat, sport tail piece with
dedicated turn indicator support, sports style front
mudguard, dedicated logo, café racer rearview
mirrors, spoked wheels, side flat track number
plate, LED Ducati Performance turn indicators (EU
Homologated)
L-Twin, Desmodromic
distribution, 2 valves per cylinder, air cooled
DISPLACEMENT
803 cc
BORE X STROKE
88 x 66 mm
COMPRESSION RATIO
11:1
POWER
73 hp (53,6 kW) 8250 rpm/min
TORQUE
48,8 lb-ft (66,2 Nm) @ 5750
rpm
FUEL INJECTION
Electronic fuel injection, 50
mm throttle body
EXHAUST
Stainless steel muffler with
catalytic converter and 2 lambda probes, aluminium
tail pipes
GEARBOX
6 speed
RATIO
1=32/13 2=30/18 3=28/21
4=26/23 5=22/22 6=24/26
PRIMARY DRIVE
Straight cut gears, Ratio
1,85:1
FINAL DRIVE
Chain, front spocket 15, rear
sprocket 46
CLUTCH
Hydraulically controlled
slipper and self-servo wet multiplate clutch
FRAME
Tubular steel Trellis frame
FRONT SUSPENSION
46mm fully adjustable usd forks
FRONT WHEEL
Spoked aluminium wheel 3,00" x
19"
FRONT TYRE
Pirelli SCORPION™ RALLY STR
120/70 R19
REAR SUSPENSION
Kayaba rear shock, pre-load
and rebound adjustable. Aluminium double-sided
swingarm
REAR WHEEL
200 mm
REAR TYRE
Spoked aluminium wheel 4,50" x
17"
WHEEL TRAVEL (FRONT/REAR)
Pirelli SCORPION™ RALLY STR
170/60 R17
FRONT BRAKE
Ø330 mm disc, radial 4-piston
calliper with Bosch Cornering ABS as standard
equipment
REAR BRAKE
Ø245 mm disc, 1-piston
floating calliper with Bosch Cornering ABS as
standard equipment
INSTRUMENTATION
LCD
DRY WEIGHT
193 kg (425,5 lb)
KERB WEIGHT*
209 kg (460,8 lb)
SEAT HEIGHT
860 mm (33,9 in) - low seat
840 mm (33,0 in) available as accessory
WHEELBASE
1.505 mm (59,3 in)
RAKE
24°
TRAIL
112 mm (4,4 in)
FUEL TANK CAPACITY
13,5 l - 3,57 gallon (US)
NUMBER OF SEATS
Dual seat
STANDARD EQUIPMENT
Steel tank with
interchangeable aluminium side panels, headlight
with DRL by LED light-guide and interchangeable
aluminium cover, LED rear light with
diffusion-light, LED turn indicator, LCD instruments
with gear and fuel level indications and
interchangeable aluminium cover, under-seat storage
compartment with USB socket, ABS cornering,
machine-finished aluminium belt covers, black engine
with brushed fins.
DEDICATED EQUIPMENT
Aluminium handlebar with
cross-strut, front stem protectors, seat with
specific design, high front mudguard, long rear
mudguard and high plate support
L-Twin, Desmodromic
distribution, 2 valves per cylinder, air cooled
DISPLACEMENT
803 cc
BORE X STROKE
88 x 66 mm
COMPRESSION RATIO
11:1
POWER
73 hp (53,6 kW) 8250 rpm/min
TORQUE
48,8 lb-ft (66,2 Nm) @ 5750
rpm
FUEL INJECTION
Electronic fuel injection, 50
mm throttle body
EXHAUST
Stainless steel muffler with
catalytic converter and 2 lambda probes, aluminium
tail pipes
GEARBOX
6 speed
RATIO
1=32/13 2=30/18 3=28/21
4=26/23 5=22/22 6=24/26
PRIMARY DRIVE
Straight cut gears, Ratio
1,85:1
FINAL DRIVE
Chain, front spocket 15, rear
sprocket 46
CLUTCH
Hydraulically controlled
slipper and self-servo wet multiplate clutch
FRAME
Tubular steel Trellis frame
FRONT SUSPENSION
Upside down Kayaba 41 mm fork
FRONT WHEEL
10-spoke in light alloy, 3.00"
x 18"
FRONT TYRE
Pirelli MT 60 RS 110/80 R18
REAR SUSPENSION
Kayaba rear shock, pre-load
adjustable.
REAR WHEEL
150 mm (5,9 in)
REAR TYRE
10-spoke in light alloy, 5.50"
x 17"
WHEEL TRAVEL (FRONT/REAR)
Pirelli MT 60 RS 180/55 R17
FRONT BRAKE
Ø330 mm disc, radial 4-piston
calliper with Bosch Cornering ABS as standard
equipment
REAR BRAKE
Ø245 mm disc, 1-piston
floating calliper with Bosch Cornering ABS as
standard equipment
INSTRUMENTATION
LCD
DRY WEIGHT
173 kg (381 lb)
KERB WEIGHT*
189 kg (417 lb)
SEAT HEIGHT
798 mm (31,4 in) - low seat
778 mm (30,6 in) available as accessory
WHEELBASE
1.445 mm (56.9 in)
RAKE
24°
TRAIL
112 mm (4,4 in)
FUEL TANK CAPACITY
13,5 l - 3,57 gallon (US)
NUMBER OF SEATS
Dual seat
STANDARD EQUIPMENT
Steel tank with
interchangeable aluminium side panels, headlight
with DRL by LED light-guide and interchangeable
aluminium cover, LED rear light with
diffusion-light, LED turn indicator, LCD instruments
with gear and fuel level indications and
interchangeable aluminium cover, under-seat storage
compartment with USB socket, ABS cornering,
machine-finished aluminium belt covers, black engine
with brushed fins.
