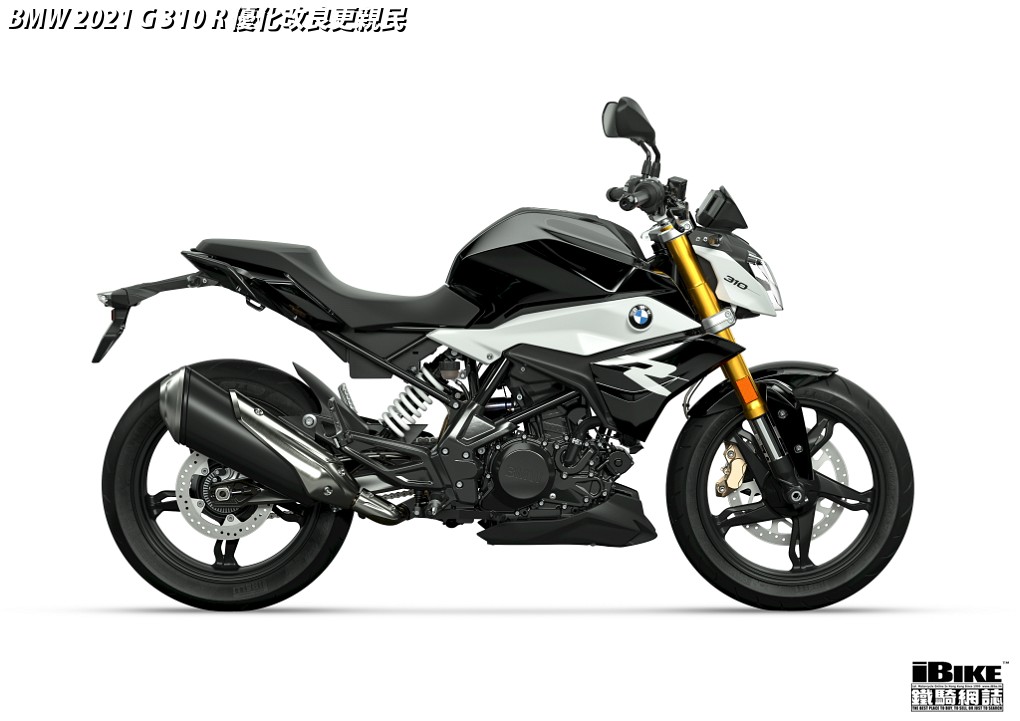

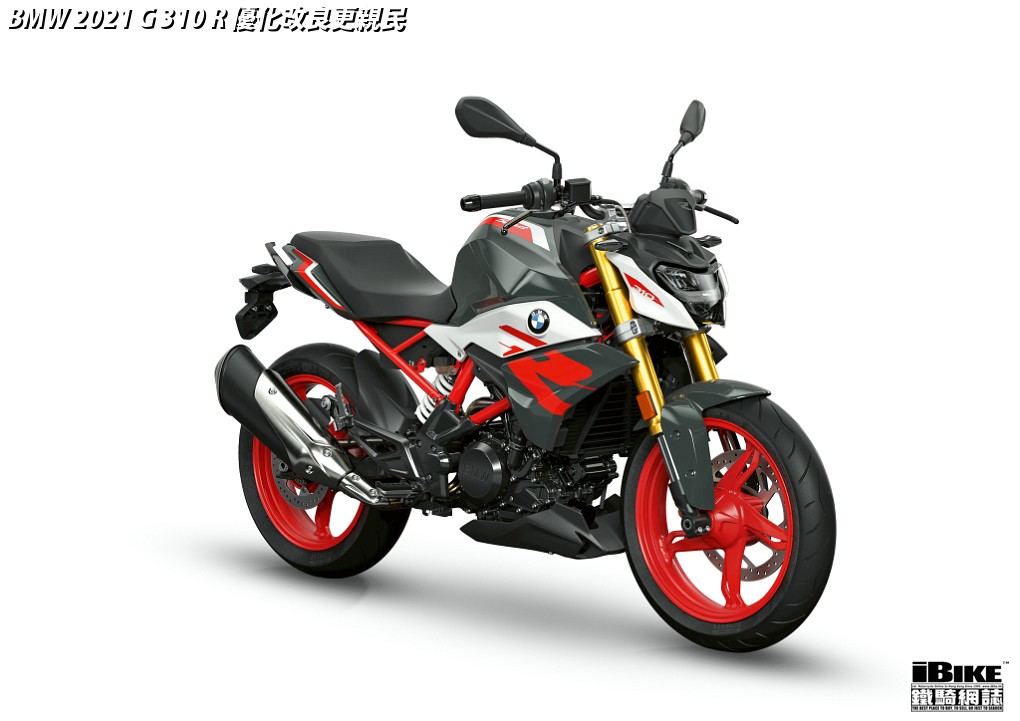

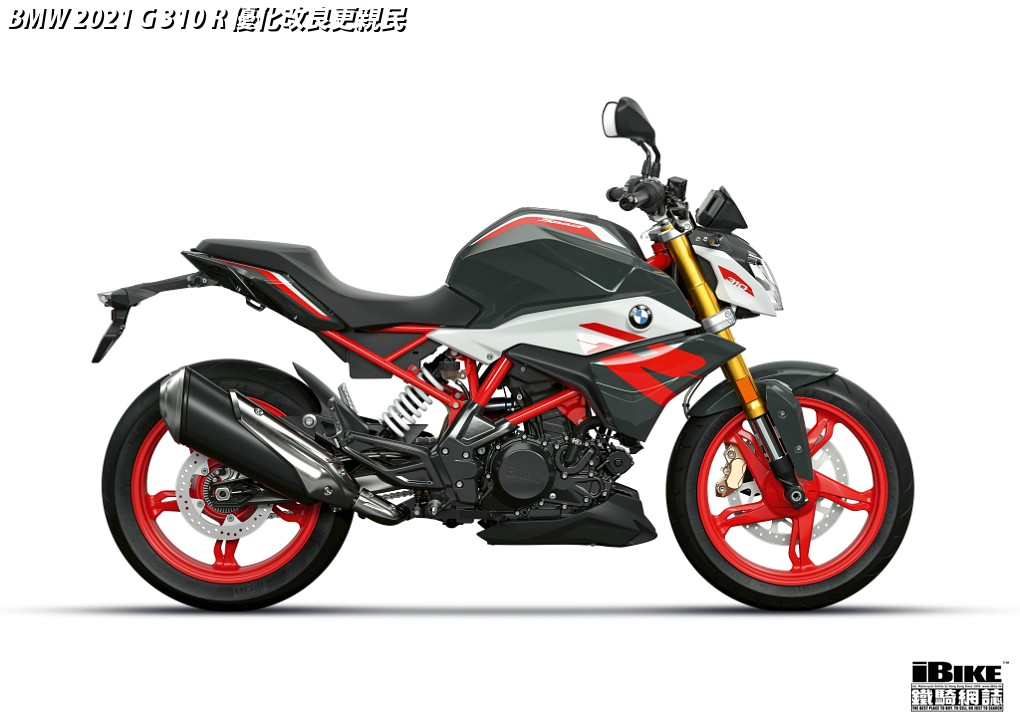

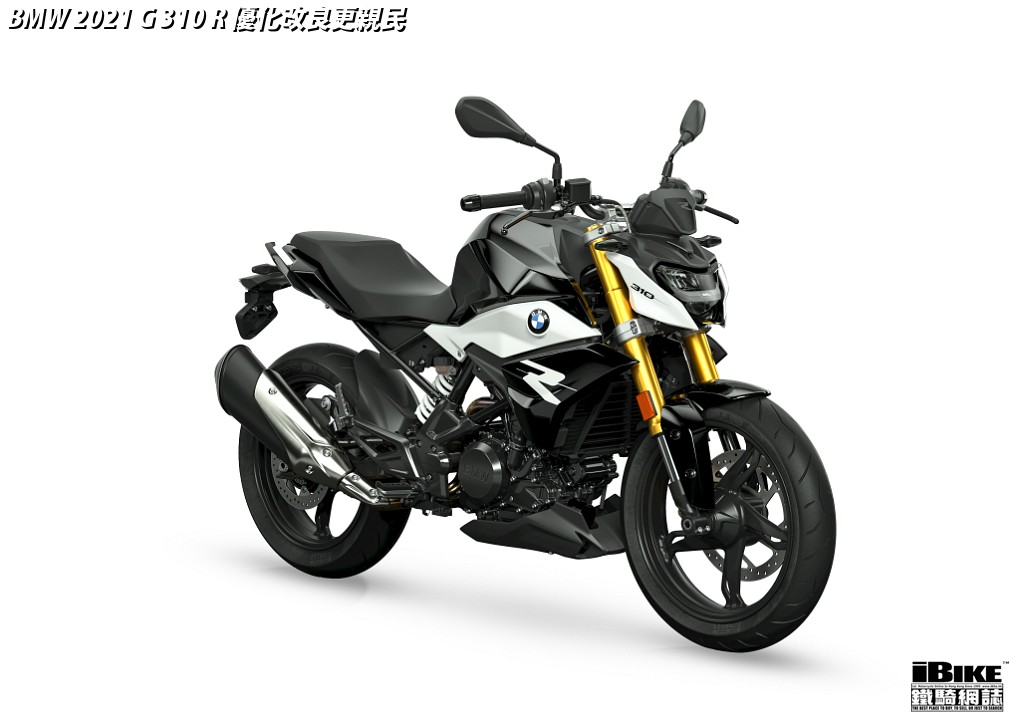

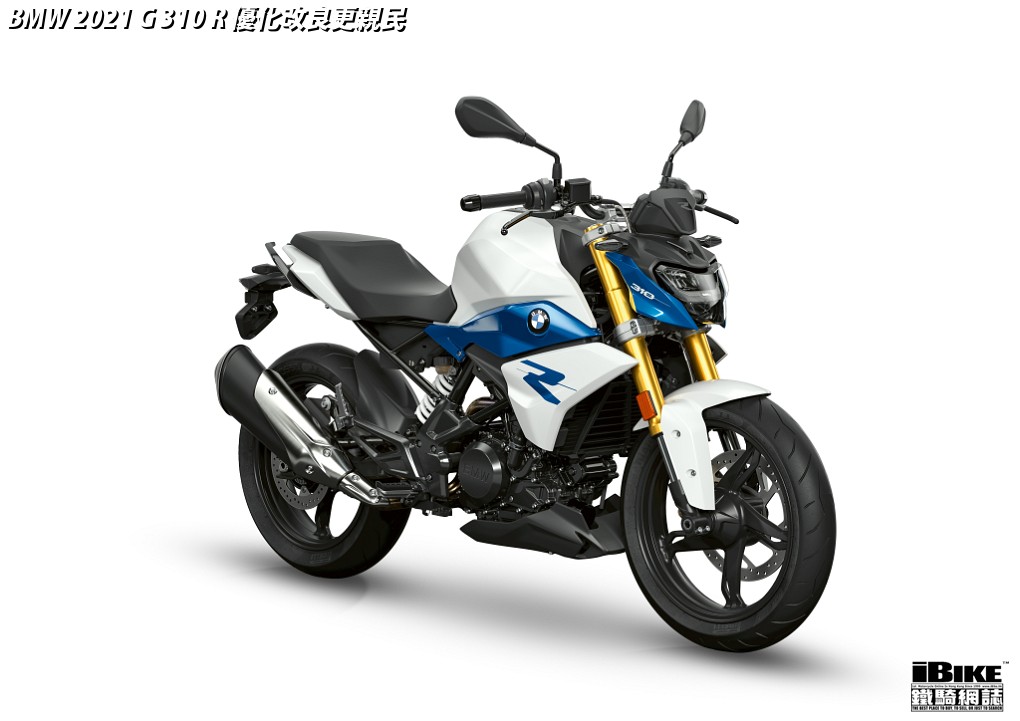

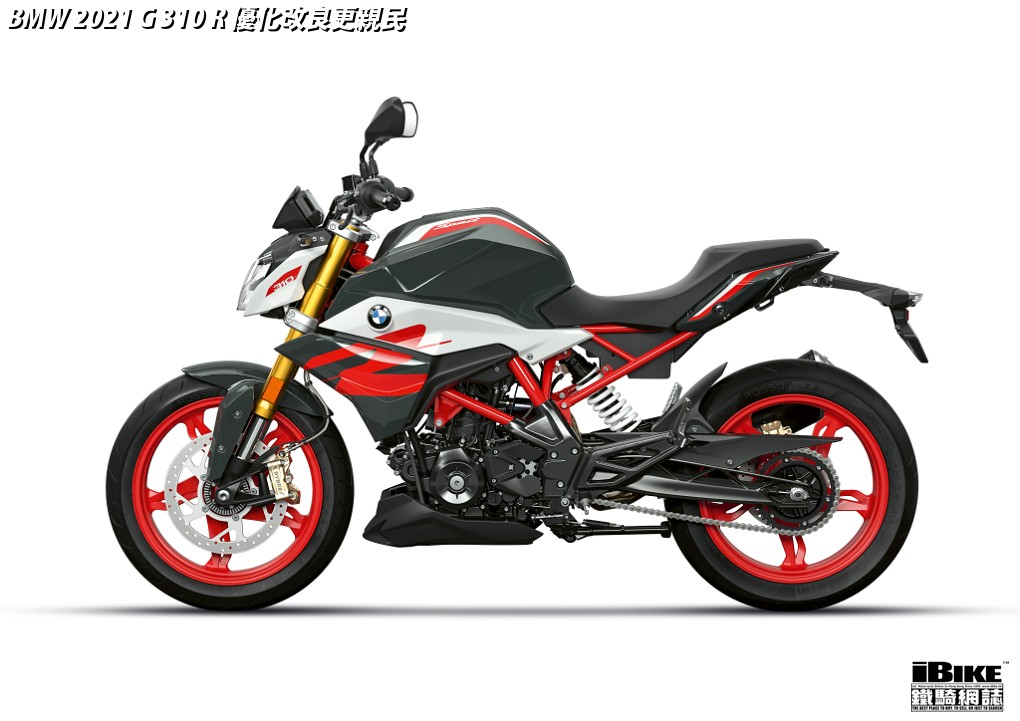

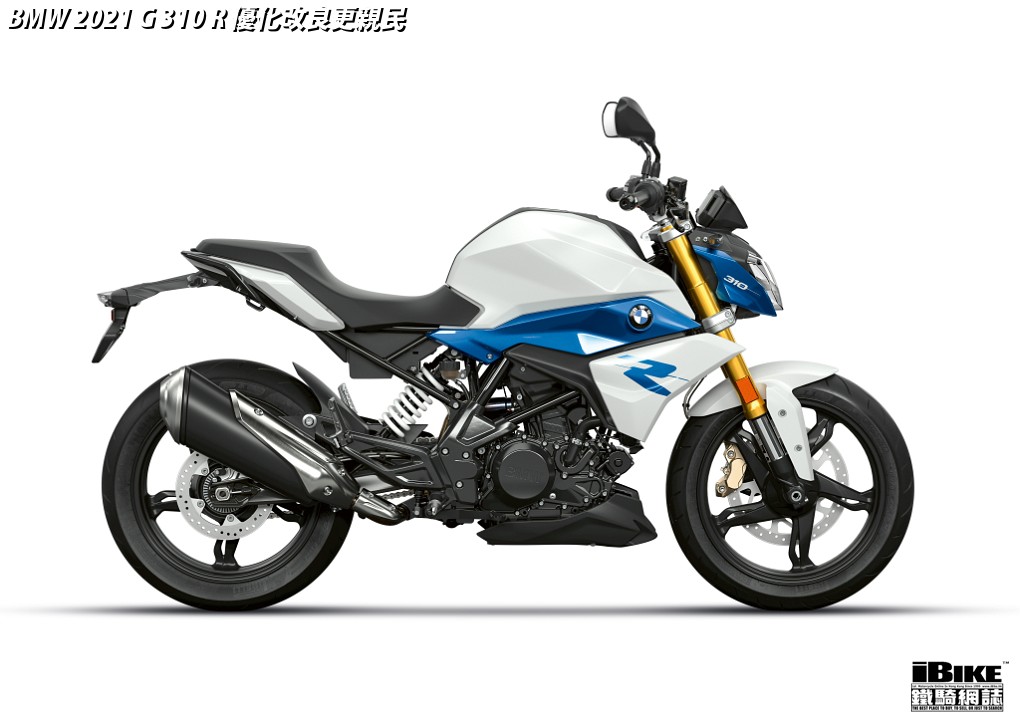

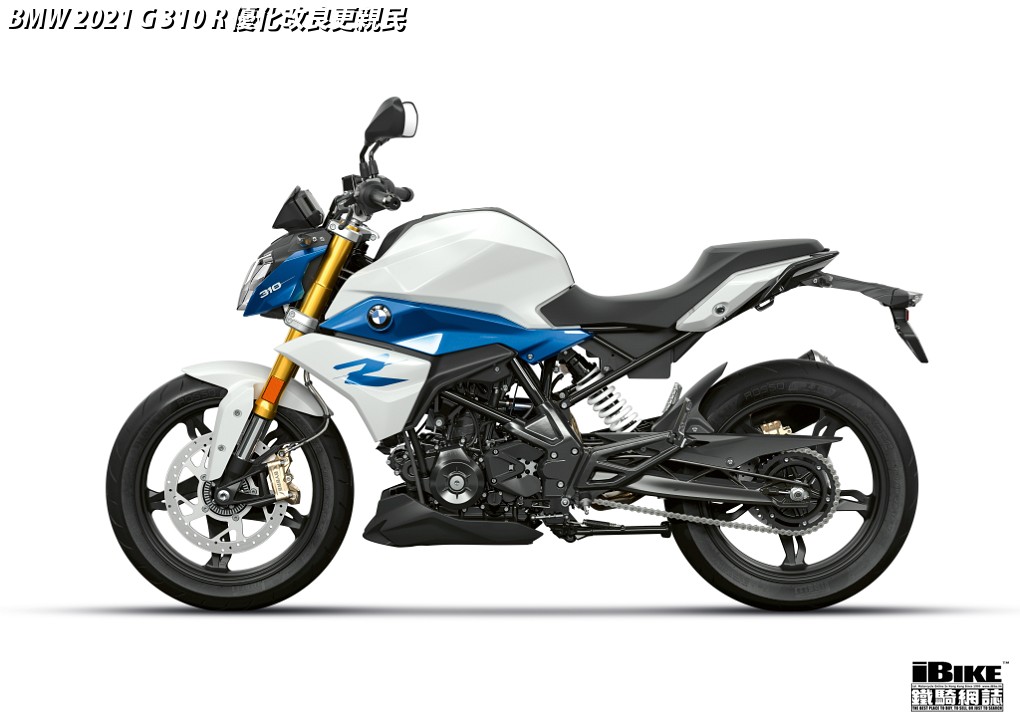

BMW G 310 R spec
Displacement 313cc Bore/Stroke 80/62.1mm
Power 34hp / 9,500 rpm Torque 2.85kg-m / 7,500rpm
Water-cooled single-cylinder four-stroke engine, four
valves per cylinder, rocker arm-confirmed, two overhead
camshafts and one counterbalance shaft, wet–sump
lubrication, e-throttle grip, idle lift Compression/Fuel
10.9:1 Valve/Throttle control DOHC Valves per cylinder
4 Ø intake/exhaust mm 33.5/27.2 Ø throttle valves mm
42 Engine control unit Electronic injection BMS-E2
Emission control 3-way closed-loop catalytic converter,
emission standard EU-5 Headlight W LED Transmission
six-speed multi-disc clutch in oil bath Frame design
Tubular spaceframe Front wheel Upside-down fork Ø 41mm
Rear wheel Drawn die-cast aluminium, directly hinged
central spring strut, spring base adjustable Spring
travel, front/rear mm 140mm/131mm Wheelbase 1,374mm
Steering head angle 64,9° Brakes Front Brakes
Single-disc brake Ø 300 mm, 4-piston radial brake
calliper Rear Brakes Single-disc brake Ø 240 mm,
1-piston floating calliper BMW Motorrad ABS Five-spoke
light metal die-cast wheels front 3.0 x 17" /
rear 4.0 x 17" Tyres front 110/70 R 17 / rear
150/60 R 17 Dimensions 2,005 x 849 mm Seat height
785mm fully fuelled ready for driving 158.5kg Fuel
tank 11L Fuel consumption (WMTC) l/100 km 3.33 Maximum
speed 143 km/h
|
