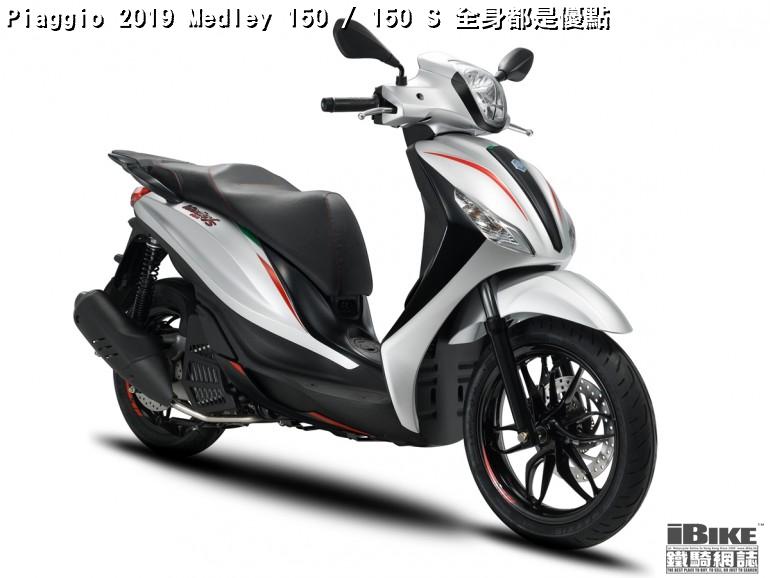

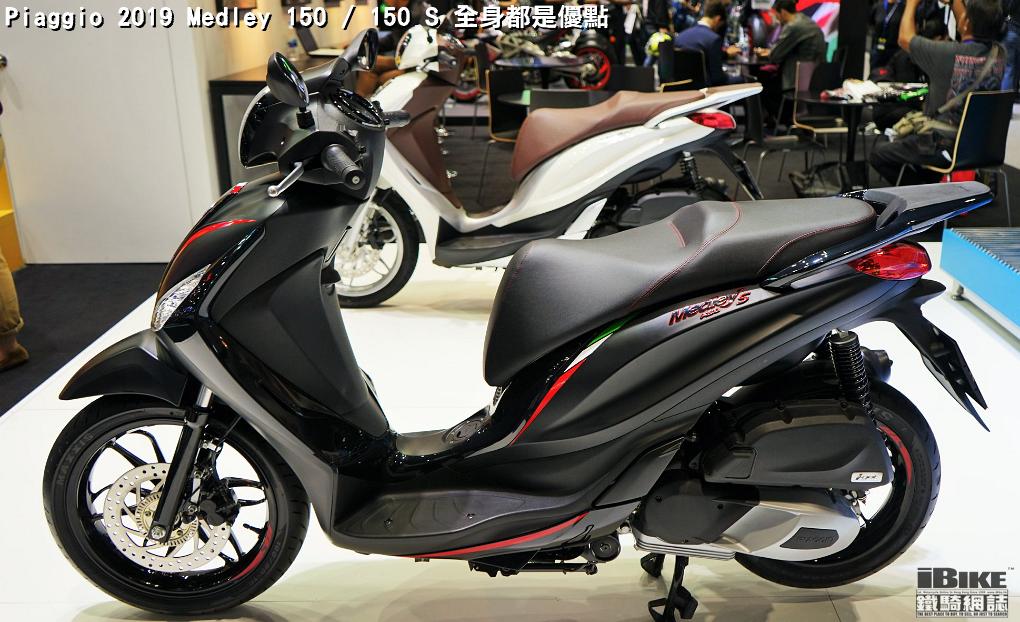

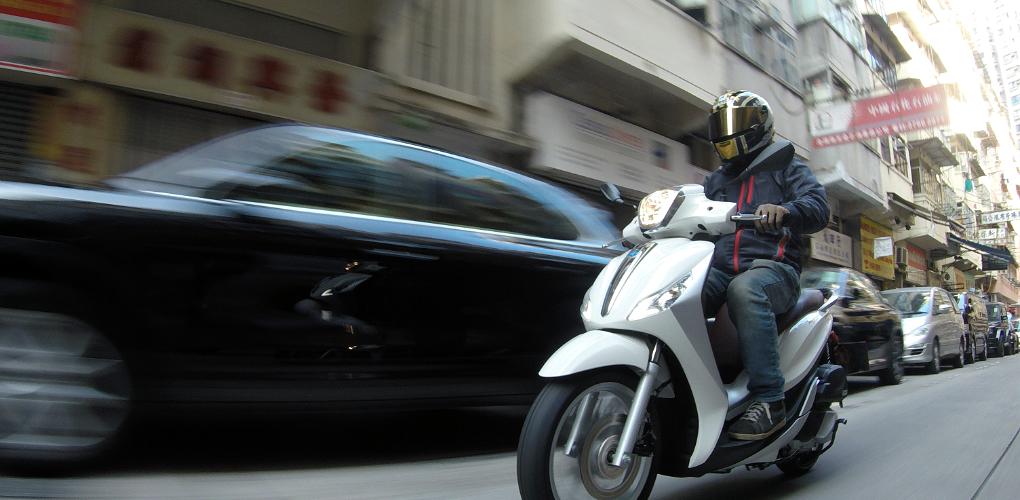

Piaggio Medley 150 | |

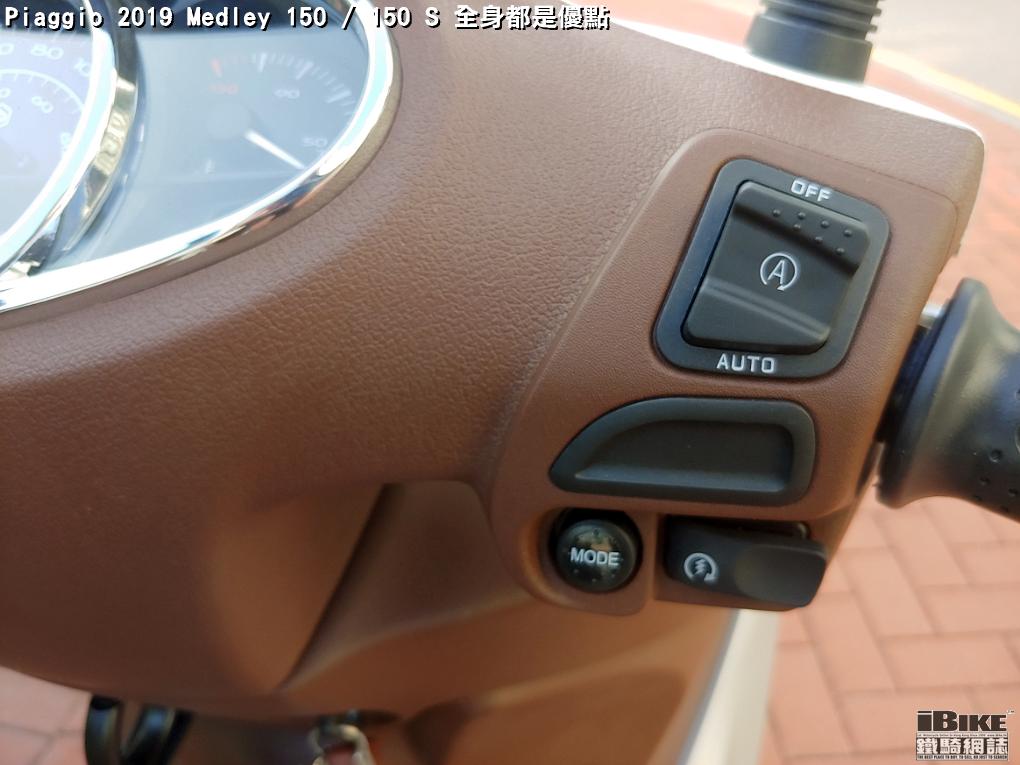

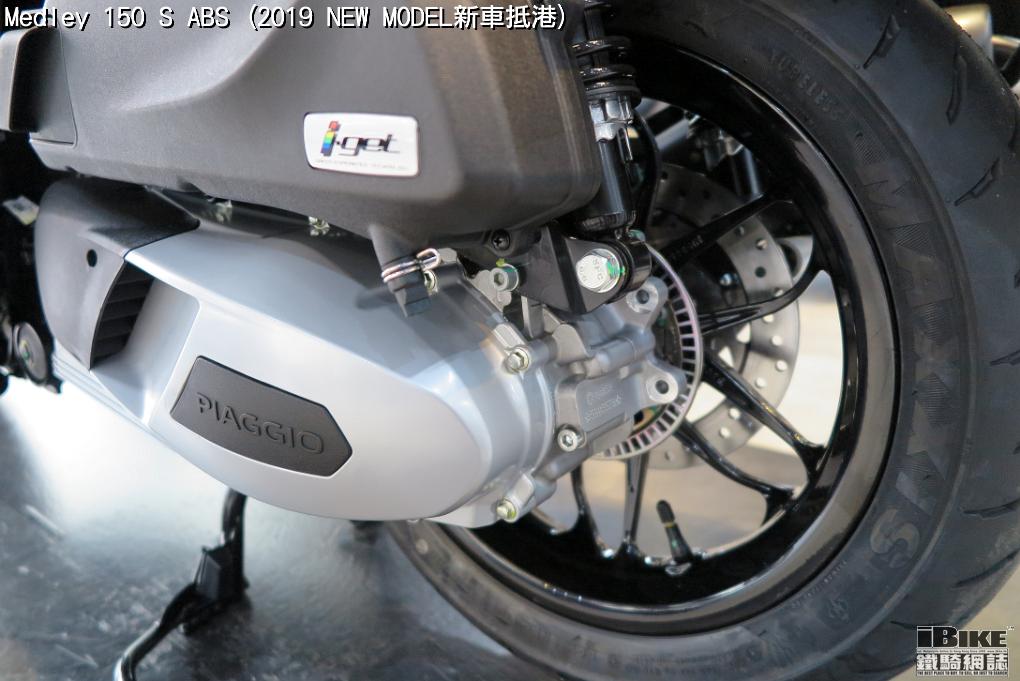

Engine Single cylinder, 4-stroke Piaggio i-get with “Start & Stop” system Displacement 155.2 cc Bore x stroke 58 mm / 58.7 mm Max power 11 kW / 7750 rpm Max Torque 14.4 Nm/ 6400 rpm Distribution Single overhead camshaft (SOHC) - 4 valves Cooling Liquid |
|
Fuel system Electronic injection Lubrication Wet sump Starter Electric |
|
Transmission Automatic continuously variable transmission
(CVT) with torque server Clutch Automatic centrifugal dry clutch Frame Single cradle structure in tubular steel with pressed reinforcements |
|
Front suspension Telescopic hydraulic fork, 88 mm stroke Rear suspension Hydraulic dual action shock absorber, 5-position spring preload adjustment, 76 mm stroke |
|
Braking system Bosch two-channel ABS 10.0 Front Brake Ø 260mm brake disc served by Ø 25.4 mm dual piston floating calliper Rear brake Ø 240mm brake disc served by Ø 22 mm dual piston floating calliper Front tyre Tubeless 100/80-16” Rear tyre Tubeless 110/80-14” |
|
Saddle height 799 mm Wheelbase 1390 mm Kerb weight 132 kg Fuel tank capacity 7 litres (including 1.5 litre reserve) |
|
Consumption (WMTC cycle) 46.7 Km/l Co2 emissions 55 g / Km Approval Euro 4 |
