Type
4 stroke, 4 valve liquid-cooled
Displacement
279cc (125cc)
Bore and Stroke
72 x 68.5mm (52.4 x 57.9mm)
Compression Ratio
10.5:1 (11.5:1)
Max. Power Output
18.5 kW @ 7,000 rpm (11.0kW @ 8,500rpm)
Max. Torque
27.2 Nm @ 5,750 rpm(12.5Nm @ 8,250rpm)
Oil Capacity
1.7 L (0.9L)
Carburation
PGM-FI
Fuel Tank Capacity
11.5 L
Fuel consumption
31km/l (42.7km/L )
Starter
Electric
Battery Capacity
12V-8.6 AH ( 12V-7A)
ACG Output
340 W @ r/min
Clutch Type
Automatic centrifugal clutch; dry type
Transmission Type
CVT
Final Drive
V-Belt
Underbone type; steel
Dimensions
2140 x 755 x 1470
Wheelbase
1510mm (1490mm)
Caster Angle
26.5°
Trail
89mm

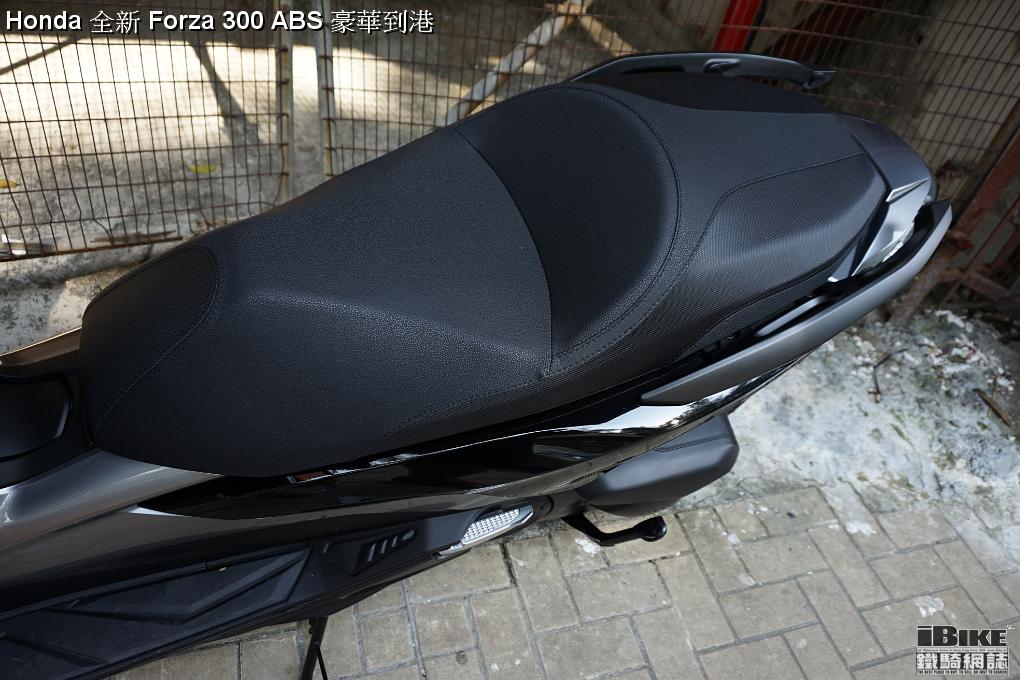

Seat Height
780mm
Ground Clearance
135mm (145mm)
Kerb Weight
182kg (162kg)
Turning radius
2.4m
Type Front
φ33 Telescopic
Type Rear
Twin Shock
Rim Size Front
15 inch
Rim Size Rear
14 inch
Tyres Front
120/70R15
Tyres Rear
140/70R14
ABS System Type
2 Channel
Front
φ256mm, single disc
Rear
φ240mm, single disc
