| Monster引擎和MTS 1200一樣，排氣量都是1198cc、缸徑和衝程都是106.0 mm x 67.9 mm，Testastretta 11° DS每汽缸雙火咀四汽閥L2水冷引擎。Monster R的引擎壓縮比高達13.0:1，比起MTS更高，不過沒有MTS的DVT可變閥門正時功能。 |
 |
| Monster
R頭尾避震都來自Ohlins出品，全調功能，但沒有MTS的半主動電子避震功能，避震行程也短很多。制動規格和MTS
1200一樣，都是Brembo同級出品。雖然Monster R有Ducati Safety
Pack，有Sport，Touring和Urban三重動力模式選擇，也有八段traction
control調較，但沒有MTS 1200先進的cornering ABS的功能，只有三種模式的ABS特性調較： 分別是制動力最強，同時容許尾輪可以升起的第一級，制動力最強但不容許尾輪升起的第二級和不容許尾輪升起和較柔順制動力的第三級設定。 |
 |
| 但Monster R比MTS 1200優勝的地方仍有很多。首先是輕身。Monster R乾重只有180kg，比MTS輕了32kg。如果計濕重，Monster R是207kg，MTS 1200是235kg，Monster R仍然輕了28kg。Monster R的軸距只有1509mm，比MTS 1200短了21mm。前傾角兩車雖然相近，但Monster R的拖曳距只有89mm，比MTS 1200少了20mm，令Monster R的轉向反應更直接。 |
 |
| Monster R的跑車化短行程避震，雖然沒有半主動式電子調較功能，但在舖裝路面上高速行車時，仍會比長衝程避震表現得更穩定。 |
 |
| 比較一下Monster R和MTS 1200尾制動碟的呎吋，Monster R的尾碟直徑是245mm，比MTS 1200少了20mm，便知道在煞車時，重量負苛轉移到頭輪的幅度，Monster R較高，操控特性更似跑車。 |
 |

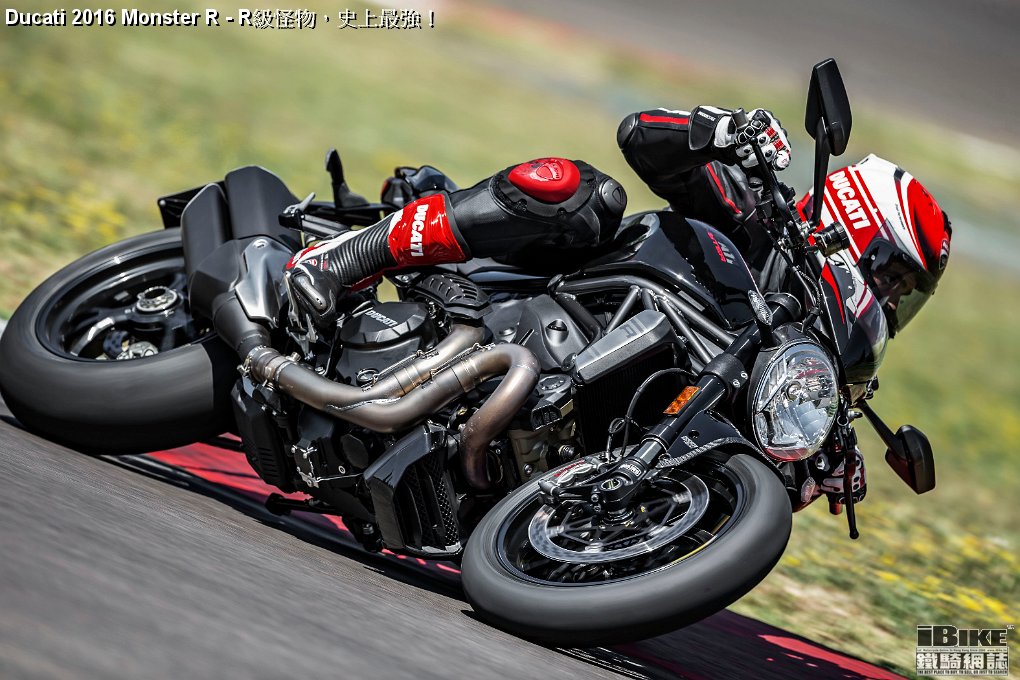

| R版車身最大傾斜角度，也比MTS和Monster S更多。R版配上 Pirelli Diablo Supercorsa SP高性能跑胎，尾胎直徑粗達200mm，提供更強的抓地力。 |
 |

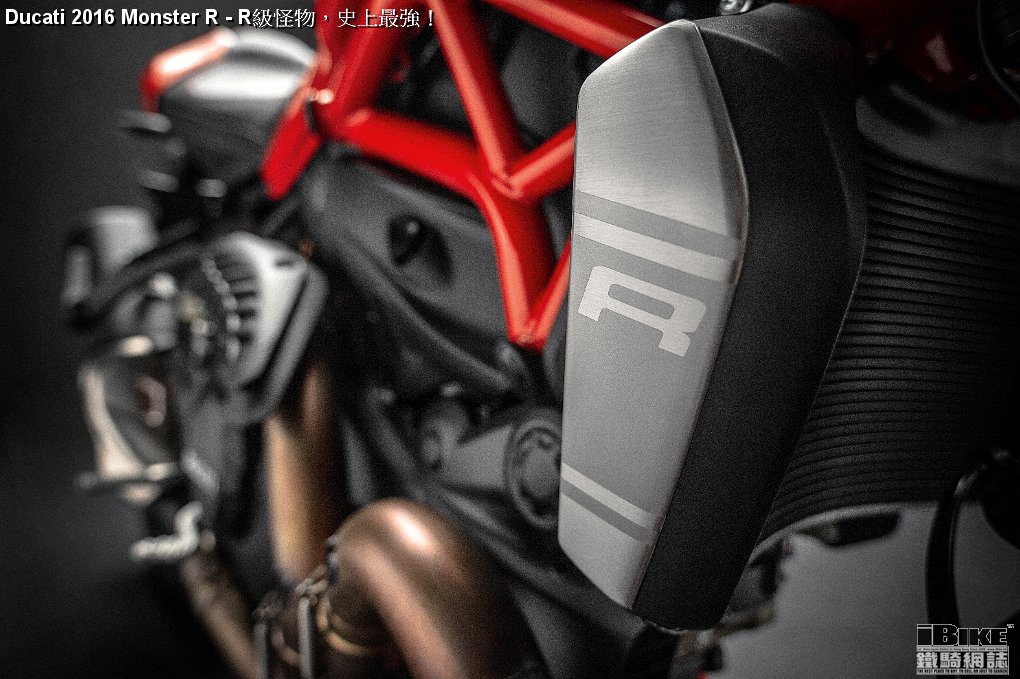

| Monster R車身多處展示著R的logo，包括車鼻、水箱兩側。車尾經過重新設計和簡化了尾牌架，有紅色和黑色兩款選擇。 |
 |
| Meet the Monster 1200 R,
the most powerful and sophisticated new addition
to the Monster family. The new Monster 1200 R
has been designed for all those who make sports
performance their lifestyle and wish to turn
each ride into an adrenaline-packed experience
without forgoing the essential, practical appeal
of a naked model. Equipped with a 1200 cc Testastretta 11° DS “R” version twin-cylinder engine, the Monster 1200 R takes the Ducati naked sports bike concept to the extreme. Compared to the Monster 1200 S engine, the twin-cylinder “R” version delivers 10% more power and 5.5% more torque. Its 160 hp and 13.4 kgm (97 lb-ft) torque turn the Monster 1200 R into a naked supersport bike able to show its true colours on a race track while making the rider feel perfectly comfortable during daily commutes - thanks to a full-bodied, smooth delivery at low and medium RPM. |
 |
| The “R” spirit
that inspired the new Monster 1200 is
immediately recognisable in its completely
redesigned, compact, lightweight and high-slung
tailpiece, seat and high-mounted plate holder.
The bike set-up and technical features are in
line with the power rating of its “R”
twin-cylinder engine. The latest naked model out
of the Ducati factory features a higher stance
than the Monster 1200 S, for more extreme lean
angles and to make the most of the Pirelli
Diablo Supercorsa SP tyres. At the rear end,
grip is guaranteed by the 200/55 x ZR17 size
tyres. The Monster 1200 R is equipped with new suspensions and Öhlins steering damper, and separate rider and passenger footpegs to enhance its racing-inspired riding experience. The new naked sports model by Ducati is even lighter than the S version thanks to the new tailpiece, forged wheels, and carbon fibre components - bringing the total dry weight down to 180 kg (397 lb). |
 |
| The nose fairing,
radiator trim with engraved “R” logo, and the
two available colour schemes - Ducati Red and
Thrilling Black – give this bike the
unmistakable, sophisticated, sport-inspired
Ducati touch. The Monster 1200 R is also equipped with the Ducati Safety Pack including the ABS and Ducati Traction Control systems to enhance vehicle performance, optimise control and improve overall riding safety. This package is managed by three different Riding Modes (Sport, Touring and Urban): three different Monster R 'souls' delivered by different settings of the power mode, the ABS and Traction Control systems. |
 |
| Design
- The iconic Monster design of the tank blends
with the sport-inspired, elegant lines of the
rear, creating a compact, lightweight assembly
immediately evocative of high performance and
power. The Monster 1200 R has been substantially
revised to make it visually compact, lightweight
and high-slung. The single-piece rider and
passenger seat is shorter and thinner if viewed
from the side, with a tapered, sharp-edged look
in the passenger section. This motorcycle's higher stance features an increased gap between the tyre and seat assembly, making the rear look more streamlined, further enhanced by the new design of the high-mounted aluminium plate holder, fully exposing the 200/55 rear tyre; both the rear and the front tyres are mounted on 3-spoke, Panigale R-inspired forged wheels. The new, separate rider and passenger footpegs are unmistakably race-derived and create a more streamlined side view - also enhanced by the new, oversized exhaust in line with Euro 4 standards and perfectly integrated with the new rear design. The finishing touches to the Monster 1200 R design can be seen in the nose fairing and the longitudinal graphic pattern inspired by the iconic Ducati Corse stripe. The exclusive character of this model is reflected in the painstaking care for detail: the radiator metal covers have a graphic "R" design obtained by sand-blasting, while the bi-material seat has contrasting seams and a metal plate bearing the name of the model. |
 |
| Engine
- The new Monster 1200 R is powered by the “R”
version of the liquid-cooled 1.198,4 cc
Testastretta 11° DS engine with 4 valves per
cylinder. The Monster 1200 engine version has
been revised to increase its efficiency to a
maximum power of 160 hp (117.7 kW) at 9,250 rpm
and a maximum torque of 13.4 kgm (97 lb-ft) at
7,750 rpm, whilst maintaining smooth delivery at
low and medium RPM, typical of latest-generation
Testastretta 11° DS power units. The Monster
1200 R engine is in line with the Euro 4
pollution control standards. The Monster 1200 R's Testastretta 11° Dual Spark engine is equipped with a new 2-1-2 exhaust system with 58 mm diameter pipes and redesigned twin silencers. Although their routing has not been changed, the exhaust pipes have a new cross-section with a diameter that's been increased by 8 mm to boost engine efficiency which now breathes better thanks to a new throttle body. The original round design with 53mm-diameter bodies featured on the Monster 1200 has been replaced in the new version by a larger, oval section design with a 56mm equivalent diameter. A lower-height cylinder seal has made it possible to increase the compression ratio from 12.5:1 to 13:1, improving combustion efficiency. Compared to the twin-cylinder version powering the Monster 1200 S, the "thrust" of the “R” version remains strong and vigorous beyond 7,000 rpm, adding extra power and torque throughout the rev range. A thrilling experience on track, where all the potential of this engine unravels for maximum excitement as the rider long-shifts through the gears all the way up to 10,200 rpm. During road use, at lower RPM, delivery is consistently smooth and responsive to throttle opening, with 75% of the torque already available at 3,500 rpm. |
 |
| Wet clutch with ‘slipper’ function - The Monster has a wet clutch with ‘slipper’ function actuated by a Brembo master cylinder. Thanks to its progressive self-servo mechanism, it can be operated smoothly and progressively. 15,000 km (9,000 miles) or 12 month intervals are recommended between major services, with valve clearance adjustment checks only required every 30,000 km (18,000 miles). |
| Frame - As with the rest of the Monster family, the signature Trellis frame remains a feature of the Monster 1200 R, with attachment points directly on the cylinder heads, a race-derived solution pioneered by the Panigale for the first time in the world of production motorcycles. Thanks to this configuration, the resulting frame is highly compact and lightweight and, with large cross-section pipes, it offers massive torsional strength - a characteristic which enhances the dynamic profile of the Monster 1200 R. The rear sub-frame is also attached directly to the engine, creating a compact structure designed to support the new passenger footpeg brackets - now a separate design from the rider's, to guarantee greater freedom of movement for the best road and track sports riding experience. The rider and passenger footpeg mountings are made of forged aluminium and support aluminium billet-machined footrests with a surface pattern designed for enhanced boot grip during riding. The rider's footpegs have aluminium heel guards in line with the sports character of the new Monster. To ensure lean angles suitable for track use, the chassis set-up has been raised by 15 mm both at the front and at the rear end, and the seating height has been adjusted to 830 mm (32,7 in) accordingly. The ‘ergonomics triangle’ has been preserved to ensure a natural riding position and improved control during both road and track use and help the rider complete more laps with less effort. |
| Weight reduction - Another major focus of attention was weight reduction. The new tailpiece, wheels, carbon fibre parts and the new footpegs together made for a 2kg (4.4lb) weight saving - down to a total dry weight of 180kg (397lb). A critical factor in weight saving was the use of forged wheels - making the Monster R even more agile in tackling corners thanks to the reduction in unsprung weight and inertia. |
 |
| Suspension - The high-tech suspension system features new, fully adjustable dia. 48 mm titanium nitride-coated Öhlins forks with black-anodised bottoms and bodies and a fully adjustable Öhlins rear shock. Operating through a progressive linkage, the rear suspension attaches directly from the rear vertical cylinder to the die-cast aluminium single-sided swingarm at the opposite end. The Öhlins suspension package is completed by the adjustable steering damper that controls handlebar movement under heavy acceleration and enhances the sports inspiration of the instrument panel view. |

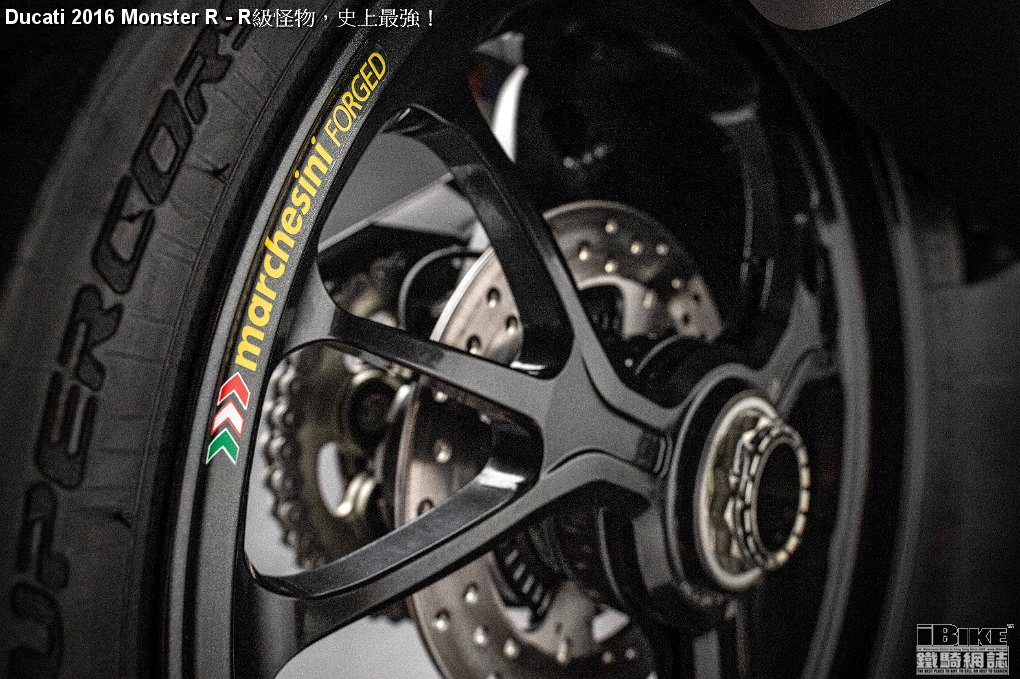

| Wheels and tyres - The Monster 1200 R features 3-spoke light alloy forged wheels inspired by the Panigale R design and is fitted with Pirelli DIABLO™ Supercorsa SP tyres - 120/70 ZR17 at the front and 200/55 x ZR17 at the rear. DIABLO™ Supercorsa SP is applied technology at its best: embodying all the experience and racing expertise acquired by Pirelli as the sole supplier to the World Superbike Championship since 2004, this tyre designed for road use can offer the ultimate racing experience, allowing the user uncompromised enjoyment of a top-performance product both on the road and the racetrack. The structures and compounds of the DIABLO™ Supercorsa SP, directly derived from WSBK competitions, optimise the performance ensured by the tyre profiles. The 200/55 ZR17 rear tyre in particular has a carcass made from high-module fibre and a bi-compound tread with polymers ensuring quicker tyre warm-up and constant grip in any riding condition. The perfectly paired front and rear profiles ensure greater handling and agility. The bi-compound tread pattern features long longitudinal grooves, expanding from the central profile area to the shoulder, ensuring regular wear even in the harshest riding conditions. The distinctive element of the DIABLO™ line is a 'naked' shoulder area, ideal for sports riding where maximum adhesion and constant grip are a must. |
 |
| Braking system - The Monster 1200 R braking system is the very best of the Brembo production range and includes twin radially-mounted M50 Monobloc callipers gripping 330 mm discs at the front - the same components that are part of the equipment of the 1299 Panigale supersport model, actuated by a master cylinder with remote reservoir. At the rear, the Monster 1200 R features one 245 mm disc gripped by a single Brembo calliper with sintered friction material pads to improve efficiency. The braking system is controlled by the triple stage ABS Bosch 9MP system - which can be disabled by the user. |
| Ducati Safety Pack (DSP) - The Monster 1200 R is equipped with the DSP (Ducati Safety Pack) system including the ABS and Ducati Traction Control systems to enhance vehicle performance, optimise control and improve overall riding safety. This package is managed by three different Riding Modes (Sport, Touring and Urban): three different Monster R 'souls' given by different settings of the ABS and DTC (Ducati Traction Control) systems. |
| ABS - The Monster 1200 R standard equipment includes a Bosch ABS 9MP controlled Brembo braking system with an integrated pressure sensor as part of the Ducati Safety Pack (DSP). The 3-level system provides shorter stopping distances with enhanced stability in any riding condition by being fully integrated with the Riding Modes. While level-1 of the system enables a sport-oriented ABS intervention with no rear lift prevention, level-2 delivers the same intervention with rear lift prevention activated. Level-3 provides outstanding braking stability and rear lift prevention. The ABS action can be disabled in any Riding Mode and will not be reactivated upon the next Key-On. |
| Ducati Traction Control (DTC) - The DTC (Ducati Traction Control) is able to detect and control rear wheel-spin, considerably increasing the bike’s active safety and performance. The Monster 1200 R uses the very latest DTC software, optimised to guarantee seamless response to ignition advance only. The system offers eight ‘sensitivity profiles’, each set to offer a level of rear wheel-spin tolerance in line with progressive levels of riding skills, classified from one to eight. Level one is programmed to offer the least amount of interaction while level eight uses the highest degree of interaction. DTC levels are factory pre-set in each of the three Riding Modes, but can be individually customised and saved to suit the rider's characteristics by accessing the set-up menu within each mode. The DTC action can be disabled in any Riding Mode and will not be reactivated upon the next Key-On. |
| Ducati Riding Modes - The Ducati Riding Modes offer different factory settings designed to optimise vehicle behaviour according to riding styles and environmental conditions. The Monster 1200 R comes equipped with three Riding Modes (Sport, Touring and Urban) - each programmed to adjust the Ride-by-Wire (RbW) engine control system and the ABS and DTC intervention levels. The modes are made possible by combining a number of class-leading technologies. If the Riding Modes can be changed while riding, the customised setting of ABS and DTC can only be changed when the bike is stationary with the throttle closed. |
| Sport -
The Sport Riding Mode provides 160 hp (117,7
kW), delivered with direct Ride-by-Wire throttle
response, reduced DTC system intervention (level
3) and ABS high braking performance (level 1)
with no lift prevention. Touring - The Touring Riding Mode provides 160 hp (117,7 kW), delivered with a more progressive Ride-by-Wire throttle response, increased DTC system intervention (level 4) and ABS-controlled lift prevention (level 2). Urban - The Urban Riding Mode provides 100 hp (73,5 kW), delivered with a progressive Ride-by-Wire throttle response, further increased DTC system intervention (level 6) and ABS ensuring maximum braking stability and lift prevention (level 3). |
 |
| Thin Film
Transistor (TFT) colour instrumentation
- The Monster 1200 R dashboard has a
latest-generation TFT colour display. The
display has three different layouts, named Core,
Full and Track, each designed to display
information suitable for different uses, now
with a selected gear indication in each display
screen. In the Urban Riding Mode the display adopts the Core layout, offering the bare minimum of information in line with urban use. The vehicle speed becomes the most obviously visible piece of information at the centre of the screen, with indication of the gear selected on the right. In the Touring Riding Mode the display changes completely to the Full layout, delivering the maximum amount of information required during a longer trip. In the Sport Riding Mode the display switches to the Track layout, offering only the information required when sports riding. The graphic rev-counter recalibrates itself according to a Superbike-derived layout. The Monster 1200 R TFT screen is customisable and the user can choose a preferred display, regardless of the selected Riding Mode. |
 |

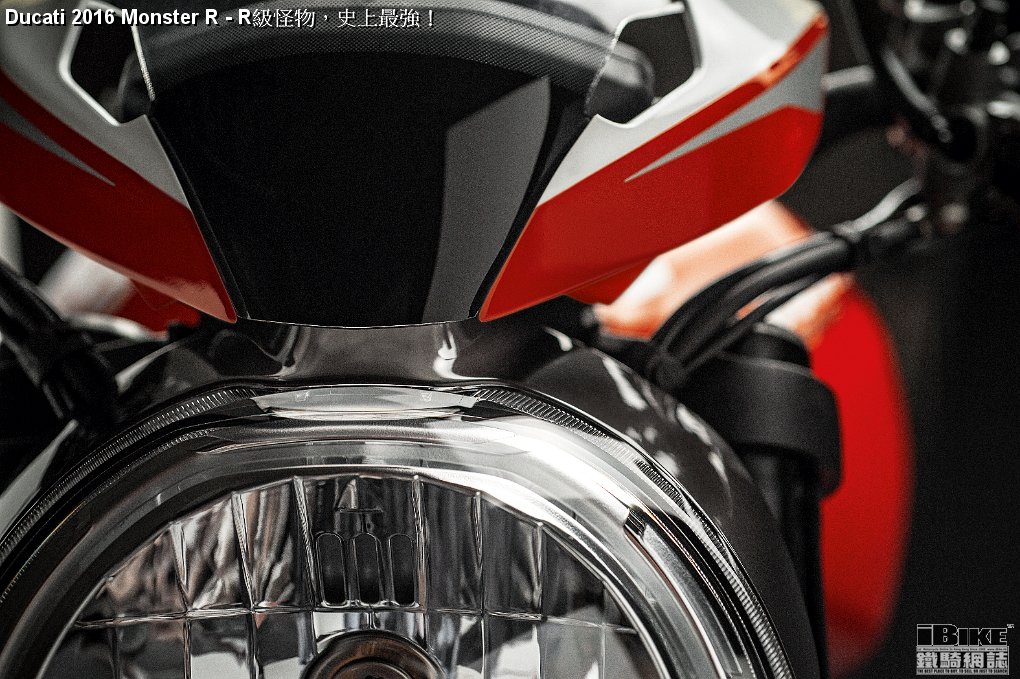

| Lighting - The Monster 1200 R's headlamp unit uses halogen main light illumination with LED position lights on either side and full LED lighting for the beautifully shaped rear and brake light illumination. LED technology is also used for the directional indicators which also sport a hazard light function, activated by holding the left-turn signal button for four seconds. |
| • Colours 1. Ducati Red with R livery, Ducati Red frame and Dark Chrome wheels 2. Thrilling Black with R livery, Dark Chrome frame and wheels |
| • Standard
equipment highlights o Testastretta 11° DS, 1198,4 cc, 160 hp “R” version engine o Exhaust with pentagonal section twin silencers o Euro 4 conformity o Sport seat with model ID plate o New design passenger seat cover o Separate rider and passenger footpeg supports o Billet machined footpegs o Nose fairing o Carbon fibre front fender o 3-spoke forged wheels fitted with Pirelli Diablo Supercorsa SP tyres, 120/70 ZR17 at the front and 200/55 x ZR17 at the rear o New 48 mm adjustable diameter Öhlins forks o New Öhlins adjustable shock absorber o Öhlins adjustable steering dumper o 3 Riding Modes o Ducati Safety Pack (3-level ABS, 8-level DTC) o Colour TFT instrumentation display |
 |

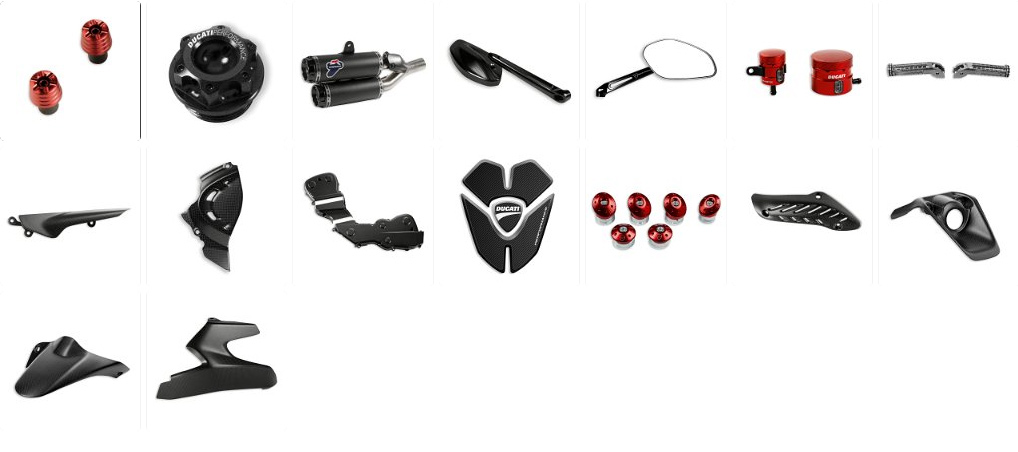

| ACCESSORIES 1. Carbon cover for single-sided swinging arm Combines aggressive design and stylish accents. 2. Carbon fiber rear mudguard Designed for single-sided swing-arm. It protects the under-tail of the bike while enhancing appearance versus the OE version. 3. Carbon ignition switch cover Enhances the look of the bike versus the OE plastic version. Details that make a difference. 4. Carbon heat guard for standard and racing manifolds High temperature protection with an added touch of style. 5. Set of billet aluminium frame plugs Painstakingly machined on NC machines, these aluminium frame plugs blend seamlessly into the Monster lines for an added stylish touch. 6. Adhesive carbon tank protection Surface protection resin. Made op of three parts, it avoids the contact with the jacket and pants zippers which could scratch the paint. 7. Carbon belt guards To protect timing belts. 8. Front sprocket cover Made from carbon fiber. 9. Carbon chain guard Safety and style merge together only to be emphasized by the black look of carbon fiber. 10. Billet aluminium rider footpegs Design and material minimize weight while their machined finish enhances rider grip to the pegs. 11. Brake and clutch fluid reservoirs Made from billet aluminum with anodized finishing. A high-quality accessory that enhances the bike’s look. 12. Billet aluminium rearview mirror Decisive shape and rich in style. Homologated for road use. 13. Carbon racing silencers With dedicated mapping and removable dB killer, this slip-on silencer system, produced by Termignoni, unleashes the sound and power of the Monster. 14. Oil filler plug Precious detail with valuable machining and colour set on clutch casing. 15. Anodized billet aluminium handlebar weights Careful machine tooling of the aluminum is followed by an anodizing process that provides an elegant surface finish for this prestige component. |
|
|
| 2016 DUCATI MONSTER 1200 R 規格表 |
|
引擎形式 四衝水冷L2 Testastretta
Desmodromic 缸徑x衝程 106.0 mm x 67.9 mm 壓縮比13.0:1 總排氣量 1198.4cc 最高馬力 160hp/9,250rpm 最大扭力 13.4kg-m / 7,750rpm |
|
電子系統 Riding Modes, Power Modes, Ducati Safety Pack
(cornering ABS + DTC), Ducati Wheelie Control, Cruise
control, Full Led headlamp with Ducati Cornering Lights, Hands-Free, BacKlit handlebar switches, Bluetooth modul for multimedia system, Anti-theft preparation |
|
車架形式 Trellis編織式鋼管車架 傳動系統 Self-servo濕式多片滑式極力子，六前速鏈傳動 燃油供應 電噴系統、電子油門、56mm口徑節氣閥 前傾角 ( R)24°3 拖曳距 (T) 89mm |
|
前懸掛系統 Ohlins 48mm全調功能倒叉、130mm行程 後懸掛系統 Ohlins漸進式連桿單筒避震、全功能調較、鋁合金單搖臂、159mm行程 前/後輪圈 Tri-W鍛造鋁合金，3.5 / 6.0 x 17 輪胎 Pirelli Diablo Supercorsa SP，前120/70-17 後200/55-17 前制動 2x330mm半浮煞車碟配Brembo Evo M50 4 pot卡鉗、放射手泵、ABS 後制動 245mm煞車碟配兩活塞制動卡鉗 |
|
長x闊x高 -- x -- x -- 軸距 1509mm 座高 830mm 最低離地距 -- mm 車重 180kg(乾) 207kg(濕) 油缸容量 17.5公升 |
