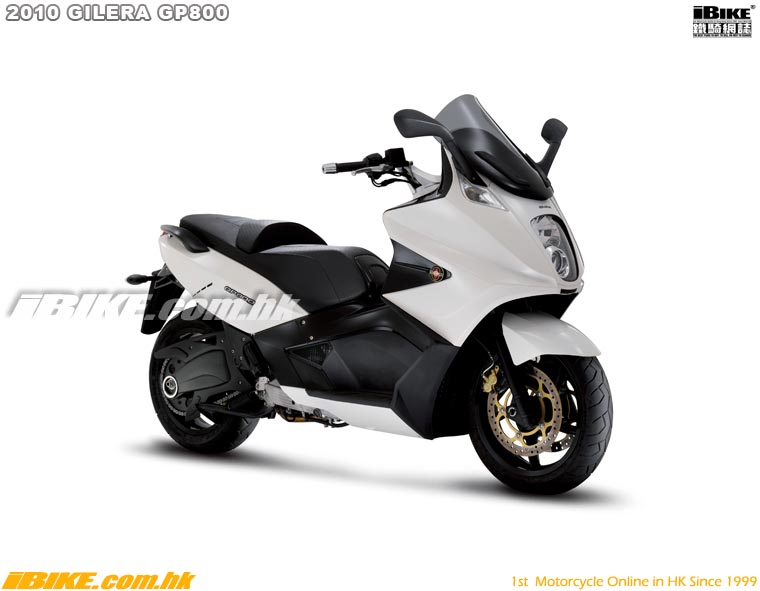

2010 GILERA GP 800
新車速報 11 Nov 2009 |
世上最強最快的綿羊Gilera GP800,在2010有改良項目令產品更細緻動人。839cc V2 SOHC每汽缸4氣閥雙點火引擎,車架採用中置式引擎設計,引擎和尾搖臂分家,不會依隨著尾搖臂動作上下擺動,令重心前移,帶出真正電單車的操控感覺。相比起Silverwing和AN650的GT巡航路線,GP800的外型走T-MAX式的運動型路線。單騎車身傾斜角度可達45度,極速約200km/h,0-100km/h加速只需5.7秒。別忘記這是世界上唯一採用鏈傳動的終極綿羊。綿羊dream
bike莫過於此。
|
For 2010, Gilera
GP800 has been given a more modern style with new and elegant accents, and
it will even be more functional. Details like the new saddle opening and
support device, a rug for the under-seat storage area and the new flexible
coupling further exalt the comfort and convenience of the world's fastest
scooter. |
|
GILERA GP 800
A powerful 75 HP 90° V-twin, 839 cc, 4 valves per cylinder, a double
cradle steel frame, a motorcycling type of swingarm and chain final
drive: these are the special ingredients for the most powerful and
fastest scooter in the world.
For 2010, Gilera GP800 has been given a more modern style with new and
elegant accents, and it will even be more functional. Details like the
new saddle opening and support device, a rug for the under-seat storage
area and the new flexible coupling further exalt
the comfort and convenience of the world's fastest scooter.
The most powerful on-road machine produced by Gilera simply defies
definition.
Riding a Gilera GP 800 is a totally new and exclusive experience.
The power of its amazing 75 bhp engine is tamed by a superbly rigid
frame and transmitted to the road by a unique chassis. The
Gilera GP 800 offers all the comfort and convenience of a scooter around
town, plus the performance of a true sport tourer on the
open road. And when stationary, the GP 800’s aggressive beauty simply
exudes power and technology.
AMAZING!
The Gilera GP 800 has been created to amaze.
And amaze it does, from the very first glance. The GP 800’s impressive,
dynamic and clean lines are inspired by the best Italian motorcycling
traditions. The chassis features a double cradle, steel tube frame. The
90° V twin engine boasts electronic ignition, 4 valves per cylinder, and
liquid cooling. This engine marks a turning point in scooter evolution,
and gives the Gilera GP 800 the sort of performance that no other
scooter can rival. The GP 800 is designed uncompromisingly, to satisfy
the most demanding sport tourer rider. |
|
The Gilera GP
800 is designed for the rider who wants all the practicality of a
scooter but longs for the sort of performance and
emotions that until now only a motorcycle could hope to deliver.
Even urban commuting becomes a whole new, thrilling and satisfying
experience. The Gilera GP 800 boasts the unbeatable usability of a
scooter, thanks to elegant, stylish and classical sporting lines, great
manoeuvrability, automatic CVT transmission with plenty of engine
braking, perfect ergonomics and the carrying capacity of the classic
under-seat storage compartment.
But the destiny of the Gilera GP 800 is sure to be determined by its
unique performance. Power, top speed, and acceleration are all
unprecedented, so it’s only natural to look beyond the city for
satisfaction. The Gilera GP 800’s advanced engine and chassis
really show their mettle on country roads, opening up new horizons for
medium and long range touring.On the open road, the excellent protection
afforded by the leg shield and electrically adjustable windshield
deliver unrivalled comfort for rider and passenger.
Motorways to the beach, mountain passes, and twisting country roads –
the world in front of the Gilera GP 800 knows no frontiers.
Well beyond where scooters have ever gone.
THE ONLY ENGINE OF ITS KIND IN THE WORLD
Everything about the Gilera GP 800 has been designed, developed and made
to rule the road. Each individual stylistic choice and technical
solution speaks of a revolutionary machine, conceived around the first
ever 90° V twin scooter engine, and designed to dominate the world of
scooters. The 839.3 cc engine features liquid cooling, Magneti Marelli
electronic fuel injection, a single cam, 4 valves per cylinder and twin
spark ignition. It develops a mighty 75 bhp at the crank with a torque
of 73 Nm, 95% of which is already available at 3,500 rpm. These
specifications are totally unique in the scooter world. On the road they
translate into an extraordinary reserve of constantly available power
and a uniquely smooth ride. Thanks to CVT (continuously variable
transmission) with engine braking effect, urban commuting is effortless
and relaxing, with the ideal ratio automatically selected. But when the
road leaves the town and opens up, the GP 800’s V twin engine really
comes into its own, placing Gilera’s flagship scooter in a class of its
own. |
|
|
The Gilera
GP 800 engine features dry sump lubrication, and is secured rigidly
to the frame by vibration-damping rubber mountings. Final drive can
therefore be entrusted to a robust but sophisticated, Regina Z-ring
sealed chain.
The exhaust system is totally decoupled from the frame to minimise
vibrations. This 2-in-1 system terminates in an aggressively styled
silencer with a black heat shield that adds plenty of character to
the styling of the GP 800, and emphasises its elegant but sporting
nature.
The amazing performance of the GP 800’s V twin engine have been
achieved in full respect of the environment. Emissions have been
minimised by an advanced closed loop injection system with Lambda
oxygen sensor and an exhaust with three-way catalytic converter.
Fully integrated control of the electronic ignition system also
ensures that the GP 800 conforms to strict Euro 3 standards.
The twin cylinder power plant has been designed, developed and
manufactured entirely in Pontedera, the historical home of Piaggio
and one of the world’s most advanced engine development and
production centres. This engine is born from the challenge that the
Piaggio Group has taken on: to offer an ever more sophisticated
customer a product that guarantees performance, reliability and
safety while also leading the field in respect for the environment.
A TRULY IMPRESSIVE CHASSIS
The Gilera GP 800’s double cradle frame has been designed around the
engine to embrace it and convert its exuberant power into rigorous,
precision control. The frame is made from a tubular steel trellis
with steel reinforcement and strengthening plates.
Excellent torsional and flexural
rigidity has been built in at all stages of the development and road
testing process, to deliver an amazing sense of control. The Gilera
GP 800 corners like a sports motorcycle, reaching angles of lean of
45° while still delivering neutral handling and amazing road
holding. |
|
The GP 800 holds the
most precise lines through fast bends, obeying rider input at all
times without ever exceeding performance limits. Absolute control is
the result.
With its new steering angle greater
than the previous version, the GP800 acquires manoeuvrability when
starting off and in city riding. The generous power of the GP 800’s
engine demands a superbly rigid chassis. Simulations and road tests
have demonstrated that the GP 800 has a coefficient of stability at
full power similar to a motorcycle and almost twice as high as a
conventional scooter.
What truly stands out in the stationary view of the GP 800 are the
new flexible coupling and the powerful swingarm now painted black to
embellish the vehicle and accentuate its lines. This impressive
component symbolises how the Piaggio Group has drawn on its
experience in motorcycle design in developing the amazing GP 800.
The swingarm is in cast aluminium and is secured directly to the
side plates of the frame. It is damped by suspension linkages that
are dominated by a horizontally mounted, lateral hydraulic monoshock
absorber, adjustable to seven different preload settings. Reduced
unsuspended mass and a generous 133 mm of rear wheel travel ensure
excellent suspension performance.
The front wheel fork, also in aluminium, is now black and has 41 mm
stanchions. Once again, stability and safety, even under harsh
braking, are at a level never previously found on any scooter.
The hollow five spoke wheels, 16” at the front and 15” at the rear,
are manufactured from aluminium alloy in a lost core, gravity
casting process to minimise unsuspended mass and guarantee
motorcycle-type precision handling. Overall performance is also
helped by standard equipment radial tyres, 120/70 at the front and
160/60 at the rear. |
|
|
The braking
system is fitted in the front with Brembo Gold Series double piston
floating callipers and two 300 mm semi-floating steel discs, now
gold in colour. In the rear, the double opposed piston floating
calliper interacts with a 280 mm steel disc, also in the new shade
of gold. The brake pipes are covered with metal plait. The
adjustable 4-position levers and new brake pumps are further proof
of the attention paid in designing the braking system. The GP
800 is even equipped with a parking brake operated by a practical
lever on the right of the leg shield.
GILERA STYLE
The Gilera GP 800 amazes even when stationary. It is a display of
power, matchless technology, technical and stylistic solutions that
(also) seem to aim at attracting admiring glances.
The body is totally innovative for a scooter. Alternating concave
and convex surfaces and a clever use of reflection confers a unique
sense of dynamism. The unique style of the GP800 and its aggressive
profile are accentuated by the new black paintwork of the plastic
panels, which previously were pigmented: This touch of sportiness
starts from the rear in the elegant shade of black, and decorates
the license plate holder and passenger grab handles. It is a
refinement of style that runs along the entire length of the
vehicle to invade the main tunnel and then go up to cover all of the
leg shield back plate.The lower part of the handlebar is now the
same colour as the vehicle, an embellishment that the rider will
totally enjoy.
Seen from the front, the GP 800 seems to divide the air and attack
the road. In contrast, the tail is streamlined and slender,
distinguished by graceful air vents and terminating in an original
double LED tail light with obvious sporting pretensions. |
|
The nose of the GP 800
is characterised by vertically twinned headlights, a solution chosen
to keep the front streamlined and narrow. The new smoke grey
windshield has been extensively tested in the wind tunnel and is
electrically adjustable from a handlebar switch to optimise
protection and air penetration to suit the riding conditions.The
bodywork welcomes and protects the rider who completes the symmetry
of the design when seated. The
GP 800 reveals its exclusive style in the care and attention
lavished on every little detail, in the very best Italian
traditions. Nothing is left to chance: from the exquisite sporty
design of the pressed aluminium handlebars and removable passenger
footrest platforms to the brand-new saddle upholstery materials,
which now takes in the new, extremely comfortable stabilus, a
saddle support system that makes it easier to open the saddle and
give it stability after it is lifted; the reduced difference in
height between the rider and passenger's portions increases riding
comfort and vehicle control when riding in two. The Gilera GP 800
has made a change with new enhancements under the seat: the new
shiny steel fueltank cap is more elegant and modern; also the mat
lining the bottom of the spacious helmet compartment, which can hold
a flip up helmet, is new, making its cleaning simpler and more
practical while protecting the objects stored inside.
The GP 800’s dashboard, which combines analogue and digital
instruments, is generous and elegant, as a scooter of this class
demands. The easy to read, classical rev counter and speedometer are
accompanied by a fuel gauge. The LCD display incorporates a total
odometer, two trip counters and a clock, and displays outside
temperature, distance travelled on reserve, a service LED and an
engine coolant temperature gauge. Information on the LCD display can
be selected quickly and easily from a mode button behind the right
hand control block.
Completing the instrument panel is a set of warning lights for the
following functions: turn indicators, oil pressure, fuel reserve,
high beam lights, injection check, hazard light and parking brake
engaged. A LED in the middle of the speedometer flashes when the
electronic antitheft system with engine immobilizer is engaged. |
|
Engine |
90°
longitudinal V-twin, 4 stroke. |
Engine
capacity |
839.3 cc. |
Bore |
88
mm. |
Stroke |
69
mm. |
Compression
ratio |
10.5 : 1. |
Max power at
driveshaft |
75 hp (55.16 kW) at 7,750
rpm |
Max torque |
73 Nm at 5,750 rpm |
Exhaust |
Closed loop system with Lambda probe and three-way catalytic
converter. |
Timing system |
SOHC (single overhead camshaft), 4 valves, electronic fuel
injection. |
Ignition |
Electronic inductive discharge ignition, variable timing. Electronic
control unit with engine immobiliser and warning LED. Automatic fuel
shutoff in case of tip-over. Twin spark ignition. |
Starter |
Electric. |
Cooling |
Liquid with three-way thermostat. |
Gears |
Belt primary drive. CVT (continuously variable
transmission) with engine braking effect.
Chain final
drive. |
Clutch |
Centrifugal clutch. |
Frame |
Double cradle, high strength tubular steel trellis. |
Front
suspension |
41 mm aluminium alloy telescopic hydraulic fork; 122 mm wheel
travel. |
Rear
suspension |
Aluminium alloy swingarm with laterally mounted,
horizontal, hydraulic monoshock.
Seven-position
spring preload adjustment.
130
mm
vertical wheel travel |
Front brake |
Double, 300 mm semi-floating stainless steel discs with two Brembo
double piston floating callipers. |
Rear brake |
280 mm stainless steel disc; floating calliper with two opposing
pistons. |
Front wheel rim |
Die-cast aluminium
alloy, 3.50x16”. |
Rear wheel rim |
Die-cast aluminium
alloy, 4.50x15”. |
Front tyre |
|
Rear tyre |
Tubeless radial, 160/60 R 15”. |
Length |
|
Width |
800 mm. |
Wheelbase |
1,585 mm |
Seat height |
780 mm
|
Fuel tank capacity
|
18.5 litres (including 3
litre reserve). |
Max speed |
Approx. 200 km/h |
Emissions
|
Euro 3 |
Max angle of lean
(rider only) |
45° |
(0 – 100 km/h) |
5.7 sec |
|
|
